AF16L 22mm Buzzer
22mm illuminated or non-illuminated buzzer,
Features
Compact modern design
IP40 or IP65 front protection
Easy to mount
Continuous or intermittent tone
Reliable and proven technology

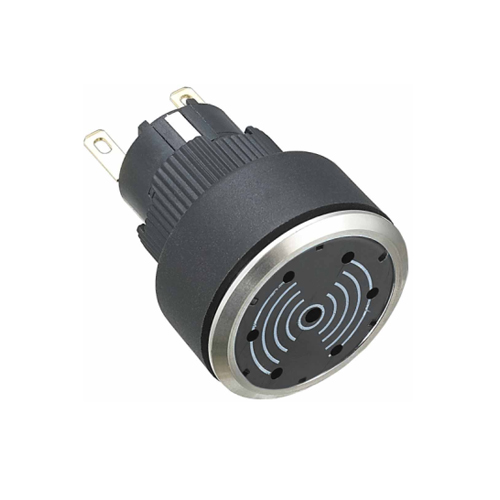

图1

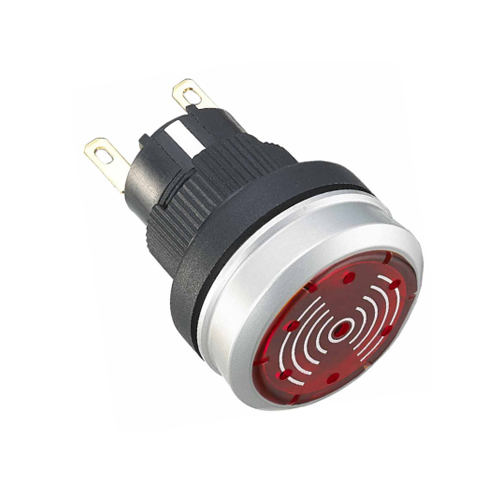

图2
Model specifications

Specifications

Rated Insulation Voltage30V DC
Rated Operating Voltage12V DC±10%、24 DC±10%
Current Draw40mA
Insulation Resistance≥100 MΩ
Sound Pressure(at0.1m)Steady sound:80dB minium(at the rated voltage)
Operating Temperature-25℃~+55℃（no freezing）
Storage Temperature-40℃~+70℃（no freezing）
Operating Humdidty40~85%RH （no condensation)

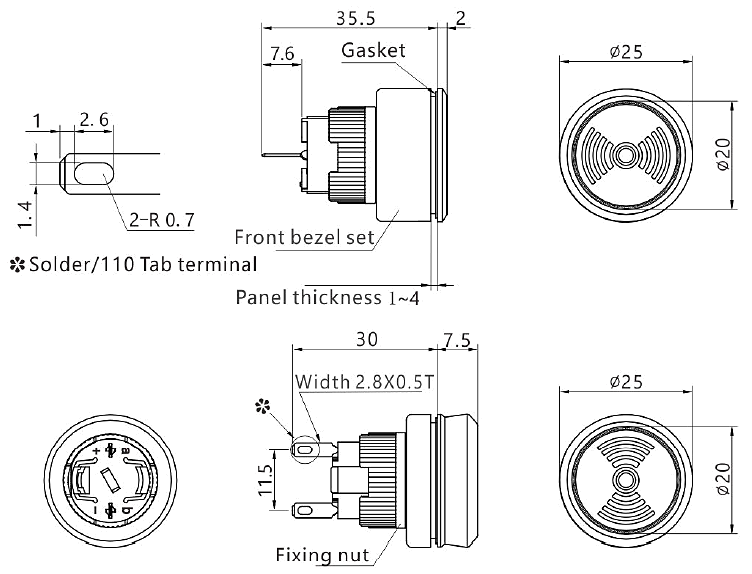

Dimensional drawing
AF16L 22mm
Download
File name File type Update Date
AF16L Buzzer .PDF 12/30/2024 Download(605.88 KB)
