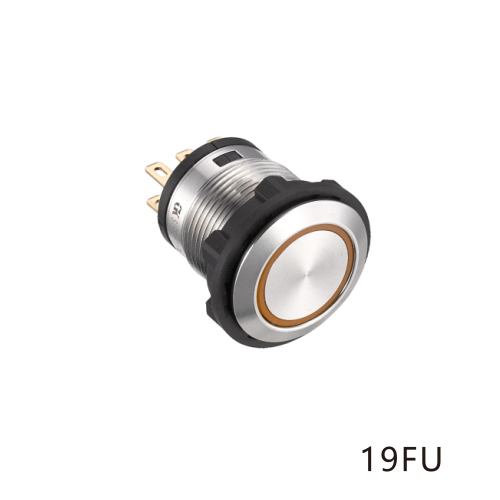

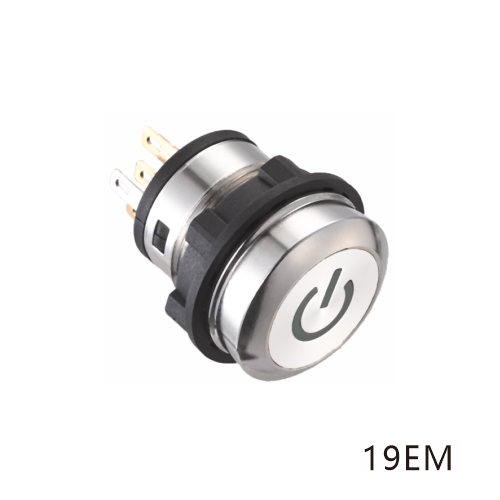

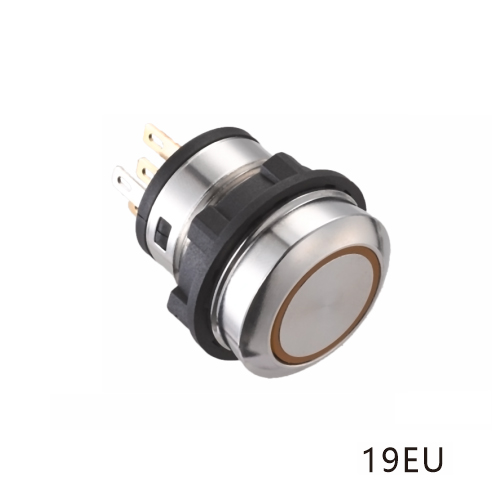

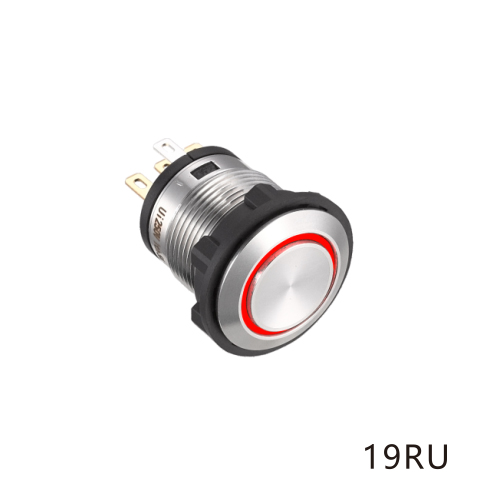

S19 vandal resistant Illuminated pushbutton llluminated Pushbutton

Φ19mm vandal resistant Illuminated pushbutton, compact design, Combine rugged and style.

Features

● φ19mm
● Front Bezel: Flat、 Flat/ Exten、 Raised
● Illuminated style: Lens; Ring; Standby
● Action: Momentary; Maintained
● Terminal: Solder/ Plug-in 2.8*0.5
● Gold contacts available for low-level
● applications
● Customised markings
● IP67
● IEC/EN60947-5-1,
IEC/EN60073,IEC/EC60529

Model specifications

Product type	Function	Illuminated Pushbuttons
Product type	Series	S19
Front	Style	Flush,Rasied,Flush/extended
Front	From	Round
Mounting	Dimension	Φ19mm
Mounting	Type	Panel mounting
Operating /LED part	Lens colors	Red\green\yellow\blue\white\Amber
	Illumination Colors	Red\Green\Yellow\Blue\White\Amber
	Illumination voltage	6VACDC\12VACDC\24VACDC\48VACDC 110VACDC\220VACDC
Switch Type	Switching action	Momentary/Maintained
	Contacts	1NO+1NC,2NO+2NC
	Terminal	Soldering/Tab terminal #110
Other	Protection degree	IP67
Other	Complete Device/Components	Complete Device

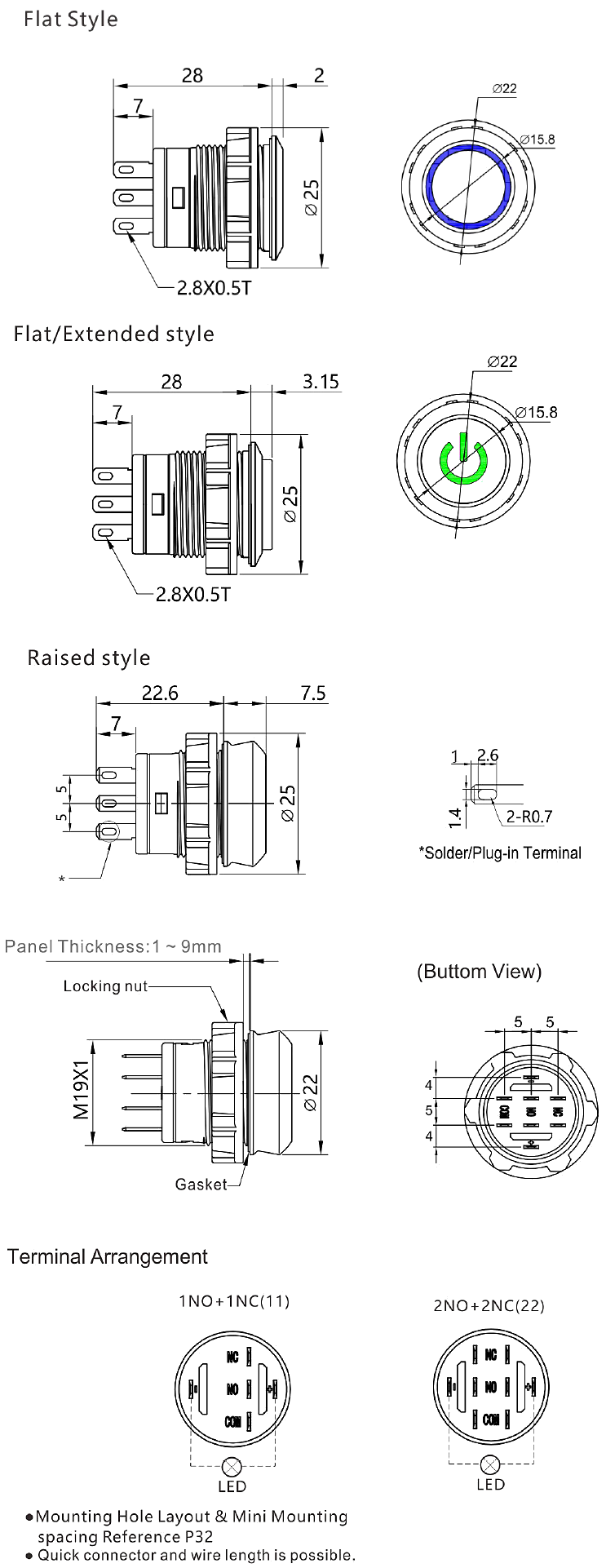

Dimensional drawing

S19 vandal resistant Illuminated pushbutton

Download

File name	File type	Update Date
S19 llluminated Pushbutton	.PDF	01/04/2025	Download(1.1 MB)
