AF16S Selector switches
Selector switches are mechnical switches that can be turned right,center or left to open to close the electric. They are mostly used to start/stop devices or switch between two/three electric circuits.
Features
● 2-position and 3-position selector switches. Maintained and spring return available
● Removable contact blocks, with up to 3PDT contacts
● 3 operator shapes: round, square or rectangular
● Solder tab compatible with 110# quick disconnects
● Degree of protection: IP40; IP65
Applications
Machinery
Automation
Medical
Control panel

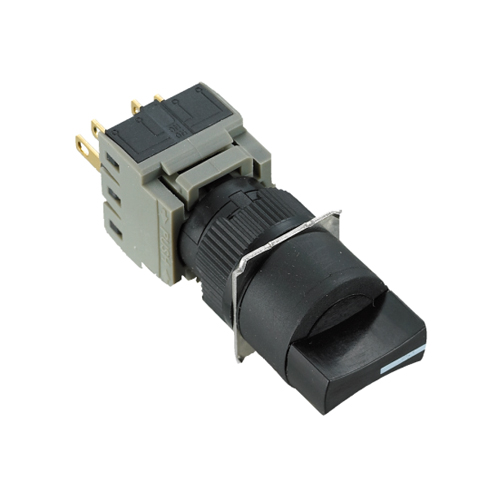

图1
图2

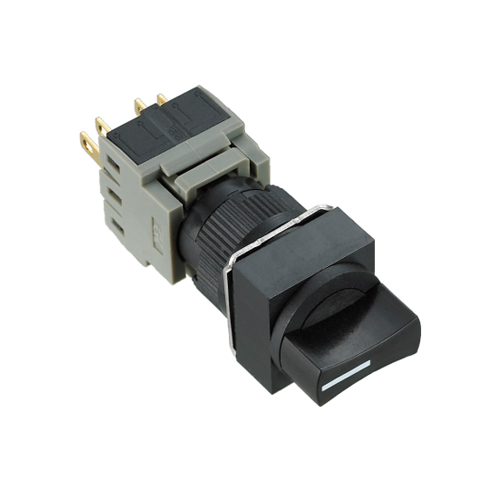

图3
Model specifications

Product type

Function

Non-Illuminated Pushbuttons

Series

AF16S

Front

Style

Raised

From

Round/squre/rectangular

Mounting

Dimension

Φ16mm

Type

Panel mounting

Operating part

Operating parts colors

black

Illumination

Non-Illuminated

Switch Type

Switching action

Momentary/Maintained

Switching positions2 positions/3positions
Contacts

1NO+1NC,2NO+2NC,3NO+3NC

Terminal

Solder tab compatible with 110# quick disconnects

Other

Protection degreen

IP40,IP65,IP67

Complete Device/Components

Complete Device

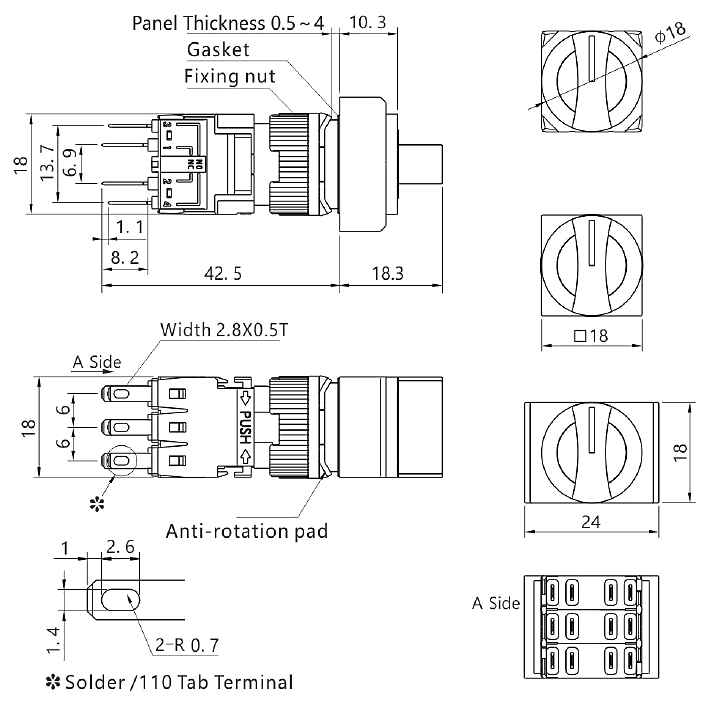

Dimensional drawing
AF16S
Download
File name File type Update Date
AF16S Selector switches .PDF 12/30/2024 Download(727.9 KB)
