S19 vandal resistant E-stop switches Emergency Stop Switches

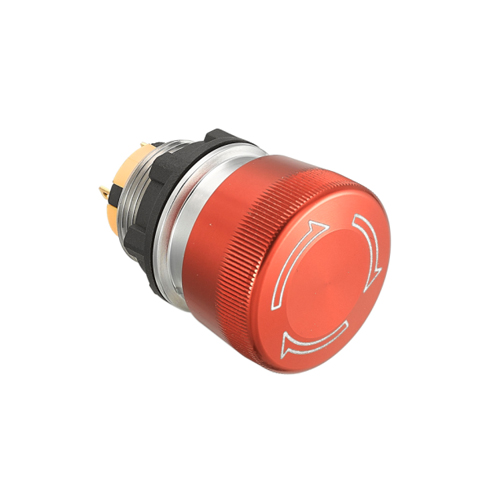

Φ19mm vandal resistant Emergency stop switches, compact design.
Features
● Very low back panel depth(21.2mm)
● Vandal resistant: Impact-resistant
● IK10, Front protection up to IP67
● Safety lock mechanism
● Direct opening action

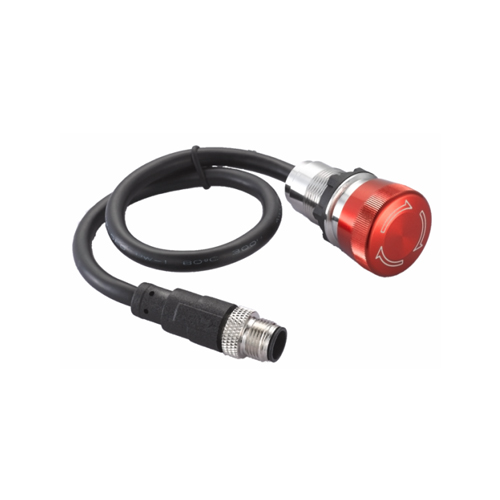

● Optional M12 connection
● TUV CE RoHS
1
2
Model specifications

Product type

Function

Emergency switches

Series

S19

Front

Style

Mushroom-head

From

Round

Mounting

Dimension

Φ19mm

Type

Panel mounting

Operating part

Color

Red

Material

Aluminum anodize

Switch Type

Switching action

Maintained

Release type
Twist to unlock

Contacts

1NO+1NC,2NC

Terminal

Soldering/Tab terminal #110

Other

Protection   degreen

IP65

Complete Device/Components

Complete evice

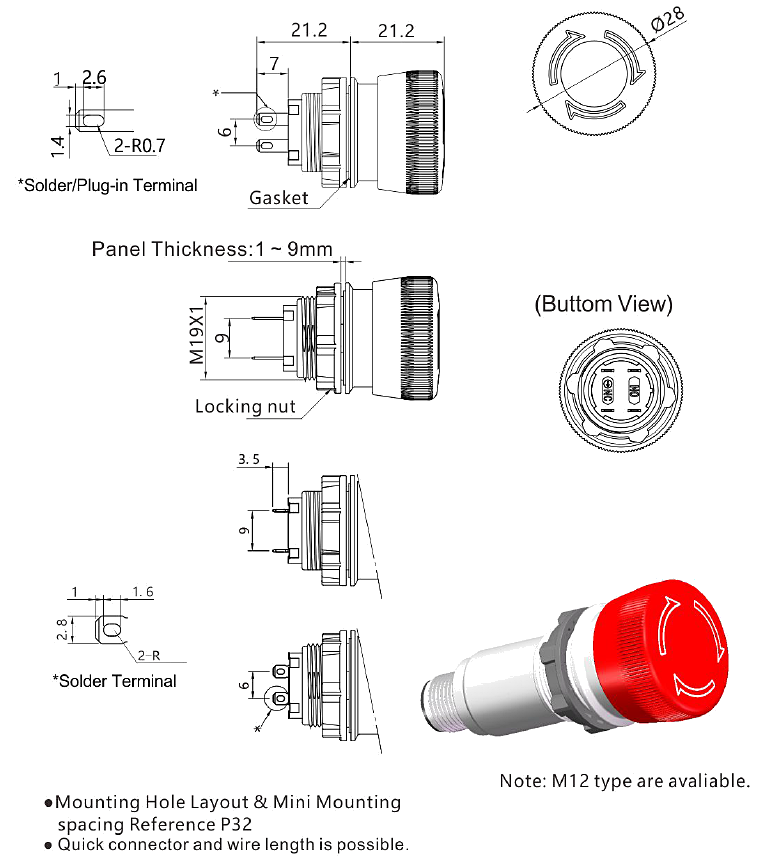

Dimensional drawing
S19 vandal resistant E-stop switches
Download
File name File type Update Date
S19 Emergency Stop Switches .PDF 01/04/2025 Download(649.87 KB)
