AF16S Buzzer
AF16S series Buzzer, an electric signaling device that makes a buzzing sound,The combination of buzzer and indicator lamp functions, waterproof specification can be used in places where water is splashed.
Advantages
Compact design, Easy to mount
Illumination optional
continuous or intermittent tone
High sound pressure
Very long service life for electrical and audio components


Features
●Round ,square, rectangular optain sharp
● Available in 5V,12V,24VACDC
● Solder tab compatible with 110# quick disconnects
● Degree of protection: IP40
Application
Automation
Machinery

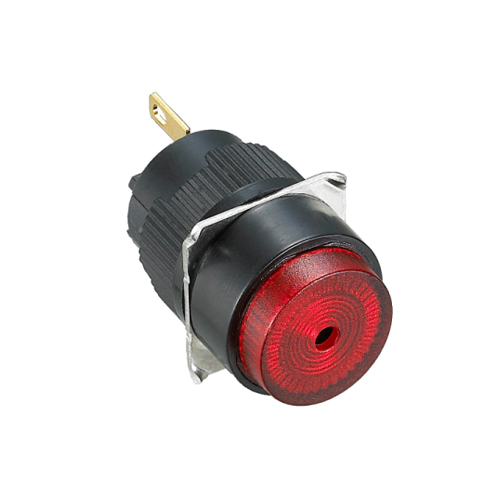

图1

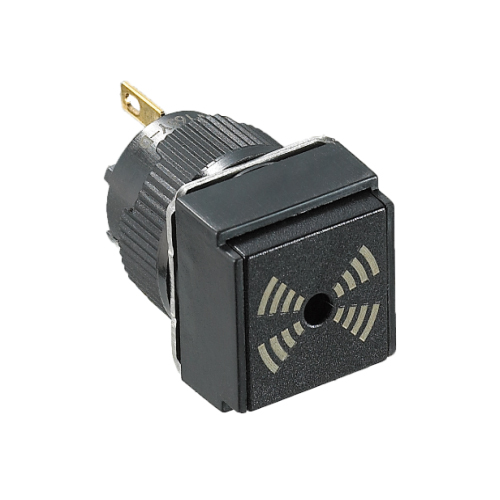

图2

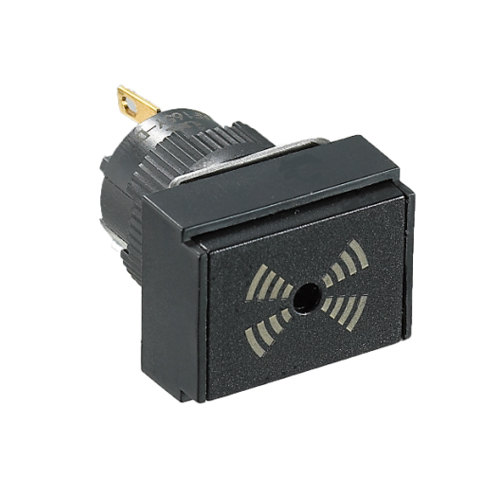

图3
Model specifications

Product type

Function

Buzzer, Illuminated Buzzers

Series

AF16S

Front

Style

Raised

From

Round/squre/rectangular

Mounting

Dimension

Φ16mm

Type

Panel mounting

Operating /LED part

LENS colors

Black or Red

Illumination Colors

Red

Illumination voltage

6VACDC\12VACDC\24VACDC

Other

Terminal

Soldering terminal

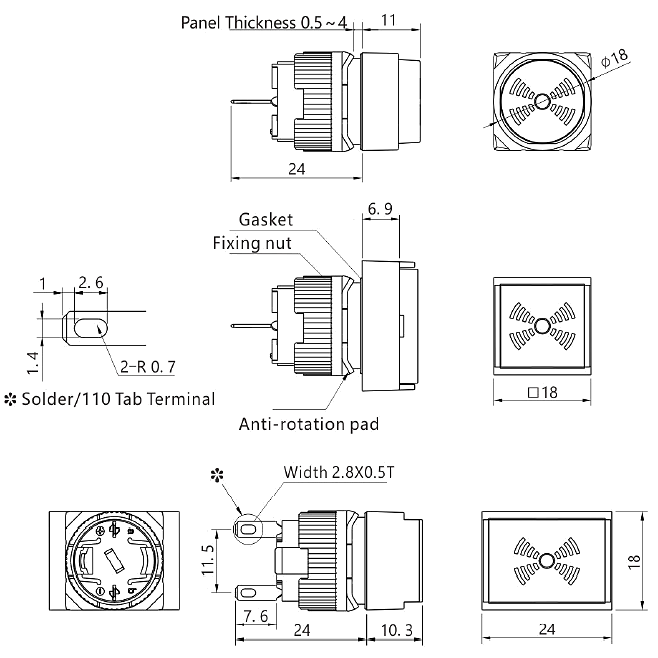

Dimensional drawing
AF16S
Download
File name File type Update Date
AF16S Buzzer .PDF 12/30/2024 Download(655.32 KB)
