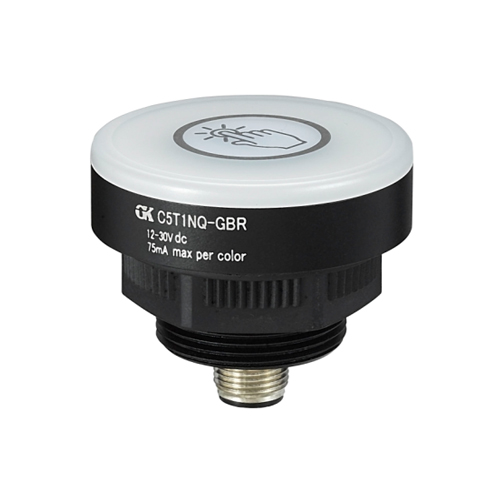

CF5T Touch switches llluiminated touch button and pick-to-light
CF5T Touch swithes, is consists of Φ50mm lighting and touch zone. come in a variety of options for lighting and touch functions.Touch buttons can be actuated with no force, just contact with the surface.
Features
● Simple operation with the touch of a finger
● Input/ output indenpented Output Model NO or NC available
● Inputs/ outputs PNP or NPN available,one-, two-and three-color models available to solve a variety of applications
● Can be actuated with bare hands or gloves
● Cabled and Quick disconnect models available
● Ideal for use in abusive environments, featuring rugged, fully encapsulated construction.
1
Model specifications

Rated voltage

24VDC

Supply Current

<35mA Max.

Supply/ output protection Circuitry

Protected against reverse polarity voltages

output Rating

Max. load:150mA,
ON-state  saturation voltage:<2V dc at 10mA Off-state leakage current<

Output response Time

150 milliseconds  on and off

Power-up Delay

300 milliseconds

construction

Hosing: Aluminum(Anodizing black)
Translucent dome:PC
Mounting nut:PA

Connections

M12 quick  connection or Cable 1.5M

Mounting

M22×1 Threaded  base, Max torque 2 N·m

Operating Conditions

-25℃~+55℃;   Humidity:85% RH(no condensation)

Storage Temperature

-40℃~+70℃ (no  freezing)

Vibration and Mechanical Shock

All models meet IEC60947-5-2;

Environmental Rating

IEC IP67,IP69K per DIN 40050-9

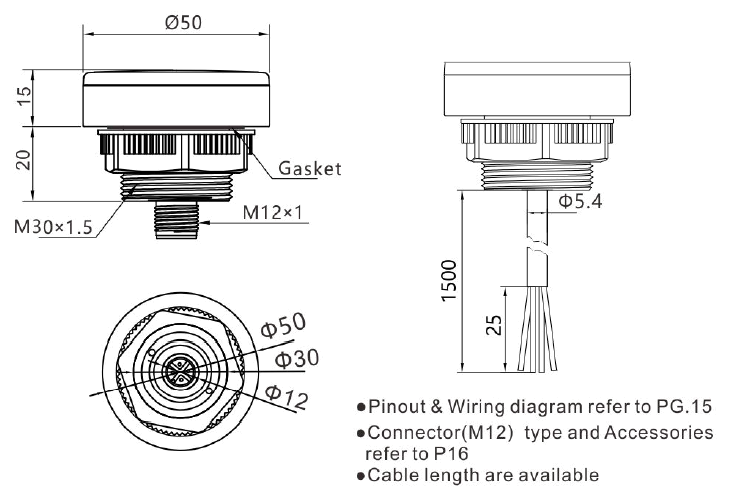

Dimensional drawing
CF5T Touch switches
Download
File name File type Update Date
C5T llluiminated touch button and pick-to-light .PDF 12/30/2024 Download(684.46 KB)
