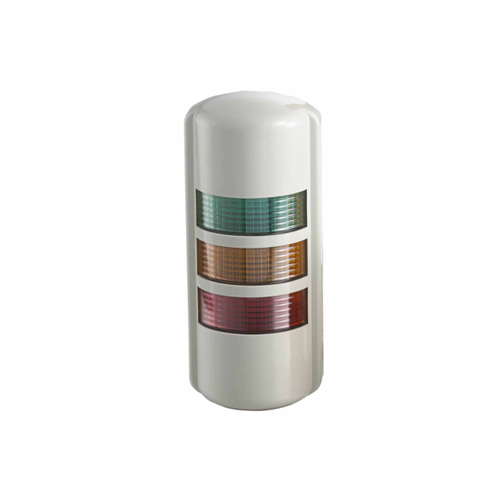

HB9 wall mounting semicircular LED Signal Light
HB9V Signal light are wall mounting semicircular signal light Φ90mm
Features
● Ultra high brightness LED
● 46mm thick, slim product offers seamless integration with the equipments
● Optional built-in Buzzer
● IP65
1
Model specifications

Outline Size

90mm

Input Voltage

12VAC/DC;24VAC/DC;110V    AC;220V AC

Function

Brightness\ Buzzer

Material

Lens-PC, Bodu-ABS

LED Modular

Lens-PC, Bodu-ABS

LED Modular Color

Red, Yellow, Green

Work Temperature

-15℃~+40℃ (No Freezing)

Store Temperature

-20℃~+70℃ (No Freezing)

Humidity

40~85%RH (No Condensation)

Vibration resistance

10~55Hz, Amplitude 0.75mm

Installation category

Ⅲ

Protection class

IP65

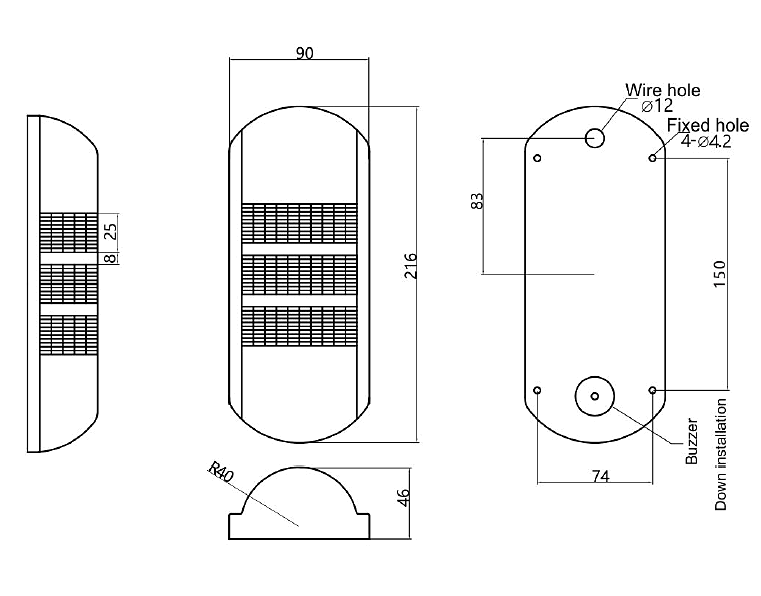

Dimensional drawing
HB9 wall mounting semicircular
Download
File name File type Update Date
HB9 90mm Wall Mounting Semicircular LED Signal Lights .PDF 12/30/2024 Download(539.06 KB)
