PBH-22 Emergency stop switches Emergency Stop switch/Key-rest Emergency Stop Switch

Features

● φ22mm
● Front bezel (Aluminium): standard, circular
● Holder : Metal, Plastic, Nut

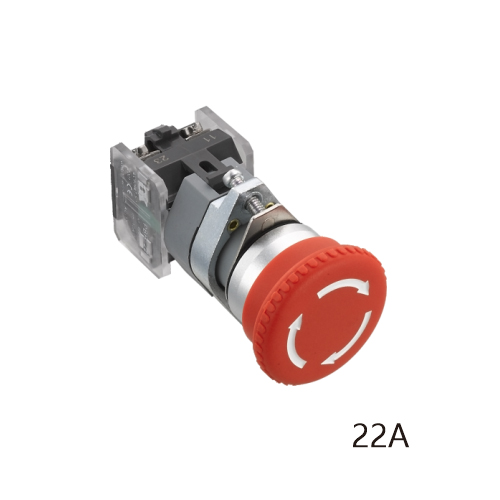

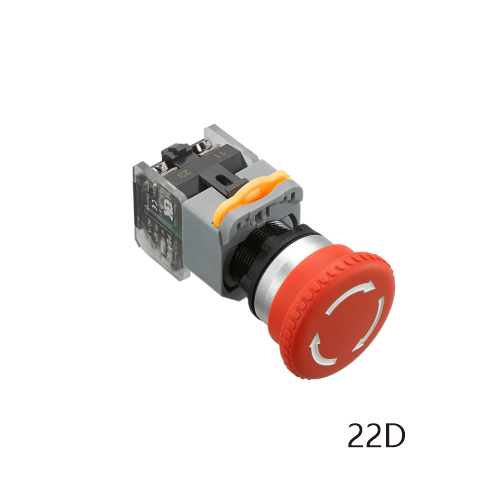

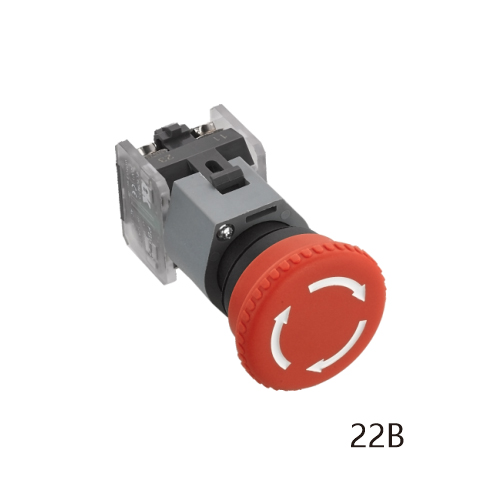

● Push to lock, turn clockwise to reset

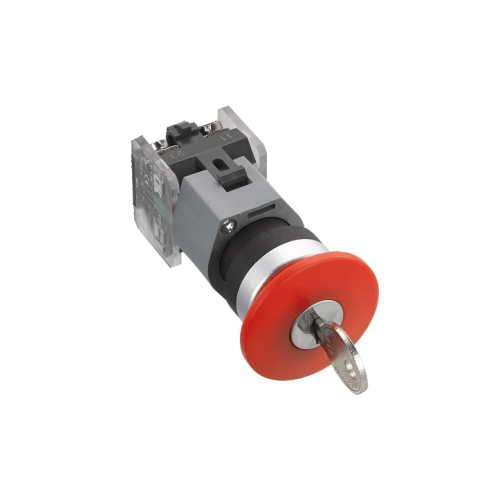

● Push to lock, unlock by turning the key
● φ40mm Mushroom shape
● IEC/EN60947-5-1,UL 508,IEC/EN 60073,IEC/EN60529

Model specifications

Product type	Function	Emergency swithes/key-rest Emergency stop switches
Product type	Series	PBH-22
Front	Style	Rasied
Front	From	Round
Mounting	Dimension	Φ22mm
Mounting	Type	Panel mounting
Operating /LED part	Lens colors	Red
Operating /LED part	Illumination shape	Mushroom-head
Switch Type	Switching action	Maintained
	Release type	Push to lock, turn to reset, Push to lock, unlock by turning the key
	Contacts	1NO+1NC,2NO+2NC,3NO+3NC
	Terminal	screw terminal
Other	Protection degree	IP54
Other	Complete Device/Components	Complete Device

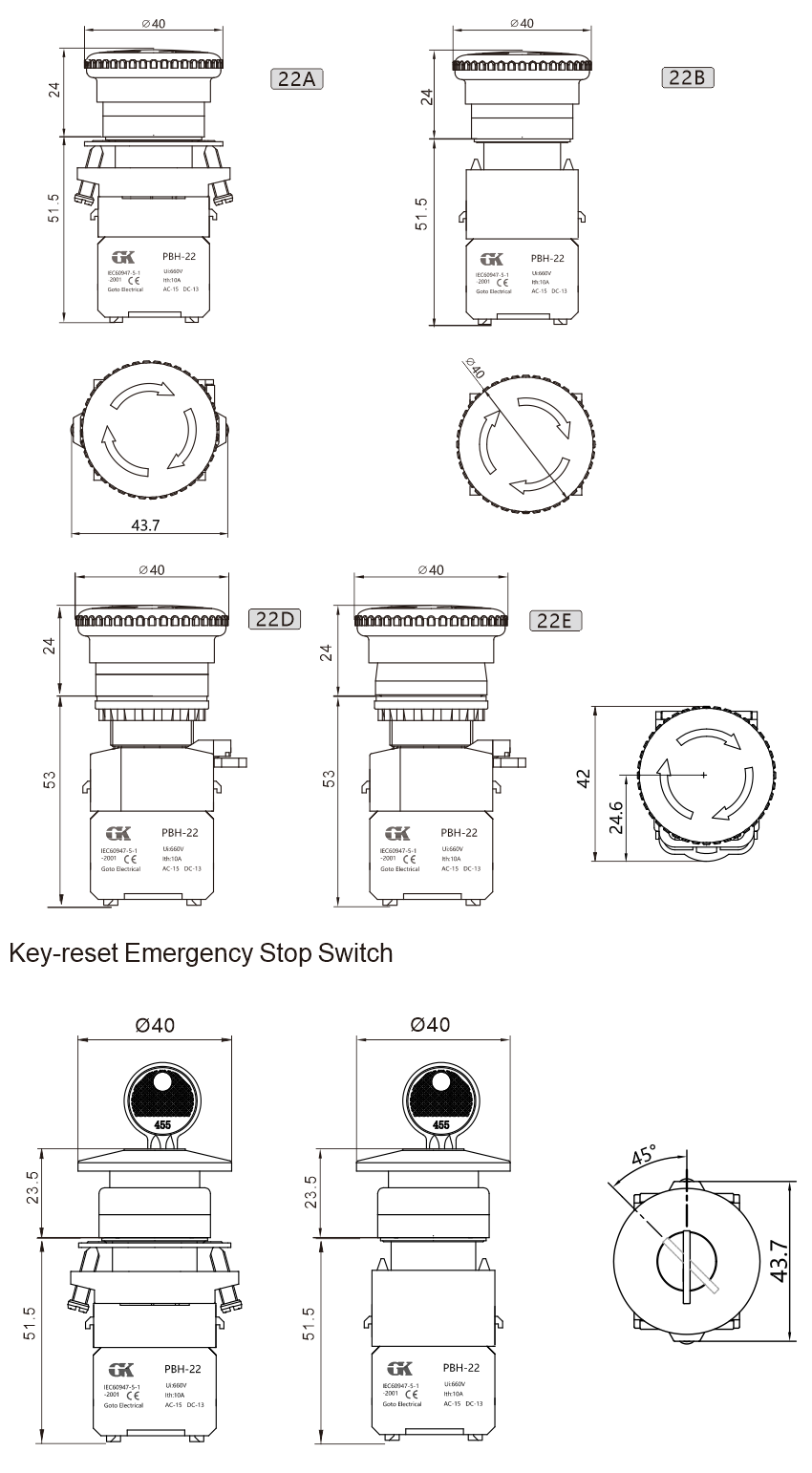

Dimensional drawing

Download

File name	File type	Update Date
Type PBH Emergency Stop switchKey-rest Emergency Stop Switch	.PDF	01/07/2025	Download(597.56 KB)
