AF16S stop switches
Stop switches are particularly suitable for use as on/off switches worldwide in mobile control units as well as in apparatus and mechanical engineering.
Fearture
● Removable contact blocks, with up to 3PDT contacts
● Optional illumination and warning ring
● Solder tab compatible with 110# quick disconnects
● Degree of protection: IP40; IP65
Application
Automation
Machinery
Consumer Applications

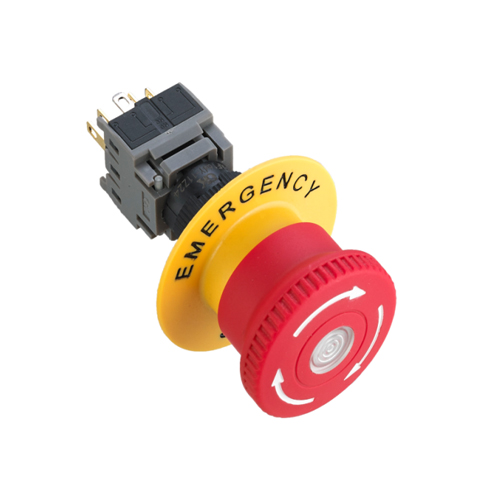

图1

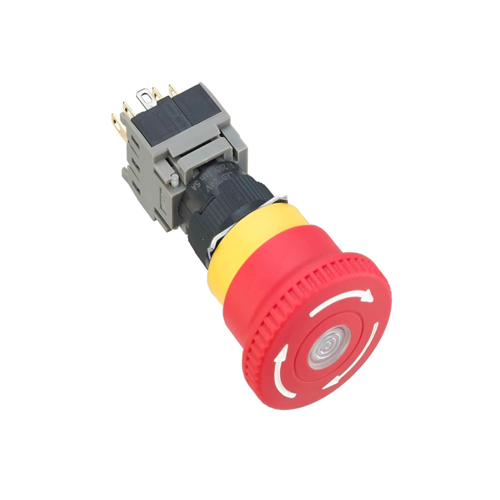

图2
Model specifications

Product type

Function

Stop switches

Series

AF16S

Front

Style

Mushroom-head

From

Rasied

Mounting

Dimension

Φ16mm

Type

Panel mounting

Operating part

Lens colors

Red

Illumination

Non-Illuminated

Switch Type

Switching action

Maintained

Release type
Twist to unlock clockwise

Contacts

1NO+1NC,2NO+2NC,3NO+3NC

Terminal

Soldering/Tab terminal #110

Other

Protection   degreen

IP40

Complete Device/Components

Complete evice

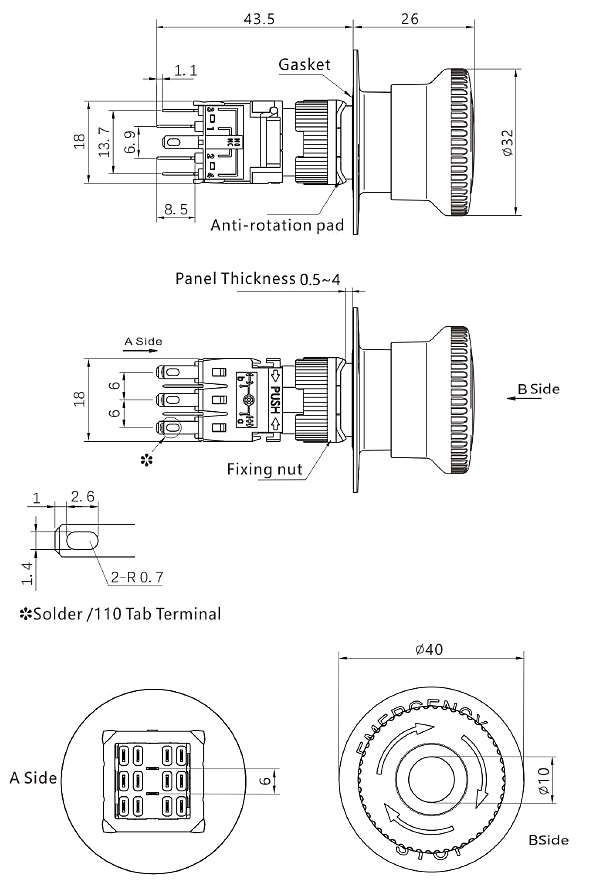

Dimensional drawing
AF16S
Download
File name File type Update Date
AF16 catalogue2023 .PDF 07/05/2025 Download(18.01 MB)
