C5 indicator sound alarms lndicator Sound alarms
Φ50mm domed light with buzzer, are optional audible alarm provides a distinct, lound notification of status.
Features
● ∅50mm diameter sound alarms model
● Built-in Buzzer, optional 85dB,
● Three colors in one device and five colors to choose from
● Translucent ivory Lens, eliminating false indication from ambient light when off
● Cabled and quick-disconnect model available
● Buzzer depending type or control type
● Models rated to IP67 and IP69K for use in harsh environments
1
Model specifications

Mounting Hole Diameter

φ30mm

Input Voltage

12VAC/DC ;24VAC/DC

Functions

Constant\ flashing\ Buzzer

Material

Base: Aluminium(anodized), Lens: PC,  Nut-PA66

Output

NPN/PNP

Connection

M12 connector(Additional cable)/1.5M cable

Operating Temperature

-25℃+55℃ No Freezing

Storage Temperature

-40℃+70℃ No Freezing

Storage Temperature

40~85%RH No condensation

Vibration Resistance

10~55Hz, Amplitude 0.75mm

Installation Category

Direct Mounting

Rod Mounting

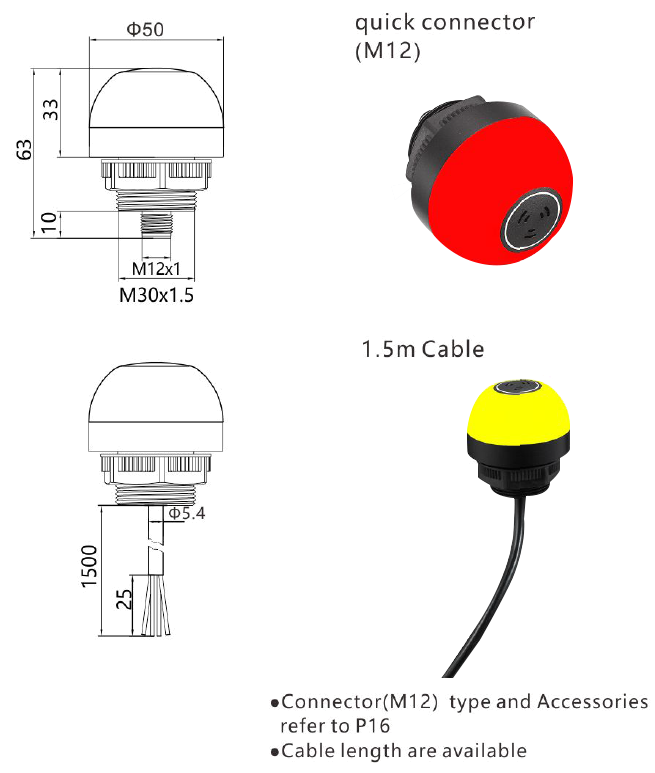

Dimensional drawing
C5 indicator sound alarms
Download
File name File type Update Date
C5 lndicator Sound alarms .PDF 12/30/2024 Download(575.52 KB)
