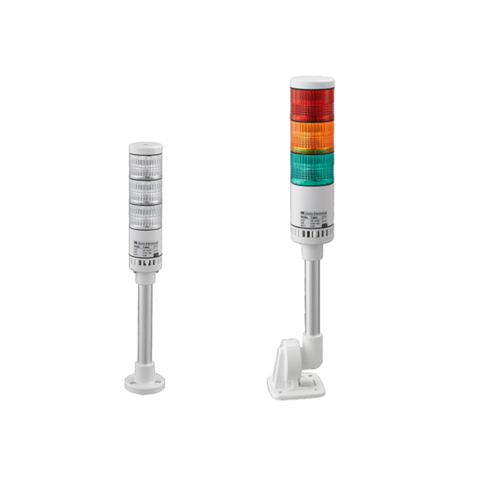

TLM4S signal light Signal Tower Light
TLM4S series are Φ40mm signal tower light, which are realize that the LED units and Sound unis can be combined freely.
Features
● Small size designs. suitable for various of small and medium precision equipment.
● Modular design and simple wiring for fast field configuration also available
● Built-in Buzzer, optional 85dB at 1m
● Available in of black housing
● Available in transparent Lens
● IP66 water and dust resistance
● NPN/PNP open-collector
1
Model specifications

Outline Size

φ40mm

Input Voltage

12VAC/DC;24VAC/DC;110V    AC;220VAC

Function Available

Steady, Flashing, Buzzer

Material

Lens-PC, Cover/ Body-ABS/PC

LED Unit Tiers

5 tiers

LED Unit Color

Red, Green, Yellow, Blue, White

Work Temperature

-15℃~+40℃ (No  Freezing)

Store Temperature

-20℃~+70℃ (No  Freezing)

Humidity

40~85%RH (No  condensation)

Vibration resistance

10 ~55Hz,  Amplitude 0.75mm

Installation category

Direct Mount:3-point hole mounting

Pole mount:L-bracket; circular bracket;  folding bracket

Protection class

IP67

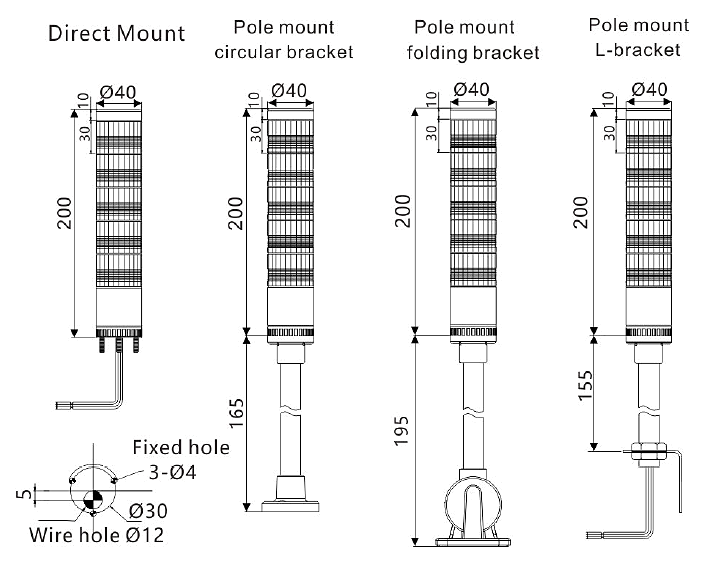

Dimensional drawing
TLM4S signal light
Download
File name File type Update Date
TLMS φ40mm Signal Tower Light .PDF 12/30/2024 Download(718.42 KB)
