AF16B flush type Pushbutons
AF16B Flush type,Combination type, maintenance wiring operation is simple.reasonable structure, minature size, full varieties.Standard type is suitable for all kinds of CNC control panel.
Advantages
●Flush design, removable contact blocks ideal for single board mounting
●Separate contacts with a locking lever enable easy installation even when mounted collectively.
● Large selection of lenses in different colors
●Excellent tactile feedback
●Wide variety of symbols and markings, including customer-specific options

Features
● Removable contact blocks, with up to 3PDT contacts
● 3 operator shapes: round, square or rectangular
● 7 Lens colors available in Red, Green,Yellow,Blue,White,Amber,Black
● Solder tab compatible with 110# quick disconnects
● Degree of protection: IP40; IP65
Applications
● Medical and lab equipment
● Instrumentation
● Semiconductor

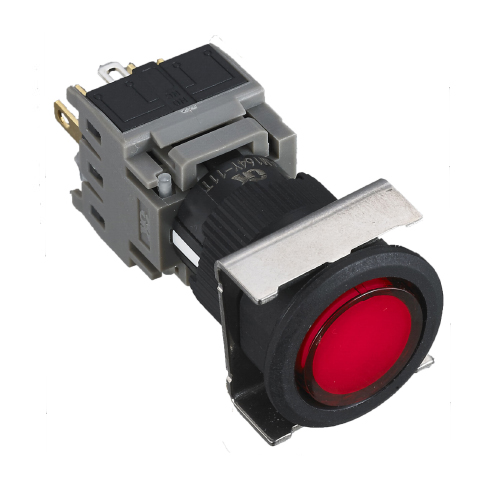

YB

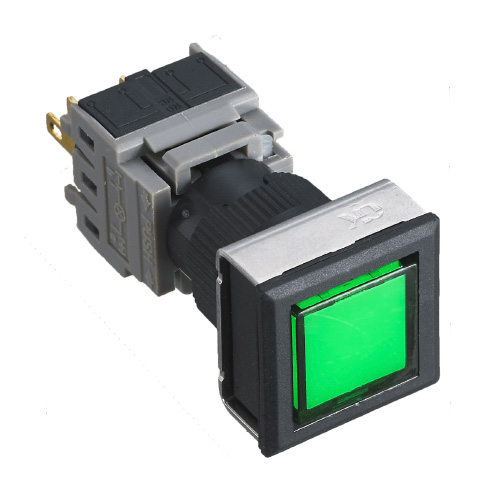

FB

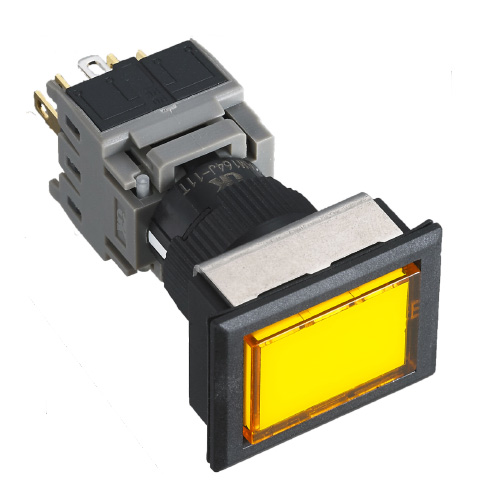

JB
Model specifications

Product type

Function

Non-Illuminated Pushbuttons

Series

AF16B

Front

Style

Flush

From

Round/Squre/Rectangular

Mounting

Dimension

Φ16mm

Type

Panel mounting

Operating part

Lens colors

Red\green\yellow\blue\white\Amber\black

Illumination

Non-Illuminated

Switch Type

Switching action

Momentary/Maintained

Contacts

1NO+NO,2NO+2NC,3NO+3NC

Terminal

Soldering /Tab terminal #110

Other

Protection degreen

IP67

Complete Device/Components

Complete Device

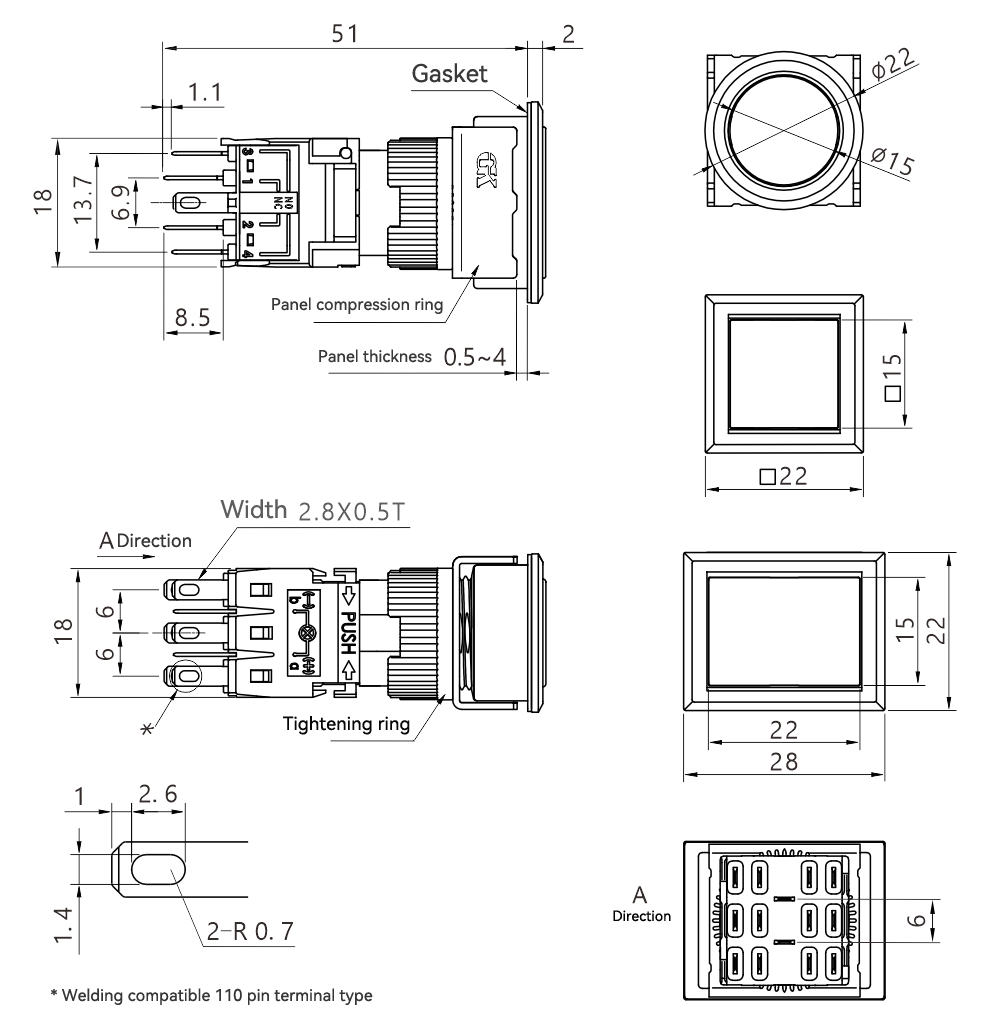

Dimensional drawing
AF16B flush type
Download
File name File type Update Date
AF16B .PDF 07/20/2025 Download(4.02 MB)
