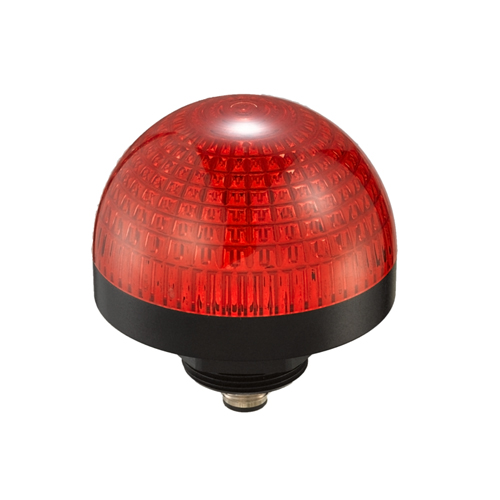

C7 Domed signal light Domed Signal light Φ70mm
Φ70mm Signal light multicolor Domed
Features
● Frosted lens displays evenly distributed light for unambiguous indication
● Illuminated dom e provides easy to see operator guidance
● All models have flashing input control
● Easy to install and configure
● Models rated to IP67 and IP69K for use in harsh environments
1
技术参数

Mounting Hole Diameter

φ70mm

Input Voltage

12VAC/DC ;24VAC/DC

Functions

Constant\ flashing

Material

Base: Aluminium(anodized), Lens: PC,  Nut-PA66

Output

NPN/PNP

Connection

M12 connector(Additional cable)

Operating Temperature

-25℃+55℃ No Freezing

Storage Temperature

-40℃+70℃ No Freezing

Storage Temperature

40~85%RH No condensation

Vibration Resistance

10~55Hz, Amplitude 0.75mm

Installation Category

Direct Mounting

Rod Mounting

产品尺寸
C7 Domed signal light
资料文件
文件名称 类型 发布时间
C7 φ70mm Domed Signal Beacon .PDF 12/30/2024 下载(568.77 KB)
