AF16B flush type Selector switches
AF16B flush Mount selector switches,which only 2mm in fromt of the panel , flush mount switches offer a streamlined package, perfect for application requirying a hygienic surface
Features
● 2-position and 3-position selector switches. Maintained and spring return available
● Removable contact blocks, with up to 3PDT contacts
● 3 operator shapes: round, square or rectangular
● Solder tab compatible with 110# quick disconnects
● Degree of protection: IP40; IP65;IP67
Application
Panel building
Machinery

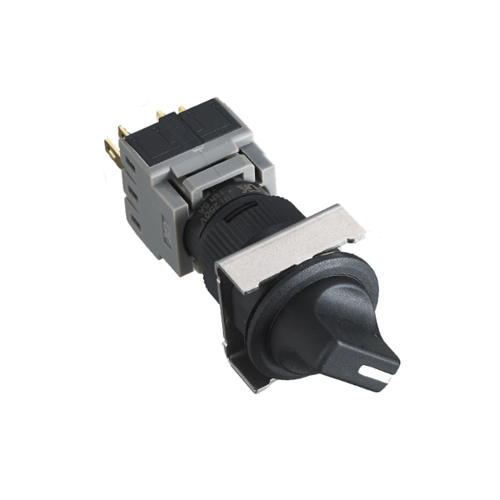

图1

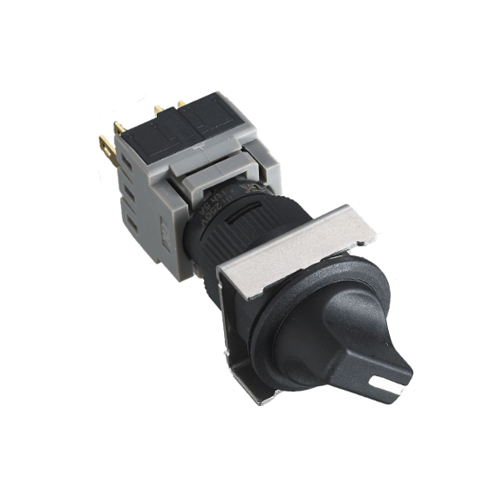

图2

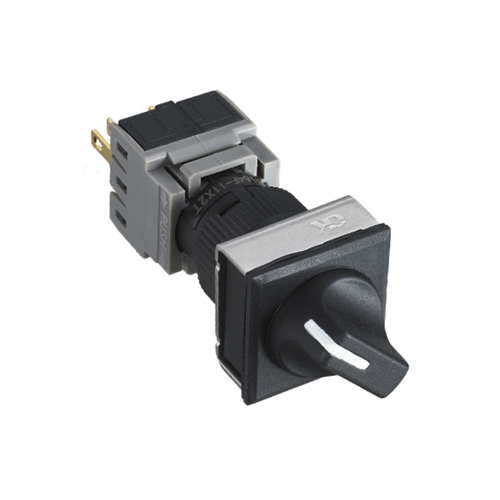

图3
技术参数

Product type

Function

Selector switches

Series

AF16B

Front

Style

Flush

From

Round/squre/rectangular

Mounting

Dimension

Φ19mm /19mmX19mm /19mmX24mm

Type

Panel mounting

Operating part

Lever color

black

Illumination

Non-Illuminated

Switch Type

Switching action

Momentary/Maintained

Switching positions2 positions\3 positions

Contacts

1NO+1NC,2NO+2NC,3NO+3NC

Terminal

Soldering terminal

Other

Protection degreen

IP67

Complete Device/Components

Complete Device

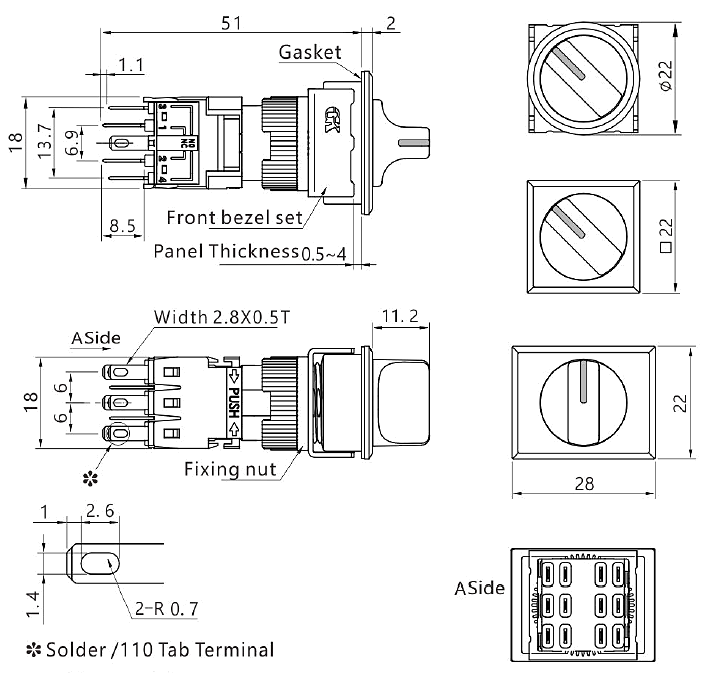

产品尺寸
AF16B flush type
资料文件
文件名称 类型 发布时间
AF16B Selector switches .PDF 12/30/2024 下载(747.38 KB)
