AF16L larger operation LED Indicators
AF16L indicators with Flush or extended lenses, Bright and clear LED illumination
Features
● Large selection of lenes in different forms
● 6 LED illuminated colors available, bright and clear LED illuminated face
● 2operator shapes, flush and Extend with stainless steel (304) bezels
● Solder tab compatible with 110# quick disconnects
● wide variety of symbols and marking, including customer-specific options

Application
Machinery
Automation
Medical
Control panel

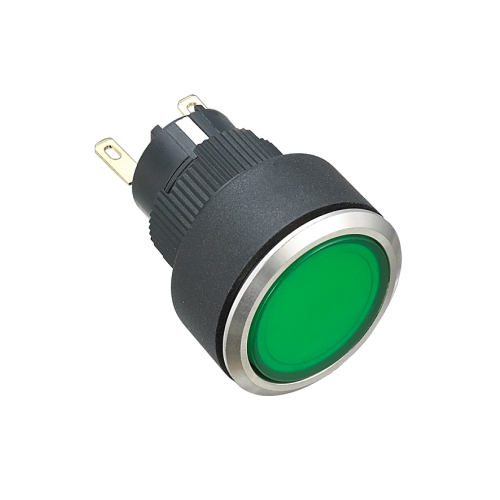

图1

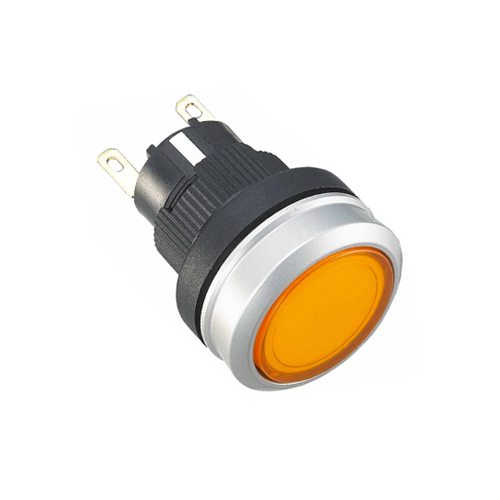

图2
技术参数

Product type

Function

Indicator lamp

Series

AF16L

Front

Style

Flush/Raised

From

Round/squre/rectangular

Mounting

Dimension

Φ22mm

Type

Panel mounting

Operating /LED part

Lens colors

Red\green\yellow\blue\white\Amber

Illumination Colors

Red\Green\Yellow\Blue\White\Amber

Illumination voltage

6VACDC\12VACDC\24VACDC\48VACDC

110VACDC\220VACDC

Other

Terminal

Soldering terminal

Protection degree

IP67

Complete Device/Components

Complete Device

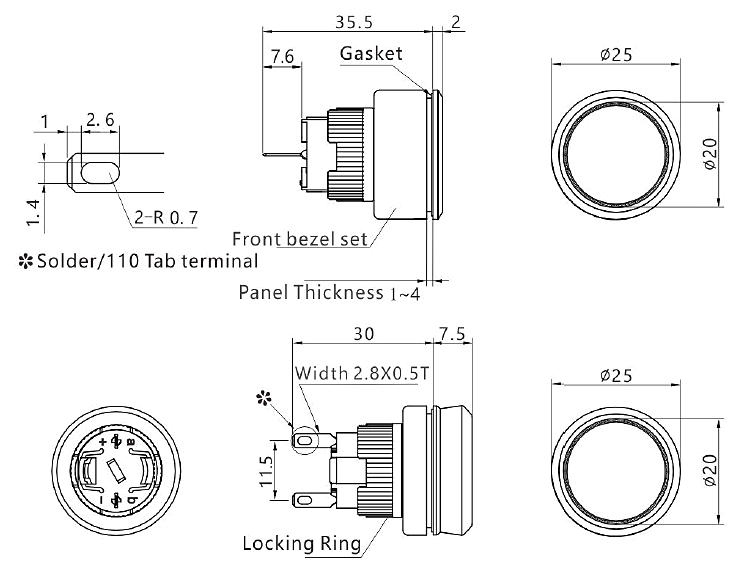

产品尺寸
AF16L larger operation
资料文件
文件名称 类型 发布时间
AF16L Indicators .PDF 12/30/2024 下载(622.56 KB)
