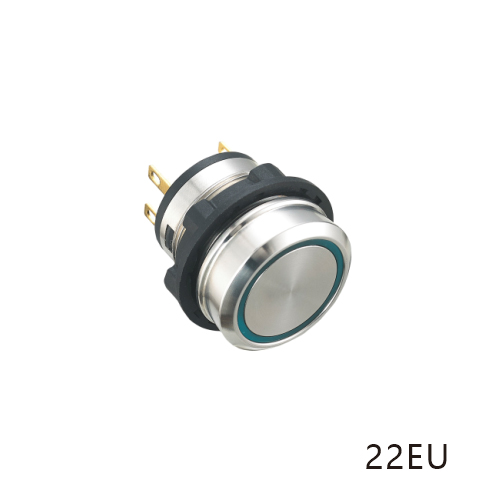

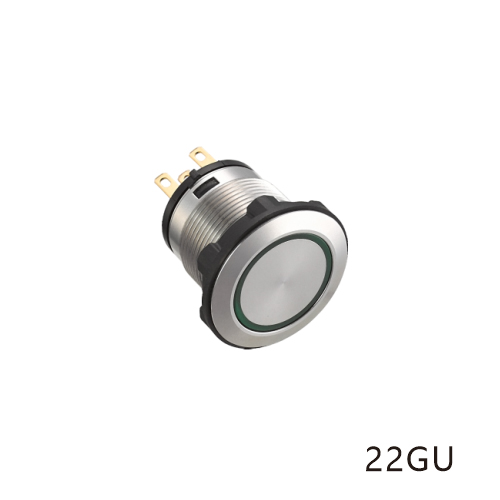

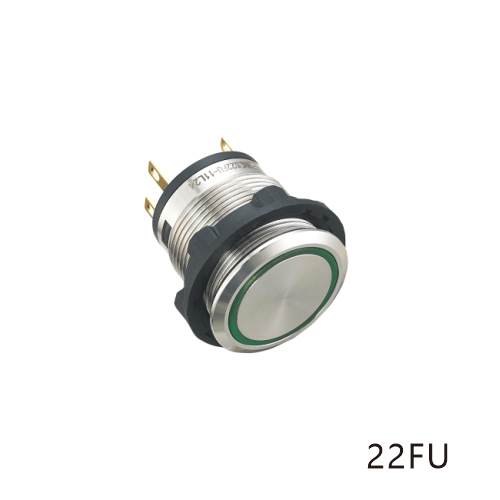

S22 vandal resistant illuminated pushbuttons llluminated pushbuttons(Ring with LED)

Φ22mm vandal resistant Illuminated pushbuttons, compact design, Combine rugged and style.

Features

● Ring-illuminated
● SUS316L stainless steel are available High resistance to vibration and impact Quickly connector and PCB connector are available
● Laser Markings are available for any symbol or text in any language
● High IP67/69K protection
● Oiltight model are available
● Single or bi-color LEDs available
● Tüv CE RoHS

技术参数

Product type	Function	Illuminated Pushbuttons
Product type	Series	S22
Front	Style	Flush,Rasied,Flush\wide-brimmed
Front	From	Round
Mounting	Dimension	Φ22mm
Mounting	Type	Panel mounting
Operating /LED part	Lens colors	Red\green\yellow\blue\white\Amber
	Illumination shape	Ring
	Illumination Colors	Red\Green\Yellow\Blue\White\Amber
	Illumination voltage	6VACDC\12VACDC\24VACDC\48VACDC\110VACDC\220VACDC
Switch Type	Switching action	Momentary/Maintained
	Contacts	1NO+1NC,2NO+2NC,3NO+3NC
	Terminal	Soldering/Tab terminal #110, PCB board, screw terminal, M12 quick connector
Other	Protection degree	IP67
Other	Complete Device/Components	Complete Device

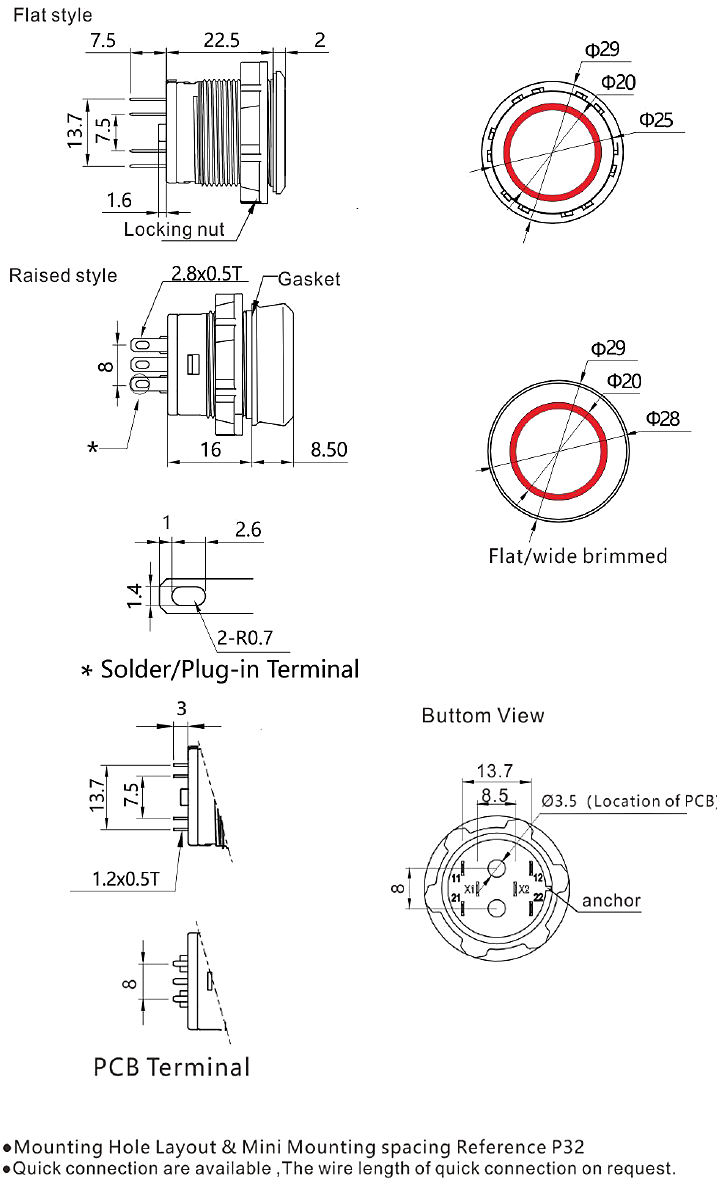

产品尺寸

S22 vandal resistant illuminated pushbuttons

资料文件

文件名称	类型	发布时间
S22 llluminated pushbuttons(Ring with LED)	.PDF	01/04/2025	下载(628.2 KB)
