AF16L larger operation Emergency stop switches
AF16L Series Emergency stop switches with up to 3PDT contacts， Stop switches are particularly suitable for use as on/off switches worldwide in mobile control units as well as in apparatus and mechanical engineering.
Feature
● Removable contact blocks, with up to 3PDT contacts
● Optional illumination and warning ring
● Solder tab compatible with 110# quick disconnects
● Degree of protection: IP40; IP65
Application
Machinery
Automation
Medical
Control panel

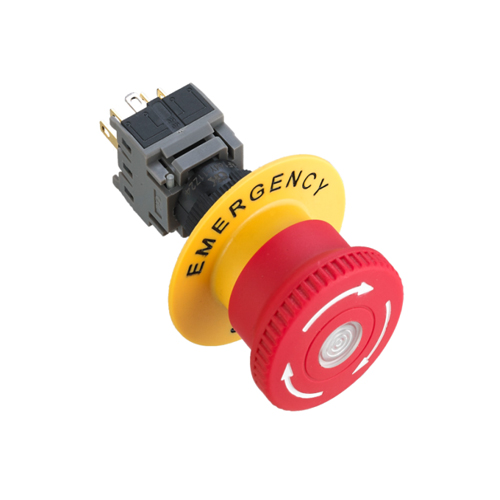

图1

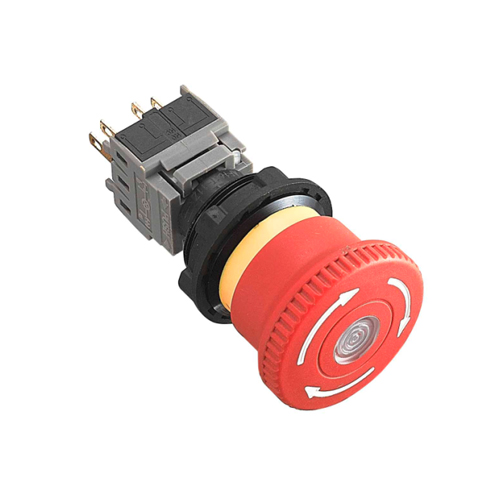

图2
技术参数

Product type

Function

Stop switches

Series

AF16LF

Front

Style

Mushroom-head

From

Illuminated/non-illuminated

Mounting

Dimension

Φ22mm

Type

Panel mounting

Operating part

Mushroom-head colorRed

Lens colors

Red\Green

Led voltage

5VACDC,12VACDC,24VACDC,48VACDC,

Switch Type

Switching action

Maintained

Release typeTwist to unlock clockwise

Contacts

1NO+1NC,2NO+2NC,3NO+3NC
Terminal
Soldering/Tab terminal #110

Other

Protection   degreen

IP40

Complete Device/Components

Complete evice

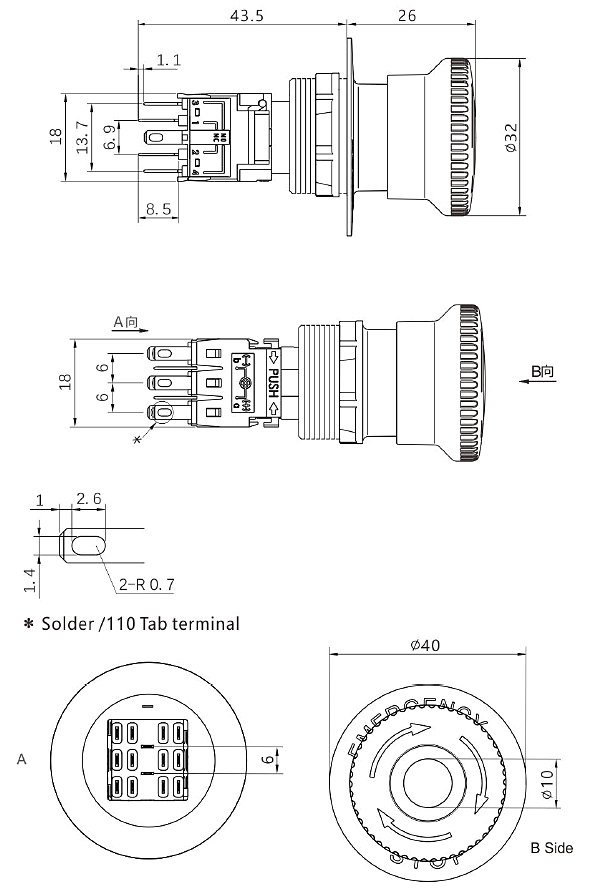

产品尺寸
AF16L larger operation
资料文件
文件名称 类型 发布时间
AF16L Emergency stop switches .PDF 12/30/2024 下载(634.98 KB)
