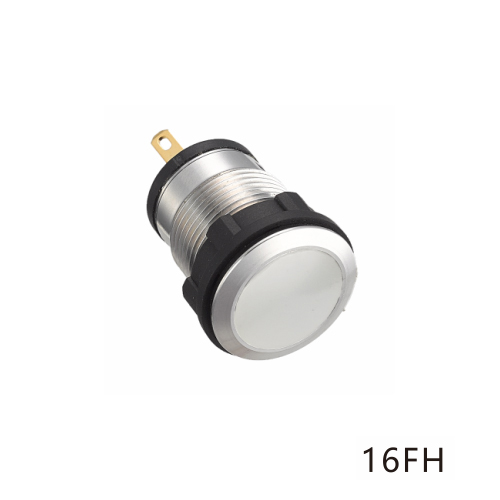

S16 vandal resistant indicator indicator
Φ16mm vandal resistant Indicator,compact design, Combine rugged and aesthetic. Front bezel are options.
Features
● φ16mm
● Translucent face appears gray when off, to avoide false indication from ambient light
● Si-color, Bi-color, Tri-color are available
● Models rated to IP68 and IP69K for use in harsh environments
● Multiple colors available
● Available with PNP or NPN input, depending on model
1
技术参数

Product type

Function

Indicator

Series

S16

Front

Style

Flush/Rasied

From

Round

Mounting

Dimension

Φ16mm

Type

Panel mounting

Operating/LEN   part

Lens colors

opaque

LED colors

Red\green\yellow\blue\white\amber

LED voltage

6VACDC\24VACDC\110VACDC\220VACDC

Other

Terminal

Solder tab compatible with 110# quick disconnects

Protection degreen

IP67

Complete   Device/Components

Complete Device

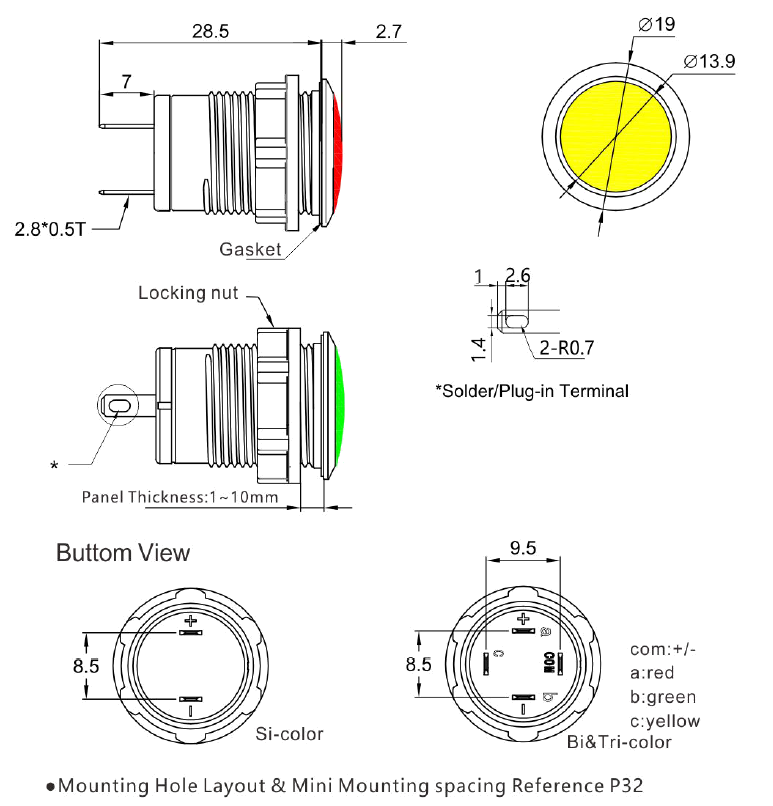

产品尺寸
S16 vandal resistant indicator
资料文件
文件名称 类型 发布时间
S16 Pilot lamp .PDF 01/04/2025 下载(627.17 KB)
