S22 Vandal resistant E-Stop switches Emergency Stop Switches
Φ22mm vandal resistant E-stop switches, compact design, Combine rugged and style.
Features
● φ28mm,φ32mm andφ40mm mush- room operators
● SUS316L stainless steel are available
● High resistance to vibration and impact
● Two ways of resetting-pulling and turning
● High IP67/69K protection
● Oiltight model are available
● Quickly connector and PCB connector are available
● Tüv CE RoHS

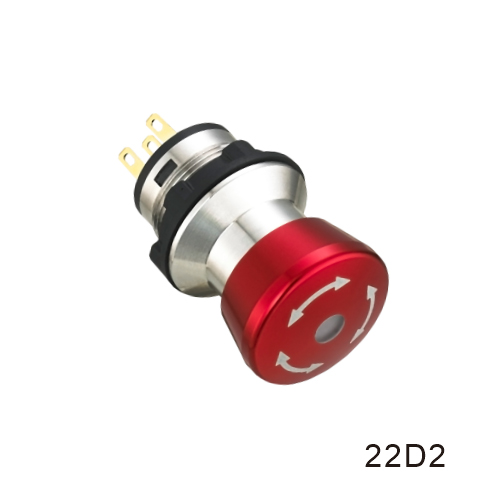

1

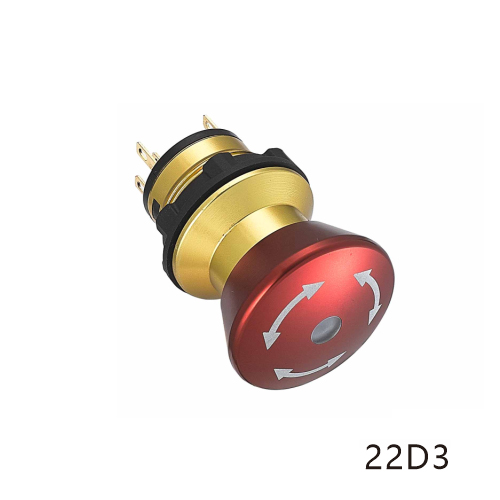

2

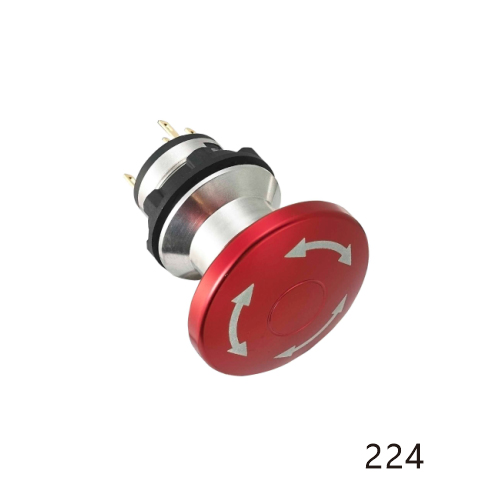

3
技术参数

Product type

Function

Vandal resistant E-stop switches

Series

S22

Front

Style

Mushroom-head

From

Φ28mm\Φ32mm\Φ40mm

Mounting

Dimension

Φ22mm

Type

Panel mounting

Operating part

Lens colors

Aluminum oxidizes red

Illumination

Illuminated\Non-Illuminated

Illumination colorsRed\Green
Illumination volotage6VACDC\12VACDC\24VACDC\48VACDC\110VACDC\220VACDC

Switch Type

Switching action

Maintained

Release typeTwist to unlock

Contacts

1NO+1NC,2NO,2NC

Terminal

Soldering/Tab terminal #110, PC board, screw terminal, M12 quick   connector

Other

Protection     degreen

IP67

Complete   Device/Components

Complete evice

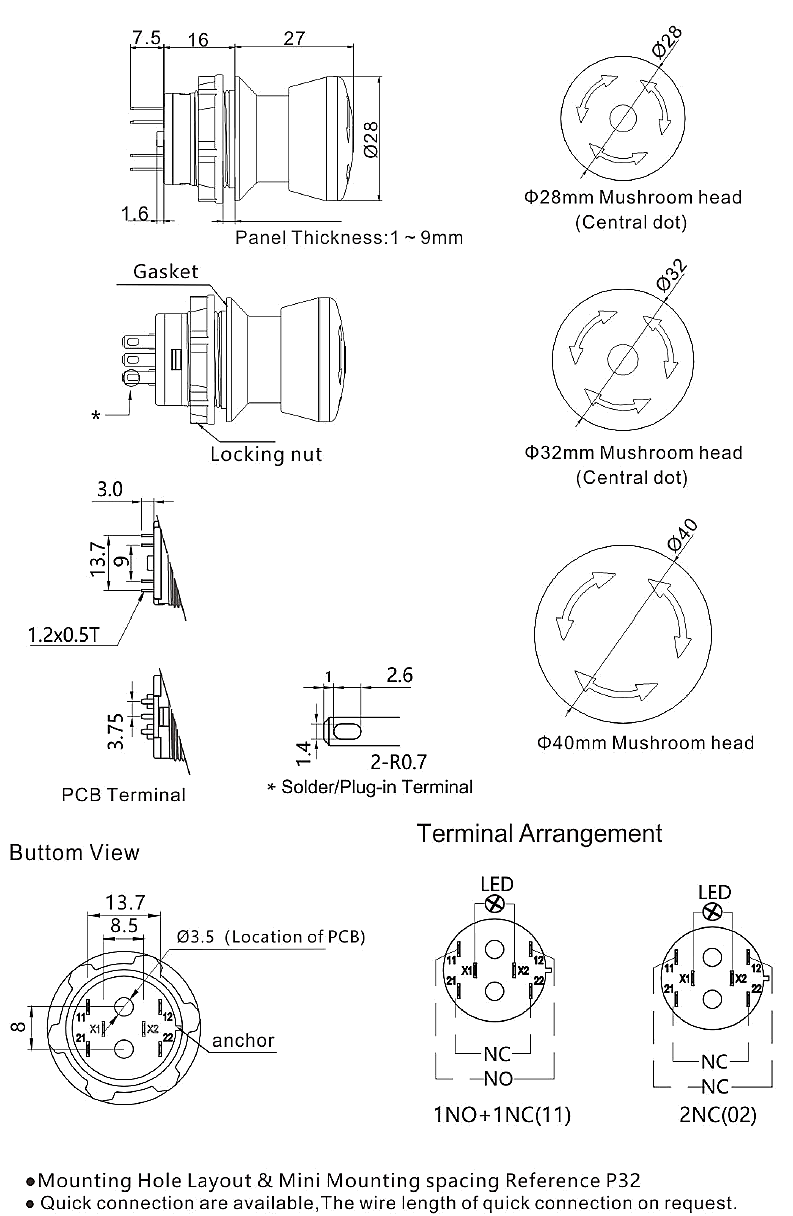

产品尺寸
S22 Vandal resistant E-Stop switches
资料文件
文件名称 类型 发布时间
S22 Emergency Stop Switches .PDF 01/04/2025 下载(632.98 KB)
