S22 Vandal resistant Buzzer Buzzer, Illuminated Buzzer
S22 Series Buzzer, an electric signaling device that makes a buzzing sound,The combination of buzzer and indicator lamp functions, waterproof specification can be used in places where water is splashed.
Features
● φ22mm
● Housing made of SUS 304 stainless steel
● High resistance to vibration and impact
● Continuous sound and intermittent sound are available
● Illuminated Buzzer are available
● Optional 85dB/1M

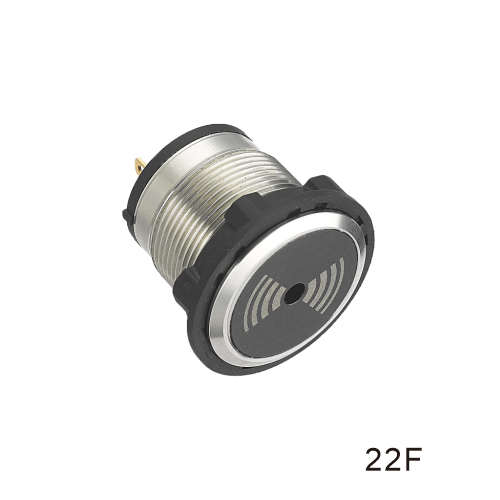

1

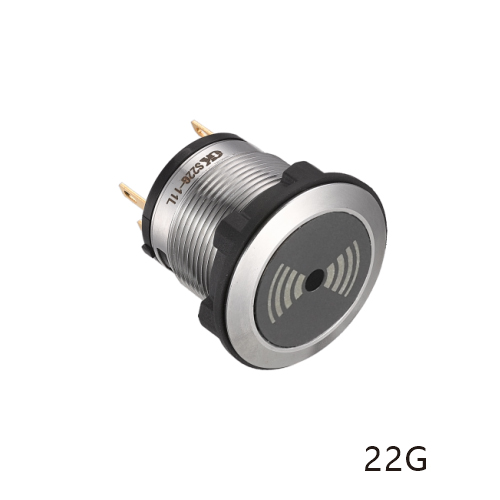

3
Model specifications

Product type

Function

Buzzer, Illuminated Buzzers

Series

S22

Front

Style

Flush,Raised,Flush\wide-brimmed

From

Round

Mounting

Dimension

Φ16mm

Type

Panel Mounting

Operating /LED   part

LENS colors

Black

Illumination colors

Red

Illumination Voltage

6VACDC\12VACDC\24VACDC

Other

Terminal

Soldering terminal

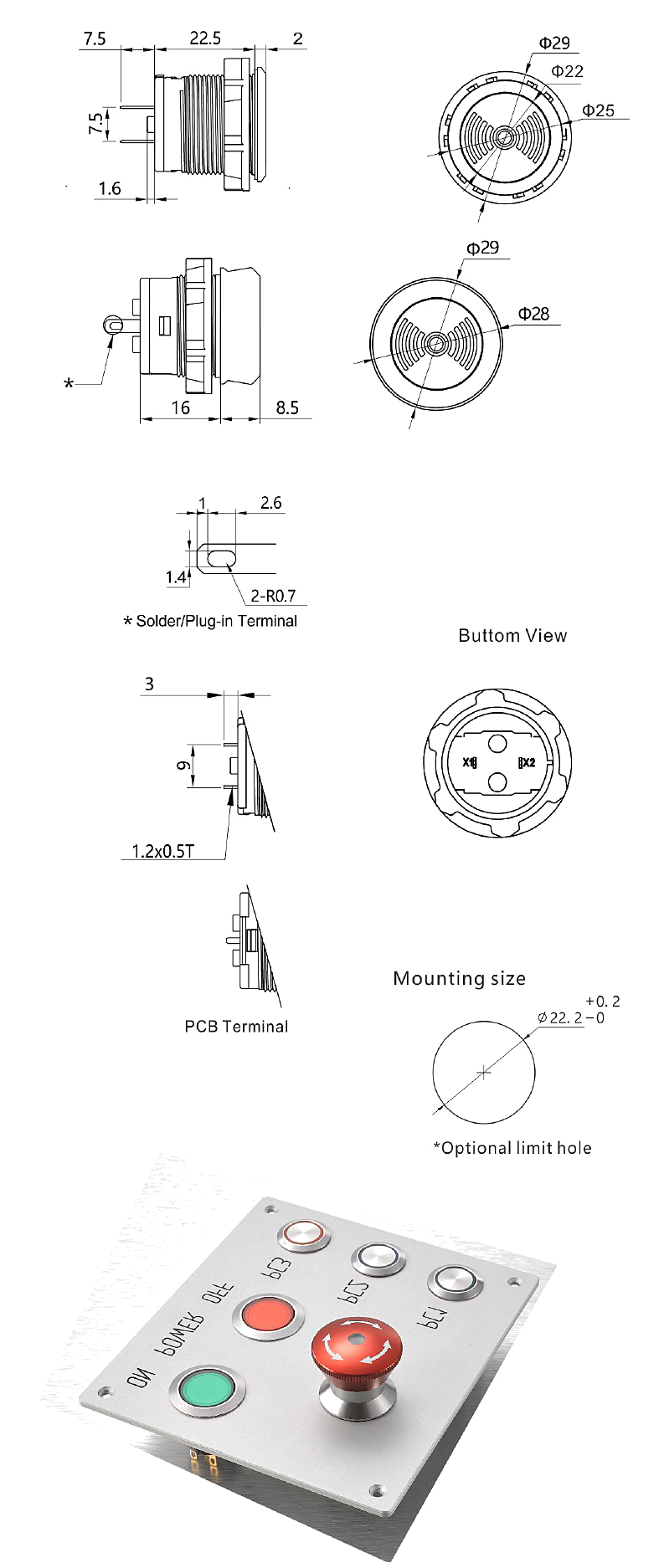

Dimensional drawing
S22 Vandal resistant Buzzer
Download
File name File type Update Date
S22 Buzzer,Buzzer with lamp .PDF 01/04/2025 Download(523.32 KB)
