AF16S Illuminated Push button
AF16S standard type, combination type, maintenance wiring operation i simples.reasonable structure, minature size, full varietes. wich has a very positive effect on the minaturization of automation equipment.
Advantages
●Compact design, removable contact blocks ideal for single board mounting
●Separate contacts with a locking lever enable easy installation even when mounted collectively.
● Bright and clear LED illuminated face
●Excellent tactile feedback
●Wide variety of symbols and markings, including customer-specific options
Features
● Removable contact blocks, with up to 3PDT contacts
● 3 operator shapes: round, square or rectangular
● 6 LED illumination colors available in 5V,12V,24VACDC, 48VACDC,110VACDC &220VACDC
● Solder tab compatible with 110# quick disconnects
● Degree of protection: IP40; IP65
Applications
Machinery
Automation
Panel building

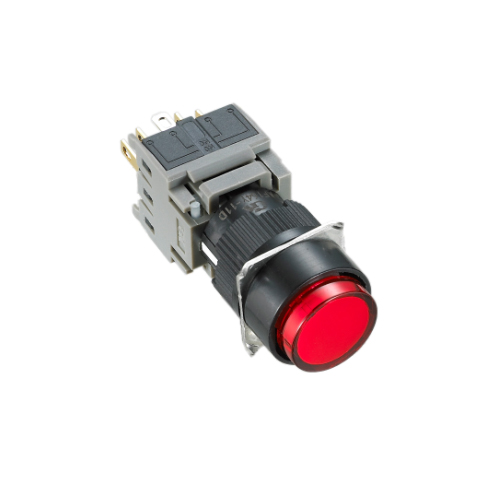

图1

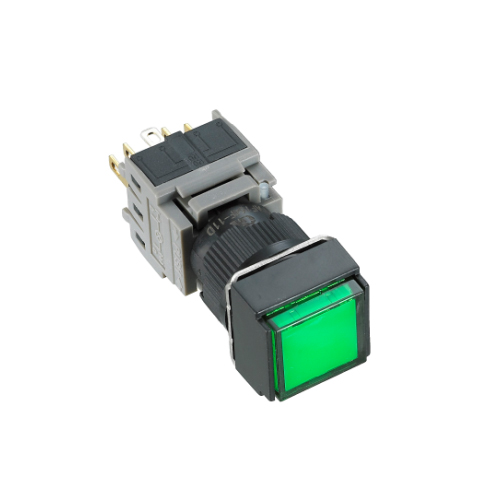

图2

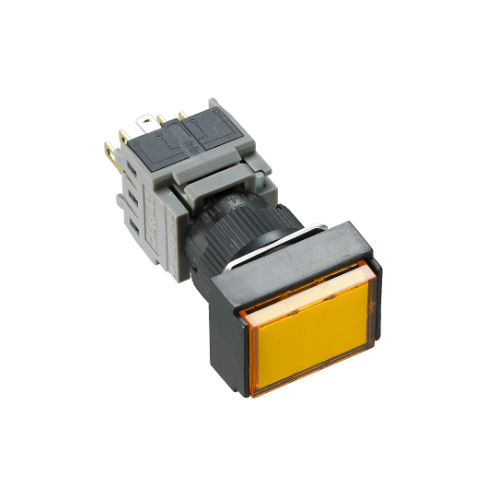

图3
Model specifications

Product type

Function

Illuminated Pushbuttons

Series

AF16S

Front

Style

Raised

From

Round/squre/rectangular

Mounting

Dimension

Φ16mm

Type

Panel mounting

Operating /LED part

Lens colors

Red\green\yellow\blue\white\Amber

Illumination Colors

Red\Green\Yellow\Blue\White\Amber

Illumination voltage

6VACDC\12VACDC\24VACDC\48VACDC

110VACDC\220VACDC

Switch Type

Switching action

Momentary/Maintained

Contacts

1NO+1NC,2NO+2NC,3NO+3NC

Terminal

Soldering terminal

Other

Protection degree

IP67

Complete Device/Components

Complete Device

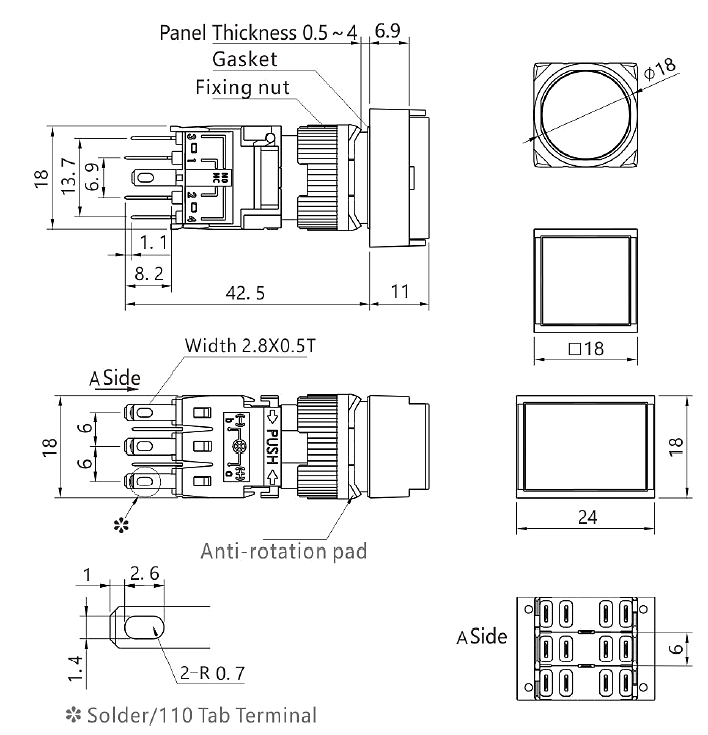

Dimensional drawing
AF16S
Download
File name File type Update Date
AF16S Push button .PDF 12/30/2024 Download(731.22 KB)
