AF16L Larger operator Pushbutons
AF16L Larger operator type, Combination type, maintenance wiring operation is simple.reasonable structure, full varieties.which has a very positive effect on the minaturization of automation equipment.
Advantages
●Large button surface for easy usability.
●Rasied mounting and Flush mounting
●Ideal for frequently used switches such as stop and start
●Removable contact blocks ideal for single board mounting.
●Front protection up to IP67


Feature
● Removable contact blocks, with up to 3PDT contacts
● 3 operator shapes: round, square or rectangular
● 7 Lens colors available in Red, Green,Yellow,Blue,White,Amber,Black
● Solder tab compatible with 110# quick disconnects
● Degree of protection: IP40; IP65
Applications
● Industrial cleaning equipment
● Packaging machinery
● Semiconductor
● Power and energy control

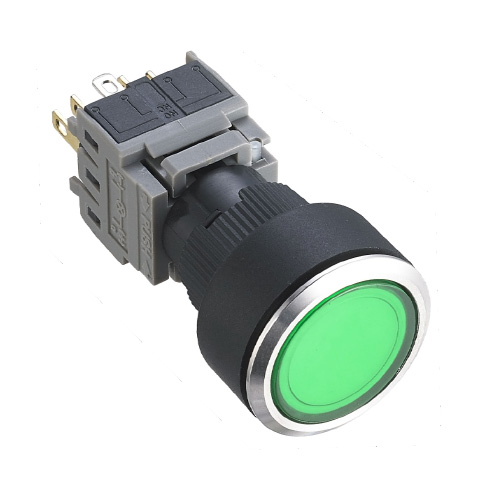

LF

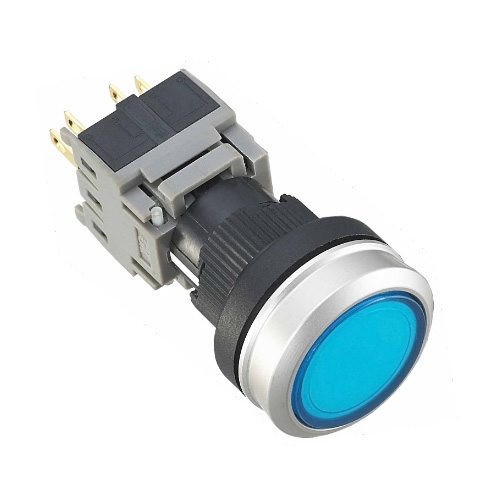

LE
Model specifications

Product type

Function

Pushbuttons

Series

AF16L

Front

Style

Larger operator

From

Flush/Rasied

Mounting

Dimension

Φ22mm

Type

Panel mounting

Operating part

Lens colors

Red\green\yellow\blue\white\Amber\black

Illumination

Non-Illuminated

Switch Type

Switching action

Momentary/Maintained

Contacts

1NO+1NC,2NO+2NC,3NO+3NC

Terminal

Soldering/Tab terminal #110

Other

Protection degreen

IP67

Complete Device/Components

Complete evice


Dimensional drawing
AF16L
Download
File name File type Update Date
AF16L .PDF 08/12/2025 Download(3.06 MB)
