PBH22 Series Mushroom switches Mushroom Switches/llluminated Mushroom Switches
Features
● φ22mm
● Front bezel (Aluminium) : standard, circula
● Holder: Metal, Plastic, Nut
● Momentary & Maintained
● Wide range of lenses and lens colours
● Bright, single or bi-color LED illumination
● IEC/EN60947-5-1,UL 508,IEC/EN 60073,IEC/EN 60529

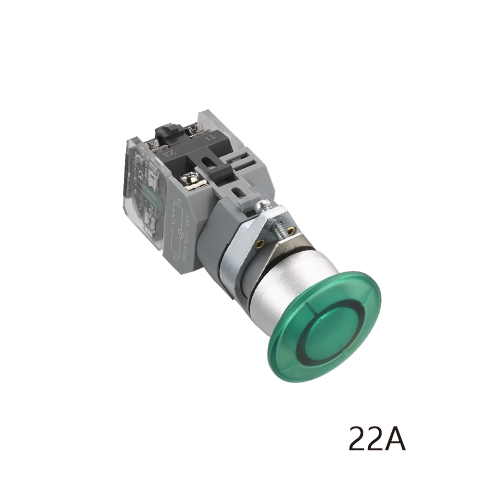

1

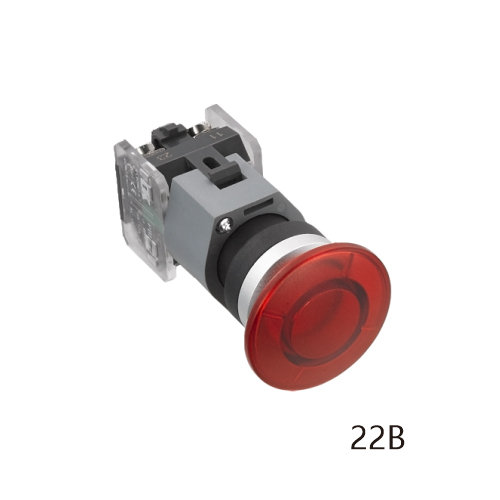

2

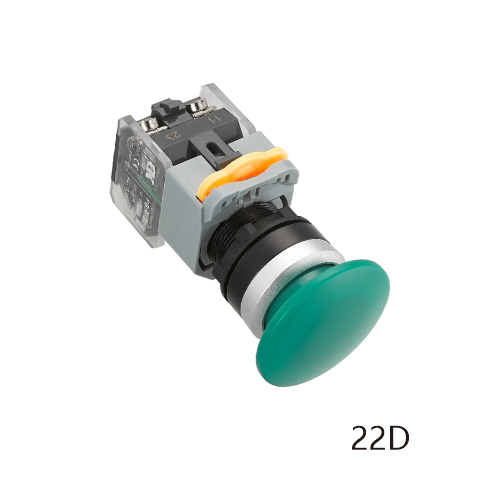

3

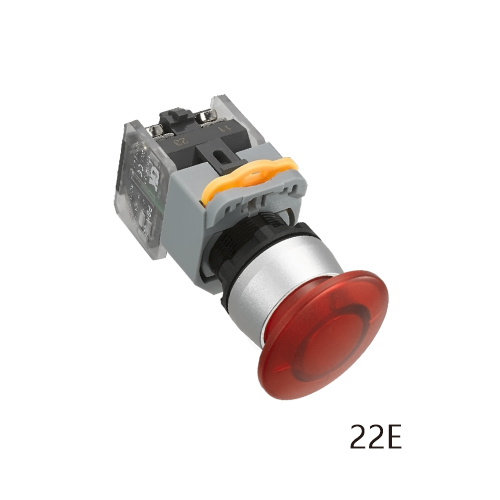

4
Model specifications

Product type

Function

Mushroom switches\Illuminated Mushroom switches

Series

PBH-22

Front

Style

Rasied

From

Round

Mounting

Dimension

Φ22mm

Type

Panel mounting

Operating /LED part

Lens colors

Red\green\yellow\blue\white\Amber

Illumination shape

Mushroom-head

Illumination Colors

Red\Green\Yellow\Blue\White\Amber

Illumination   voltage

6VACDC\12VACDC\24VACDC\48VACDC

110VACDC\220VACDC

Switch Type

Switching action

Momentary/Maintained

Contacts

1NO+1NC,2NO+2NC,3NO+3NC

Terminal

screw terminal

Other

Protection degree

IP54

Complete   Device/Components

Complete Device

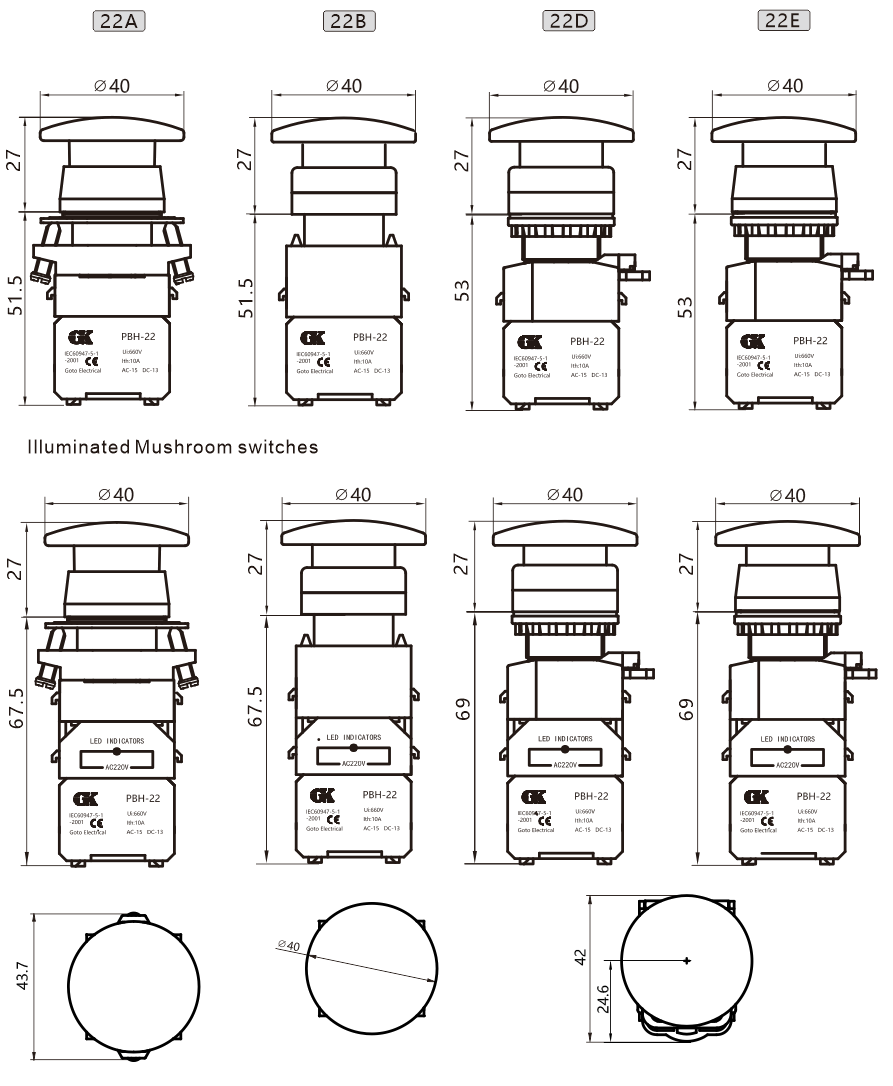

Dimensional drawing
PBH22 Series Mushroom switches
Download
File name File type Update Date
Type PBH Mushroom Switchllluminated Mushroom Switch .PDF 01/07/2025 Download(731.67 KB)
