AF16S Pushbutons
AF16S series button switch is installed on a 16mm panel and comes with indicator lights. Its shape can be selected in circular, square, or rectangular shapes.
Specifications
1. Installation size: 16mm
2. Modular structuration, Removable contact block
3. Solder/quick connect terminals, screw terminals, or PCB pins etc.
4. Power Frequency: 2000V AC
5. Stroke: 1.5~3mm
6. Protection Degree: IP65, IP40
7. Certification: CB, TUV, CE, CCC
Features
□ Compact design,removable contact blocks ideal for single board mounting
□ Silver Contact(90:8),Rated Thermal Current 5A(24VAC-DC/5mins).in same time, Contact resistance ≤20mΩ.
□ Pushbuttons,llluminated pushbuttons, Selector switcheskey selector switches with up to 3PDT contacts.
□ 2-position and 3-position selector switches.Maintainedand spring return available.
□ Key selectors with keys that are difficult to duplicate.
□ Bright and clear LED illuminated face.
□ Pushbuttons can be printed with legend marking platewhich is placed in the lens.

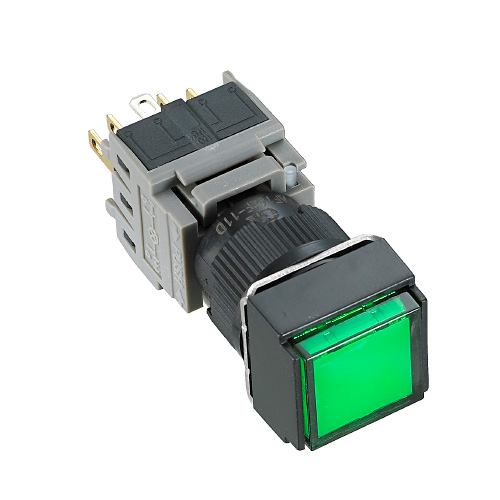

FS

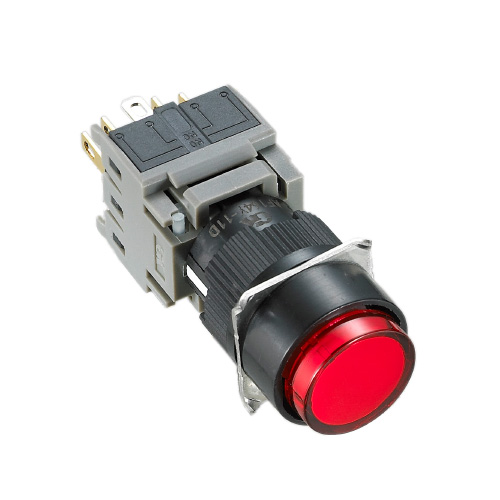

YS

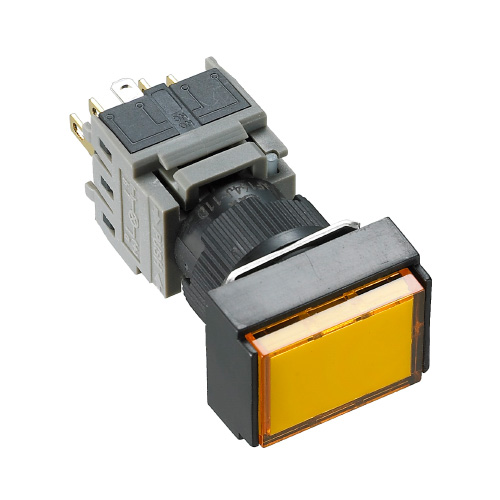

JS
Model specifications
ShapeAction TypeLED lightsContact formModelProtection DegreeVoltageColor
Circular
(YS)		Self compoundWithout lightsSPDTAF16□YS-114:IP40
5:IP50		24V
AC/DC		R: Red
G: Green
Y: Yellow
B: Blue
W: White
A: Orange
DPDTAF16□YS-22
3PDTAF16□YS-33
With lightsSPDTAF16□YS-11D
DPDTAF16□YS-22D
3PDTAF16□YS-33D
Self lockingWithout lightsSPDTAF16□YS-11T
DPDTAF16□YS-22T
3PDTAF16□YS-33T
With lightsSPDTAF16□YS-11DT
DPDTAF16□YS-22DT
3PDTAF16□YS-33DT
Square
(FS)		Self compoundWithout lightsSPDTAF16□FS-11
DPDTAF16□FS-22
3PDTAF16□FS-33
With lightsSPDTAF16□FS-11D
DPDTAF16□FS-22D
3PDTAF16□FS-33D
Self lockingWithout lightsSPDTAF16□FS-11T
DPDTAF16□FS-22T
3PDTAF16□FS-33T
With lightsSPDTAF16□FS-11DT
DPDTAF16□FS-22DT
3PDTAF16□FS-33DT
Rectangle
(JS)		Self compoundWithout lightsSPDTAF16□JS-11
DPDTAF16□JS-22
3PDTAF16□JS-33
With lightsSPDTAF16□JS-11D
DPDTAF16□JS-22D
3PDTAF16□JS-33D
Self lockingWithout lightsSPDTAF16□JS-11T
DPDTAF16□JS-22T
3DPTAF16□JS-33T
With lightsSPDTAF16□JS-11DT
DPDTAF16□JS-22DT
3DPTAF16□JS-33DT
Dimensional drawing
AF16S
Download
File name File type Update Date
AF16S Push butons Indicators .PDF 09/25/2024 Download(731.77 KB)
