S16 vandal resistant Mushroom switches
Φ16mm Vandal proof Mushroom switches,compact design, Combine rugged and aesthetic. From momentary and material to mushroom head color options with customizations
Features
● φ16mm
● Action: Momentary; Maintained
● Terminal: Solder/ Plug-in 2.8*0.5
● Silver alloy/ Gold plated silver alloy
● Contact:1NO+1NC
● IP67
● IEC/EN60947-5-1,
● IEC/EN60073,IEC/EC60529

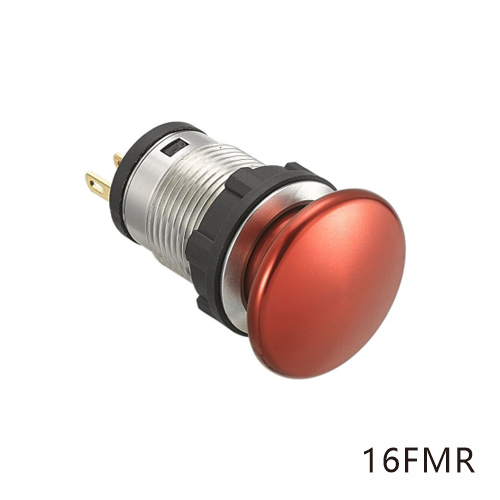

1
Model specifications

Product type

Function

Mushroom switches

Series

S16

Front

Style

Mushroom-head

From

round

Mounting

Dimension

Φ16mm

Type

Panel mounting

Operating part

Lens colors

Red\black

Illumination

Non-Illuminated

Switch Type

Switching action

Momentary/Maintained

Contacts

1NO+1NC,

Terminal

Soldering/Tab terminal #110

Other

Protection   degreen

IP67

Complete Device/Components

Complete evice

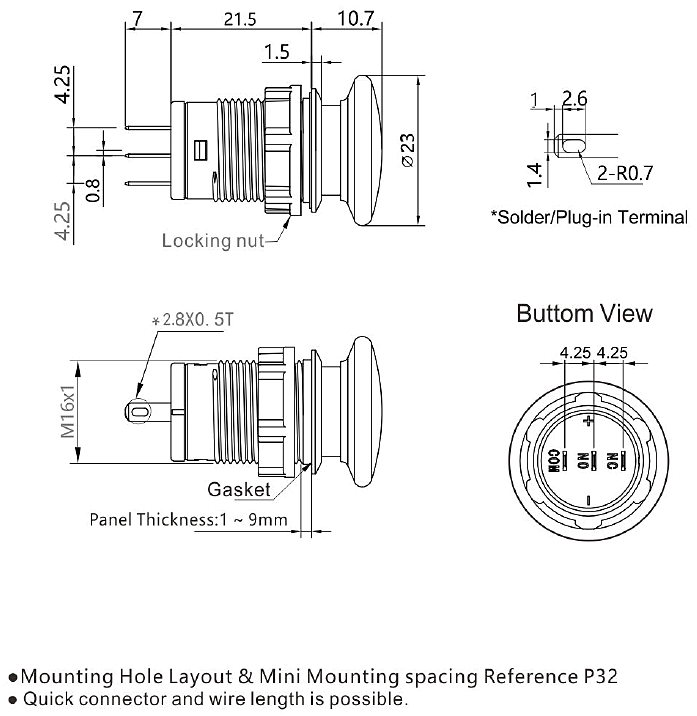

Dimensional drawing
S16 vandal resistant
Download
File name File type Update Date
S16 Mushroom switches .PDF 01/04/2025 Download(627.17 KB)
