P5 Signal light tower Signal Tower light with M12 Connector
Φ50mm signal tower light ,which are multi-line LED tower lights give machines a voice , converying critical information in a clear visual manner.
Features
● Up to three independent colors in one device

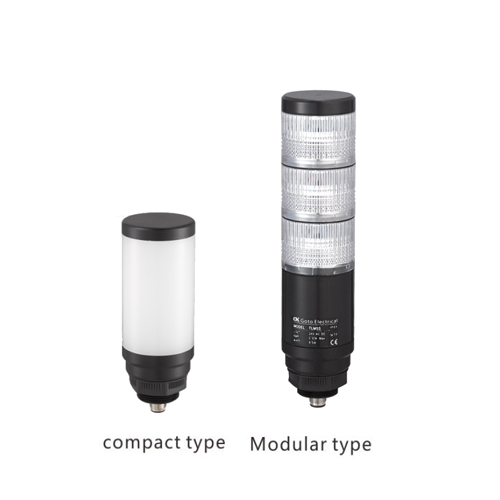

● Available in compact type and modular type.
● Illumination provides easy-to-see operator, guidance and equipment status indication at long distances
● Featuring a built-in M12 connector for simplified installations and disconnects
● Features simultaneous use of continuous, flashing, and audible alarm conditions
● Available in 12VACDC,24VACDC,48VACDC and 110-250VACDC
● High protection rating IP67 for operation in harsh environments
1
Model specifications

Mounting Hole Diameter

φ20mm

Input Voltage

12VAC/DC ;24VAC/DC

Functions

Constant\ flashing

Material

Base: Aluminium(anodized), Lens: PC,  Nut-PA66

Output

NPN/PNP

Connection

M12 connector(Additional cable)

Operating Temperature

-25℃+55℃ No Freezing

Storage Temperature

-40℃+70℃ No Freezing

Storage Temperature

40~85%RH No condensation

Vibration Resistance

10~55Hz, Amplitude 0.75mm

Installation Category

Direct Mounting(M30 nut）

Rod Mounting

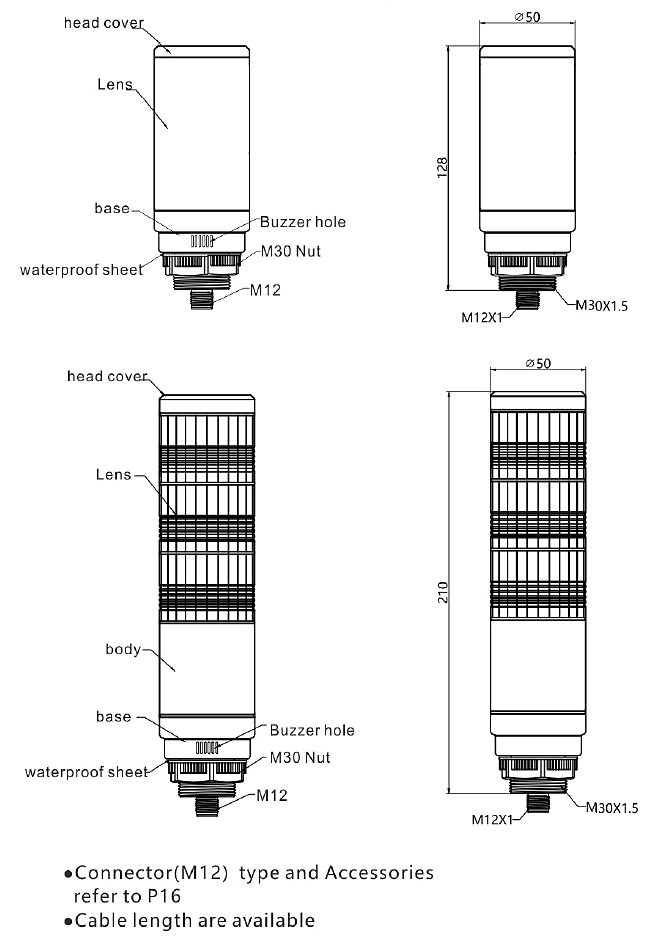

Dimensional drawing
P5 Signal light tower
Download
File name File type Update Date
P5 φ50mm Signal Tower with M12 Connector .PDF 12/30/2024 Download(633.29 KB)
