S30 Vandal resistant Illuminated pushbuttons llluminted pushbuttons
Φ30mm vandal resistant Illuminated pushbuttons, compact design, Combine rugged and style.
Features
● Illuminated Pushbuttons
● SUS316L stainless steel are available
● High resistance to vibration and impact
● Quickly connector and PCB connector are available
● Laser Markings are available for any symbol or text in any language
● High IP67/69K protection
● Oiltight model are available
● Single or bi-color LEDs available
● Tüv CE RoHS
1
2
3
Model specifications

Product type

Function

Illuminated Pushbuttons

Series

S30

Front

Style

Flush,Rasied,Flush\wide-brimmed

From

Round

Mounting

Dimension

Φ30mm

Type

Panel mounting

Operating /LED part

Lens colors

Red\green\yellow\blue\white\Amber

Illumination shape

Lens\Ring\Standby

Illumination Colors

Red\Green\Yellow\Blue\White\Amber

Illumination   voltage

6VACDC\12VACDC\24VACDC\48VACDC

110VACDC\220VACDC

Switch Type

Switching action

Momentary/Maintained

Contacts

1NO+1NC,2NO,2NC

Terminal

Soldering/Tab   terminal #110, PCB board, screw terminal, M12 quick connector

Other

Protection degree

IP67

Complete   Device/Components

Complete Device

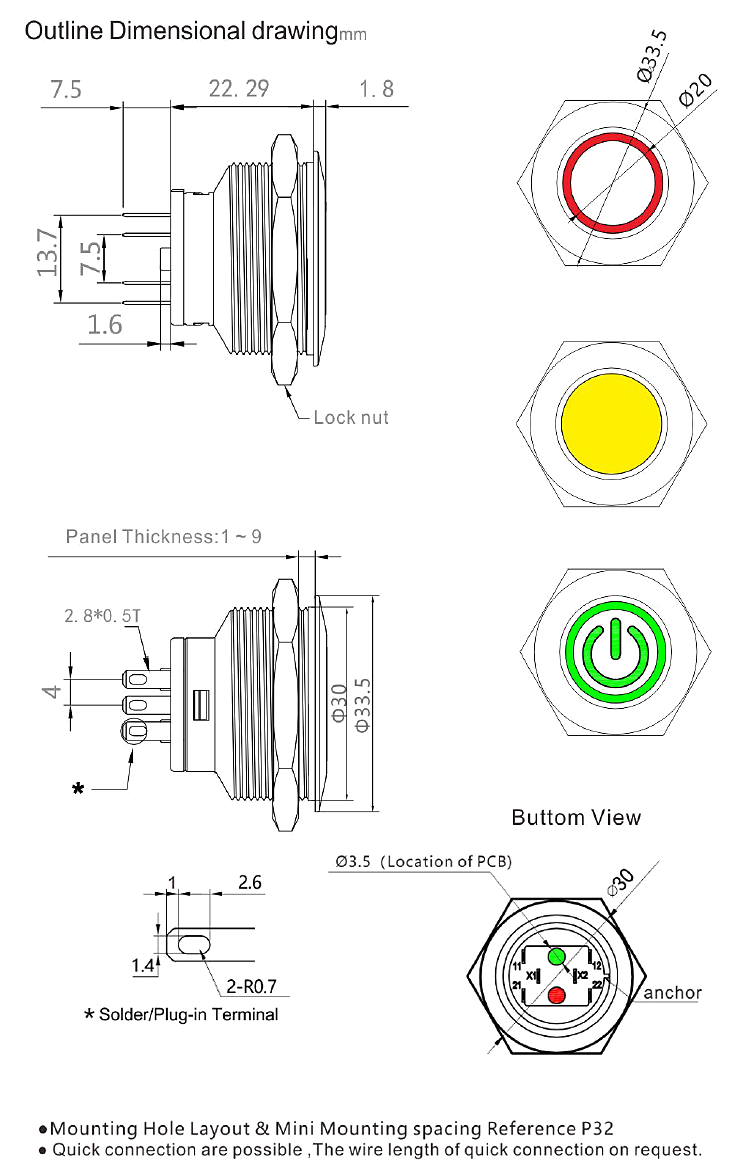

Dimensional drawing
S30 Vandal resistant Illuminated pushbuttons
Download
File name File type Update Date
S30 llluminted pushbuttons .PDF 01/04/2025 Download(646.42 KB)
