C3 domed indicator lamp Domed lndicator lamp
Φ 30mm dome light, ideal for status indication on a wide range of industrial and mobile applications. Provide accurate device status and alert supervisors status information increase efficienty of equipments.
Features
● ∅30mm diameter Dome
● Robust designs, Bright and uniform
● Three colors in one device and five colors to choose from
● Translucent ivory Lens, eliminating false Indication from ambient light when off
● Cabled and quick-disconnect model available
● All models have flashing input control
● Models rated to IP67 and IP69K for use in harsh environments

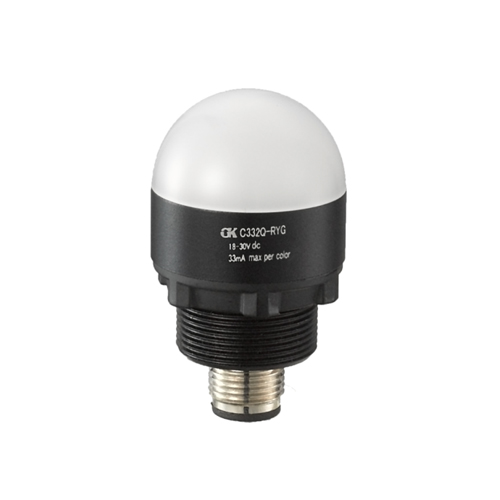

1

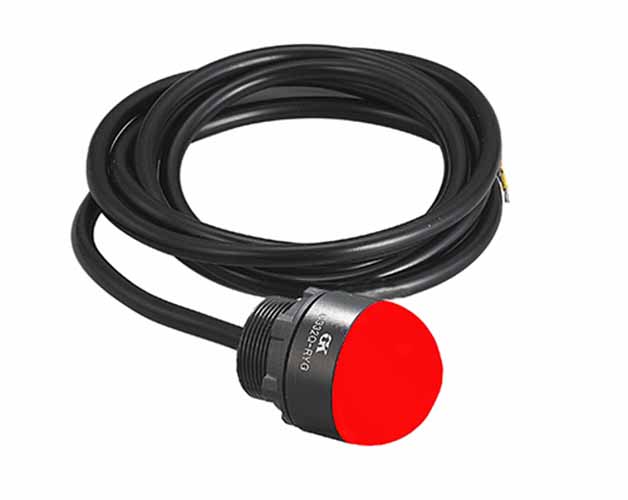

C331

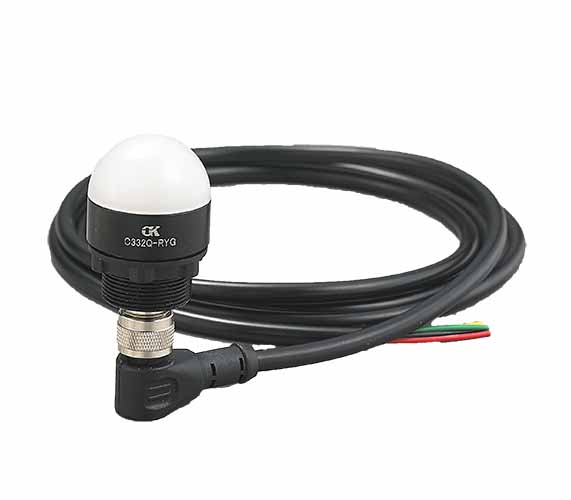

C332Q-Y
Model specifications

Mounting Hole Diameter

φ22mm

Input Voltage

12VAC/DC ;24VAC/DC

Functions

Constant\ flashing

Material

Base: Aluminium(anodized), Lens: PC,    Nut-PA66

Output

NPN/PNP

Connection

M12  connector(Additional cable)/1.5M cable

Operating Temperature

-25℃+55℃ No  Freezing

Storage Temperature

-40℃+70℃ No  Freezing

Storage Temperature

40~85%RH No  condensation

Vibration Resistance

10~55Hz, Amplitude  0.75mm

Installation Category

Direct Mounting

Rod Mounting

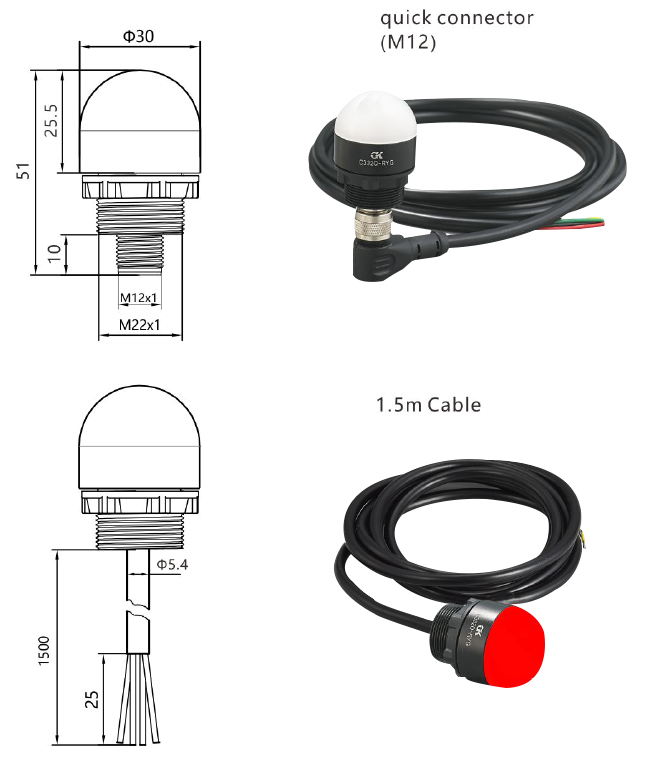

Dimensional drawing
C3 domed indicator lamp
Download
File name File type Update Date
C3 Domed lndicator lamp .PDF 12/30/2024 Download(558.99 KB)
