PB22 Emergency Stop switches Emergency Stop Switch llluminated Emergency Stop Switch
Features
● φ22mm
● Push-to-lock, Pull or Turn-to-reset operator
● Direct opening action mechanism
● Illuminated switches are available
● Arrow marked and unmarked buttons
● Two models of contact
● IEC/EN60947-5-1,UL 508,IEC/EN 60073,IEC/EN60529

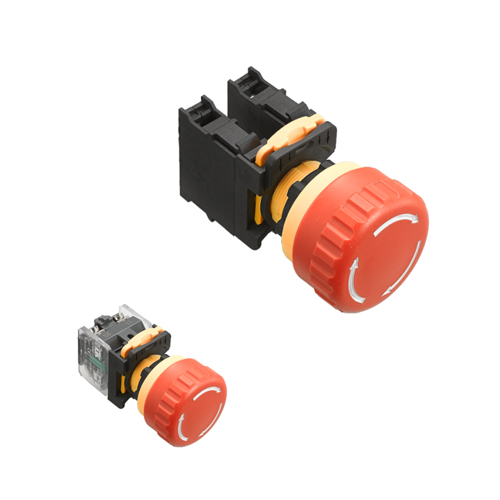

1
Model specifications

Product type

Function

Emergency stop switches \Illuminated Emergency stop switches

Series

PB22

Front

Style

Rasied

From

Round

Mounting

Dimension

Φ22mm

Type

Panel mounting

Operating /LED part

Lens colors

Red\green

Illumination shape

Mushroom-head

Illumination Colors

Red

Illumination     voltage

6VACDC\12VACDC\24VACDC\48VACDC

110VACDC\220VACDC

Switch Type

Switching action

Momentary/Maintained

Release typeTwist to unlock clockwise

Contacts

1NO+1NC,2NO+2NC,3NO+3NC

Terminal

screw terminal

Other

Protection degree

IP54

Complete     Device/Components

Complete Device

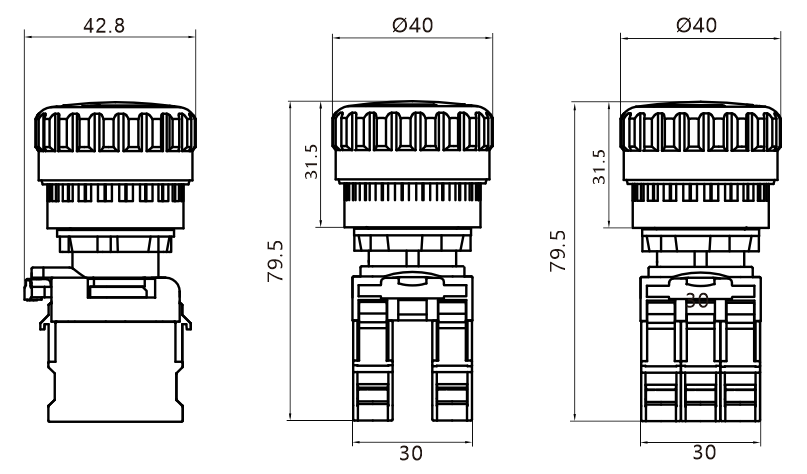

Dimensional drawing
PB22 Emergency Stop switches
Download
File name File type Update Date
Type PB Emergency Stop Switch llluminated Emergency Stop Switch .PDF 01/07/2025 Download(632.54 KB)
