S22 vandal resistant pushbuttons Pushbuttons
Φ22mm vandal resistant pushbuttons, compact design, Combine rugged and style.
Features
● φ22mm
● Housing made of SUS304 stainless steel High resistance to vibration and impact Quickly connector and PCB connector are available
● Laser Markings are available for any symbol or text
● High IP67/69K protection
● Oiltight model are available
● Tüv CE RoHS

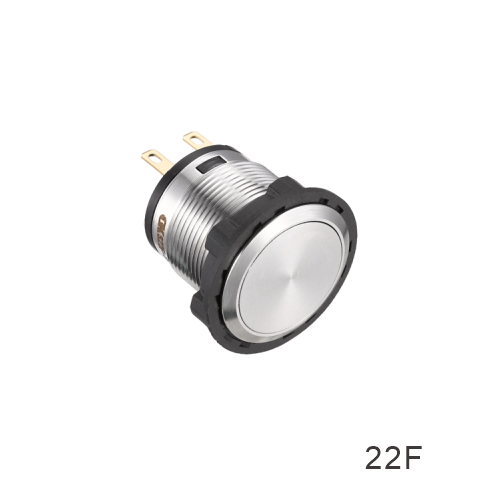

1

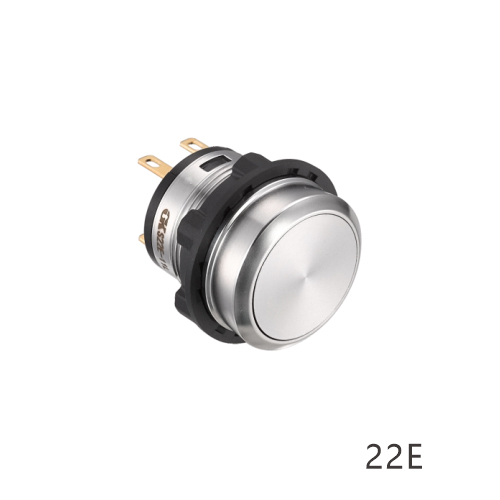

2

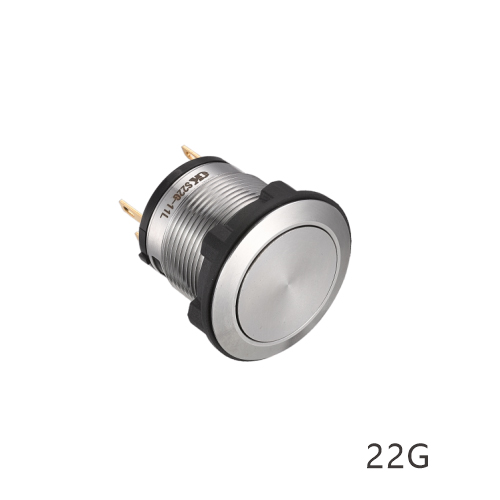

3
Model specifications
Product type

Function

Vandal resistant Pushbuttons

Series

S22

Front

Style

Flush,Rasied,Flush\wide-brimmed

From

Round

Mounting

Dimension

Φ22mm

Type

Panel mounting

Operating part

Lens colors

SUS 316

Illumination

Non-Illuminated

Switch Type

Switching action

Momentary/Maintained

Contacts

1NO+1NC,2NO,2NC

Terminal

Soldering/Tab terminal #110, PC board, screw terminal, M12 quick connector

Other

Protection   degreen

IP67

Complete Device/Components

Complete evice

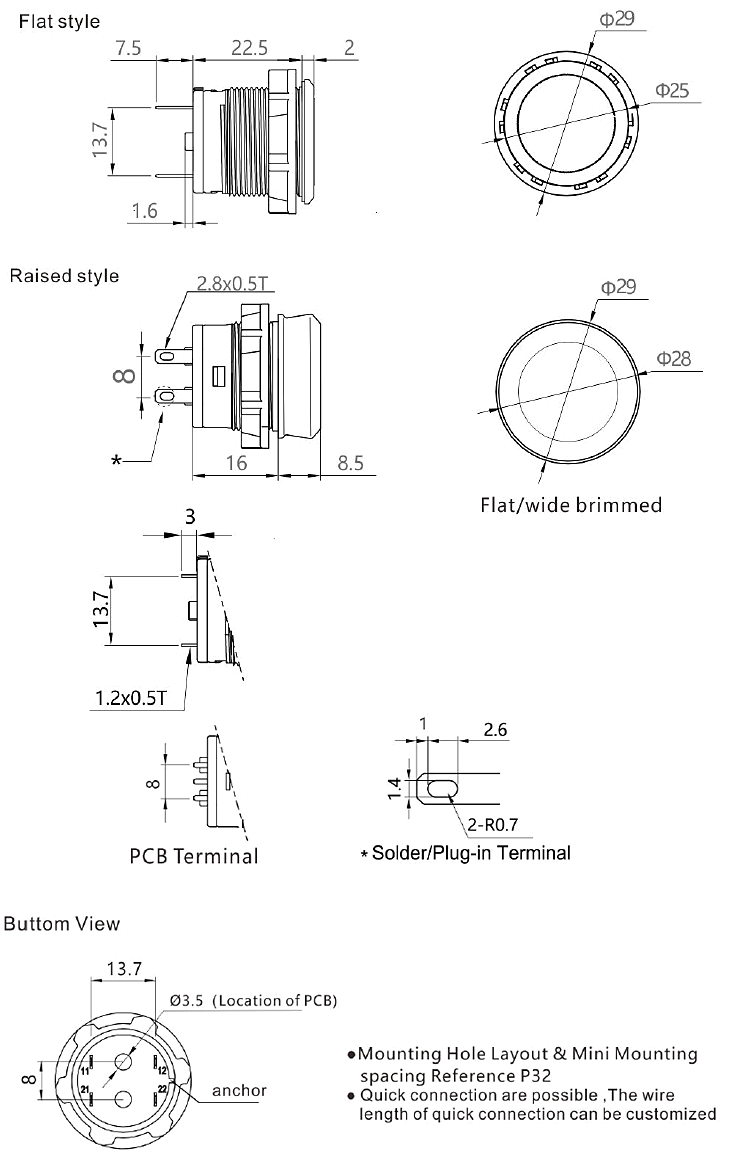

Dimensional drawing
S22 vandal resistant pushbuttons
Download
File name File type Update Date
S22 Pushbuttons .PDF 01/04/2025 Download(568.65 KB)
