S16 vandal resistant pushbuttons Pushbutton
Φ16mm vandal resistant pushbuttons, compact design, Combine rugged and style. Front bezel options
Features
● φ16mm
● Front Bezel : Flat、 Flat/ Exten、 Raised
● Action: Momentary; Maintained
● Terminal: Solder/ Plug-in2.8*0.5
● Silver alloy/ Gold plated silver alloy
● Contact: 1NO+1NC
● IP67
● IEC/EN60947-5-1,
IEC/EN 60073,IEC/EC60529

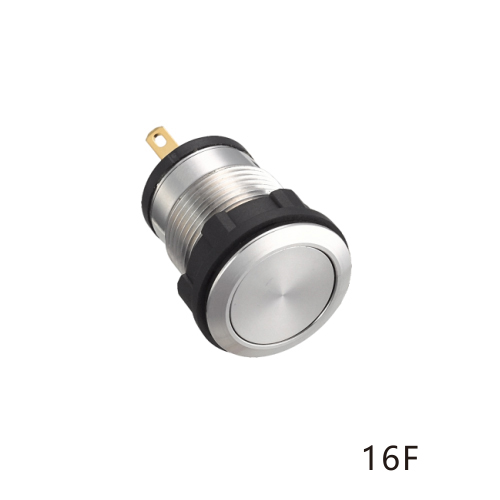

1

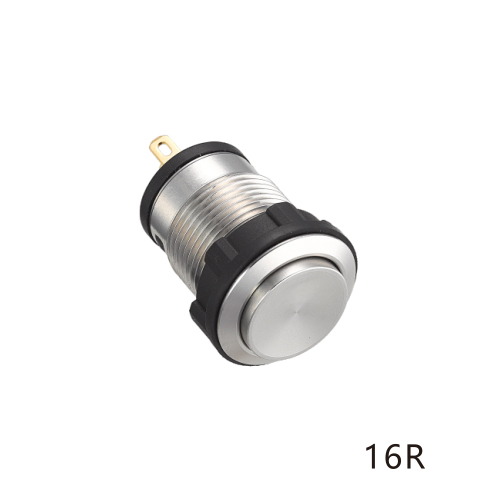

2

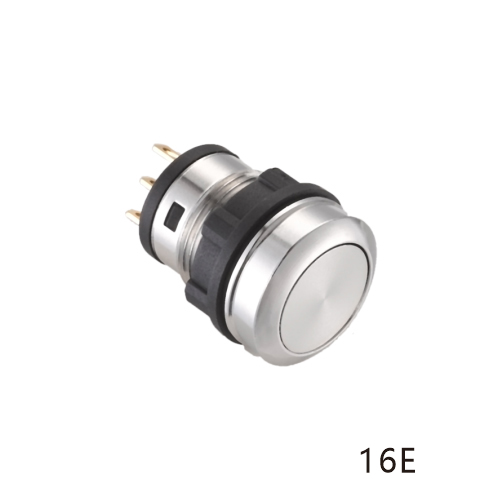

3
Model specifications

Product type

Function

Pushbuttons

Series

S16

Front

Style

Flush, Flush\extend, Rasied

From

Round

Mounting

Dimension

Φ16mm

Type

Panel mounting

Operating part

Lens colors

Red\green\yellow\blue\white\Amber\black

Illumination

Non-Illuminated

Switch Type

Switching action

Momentary/Maintained

Contacts

1NO+1NC

Terminal

Soldering/Tab terminal #110

Other

Protection   degreen

IP67

Complete Device/Components

Complete evice

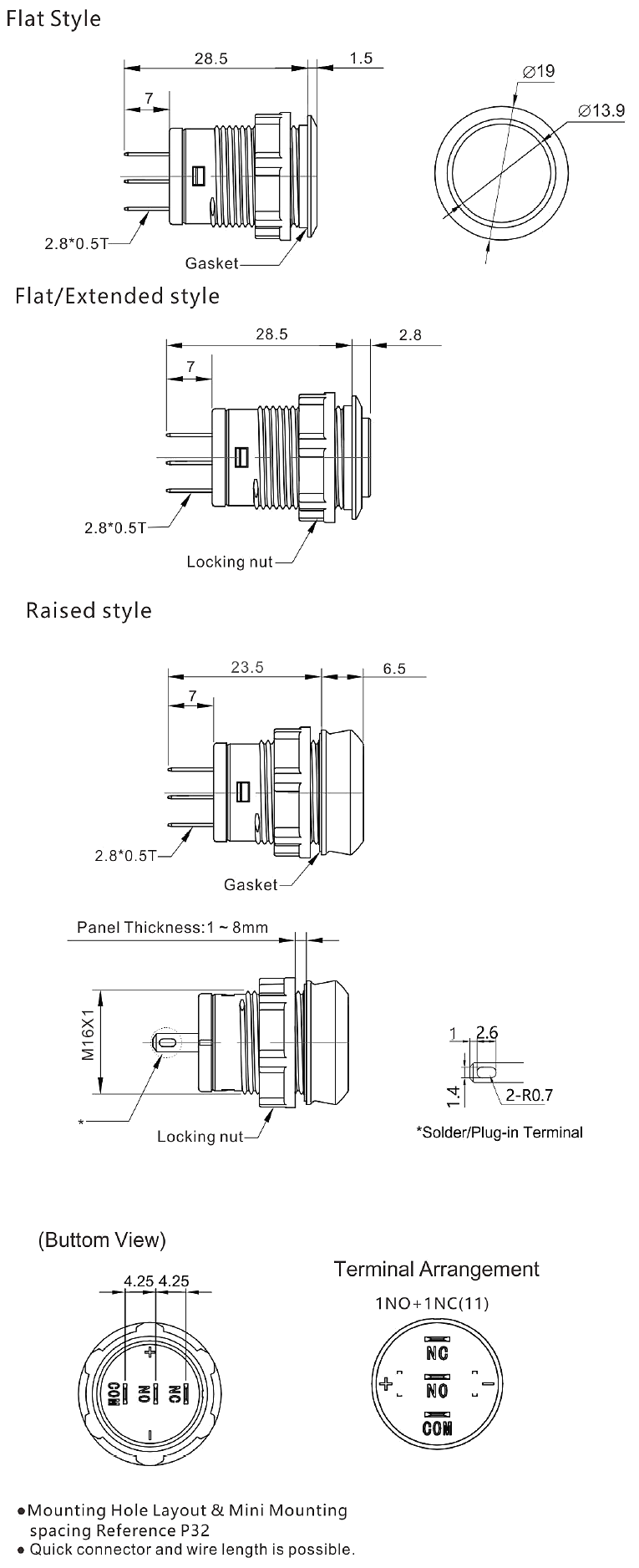

Dimensional drawing
S16 vandal resistant pushbuttons
Download
File name File type Update Date
S16 Pushbutton .PDF 01/04/2025 Download(516.41 KB)
