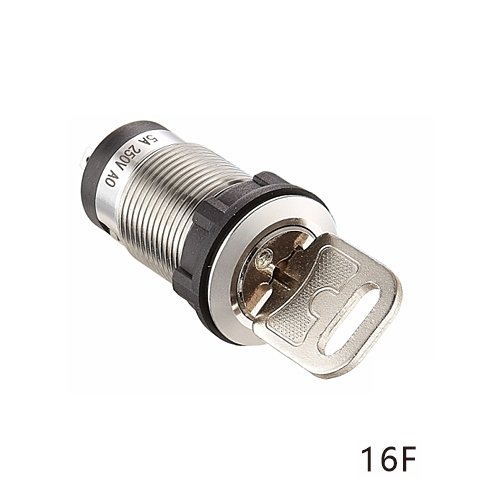

S16 vandal resistant key switches Key Switches
Φ16mm Vandal proof key switches, compact design
Features
● φ16mm
● Material:SUS304
● Switch rating:3A for 250VAC
● Contact:1NO+1NC
● 2Position
● IP67
● IEC/EN 60947-5-1
● IEC/EN 60073, IEC/EC 60529
1
Model specifications

Product type

Function

Key switches

Series

S16

Front

Style

Flush/Rasied

From

Round

Mounting

Dimension

Φ16mm

Type

Panel mounting

Operating part

Lens colors

Nature

Illumination

Non-Illuminated

Switch Type

Switching action

Momentary/Maintained

Switching position2 positions

Contacts

1NO+1NC

Terminal

Soldering/Tab terminal #110

Other

Protection   degreen

IP67

Complete Device/Components

Complete evice

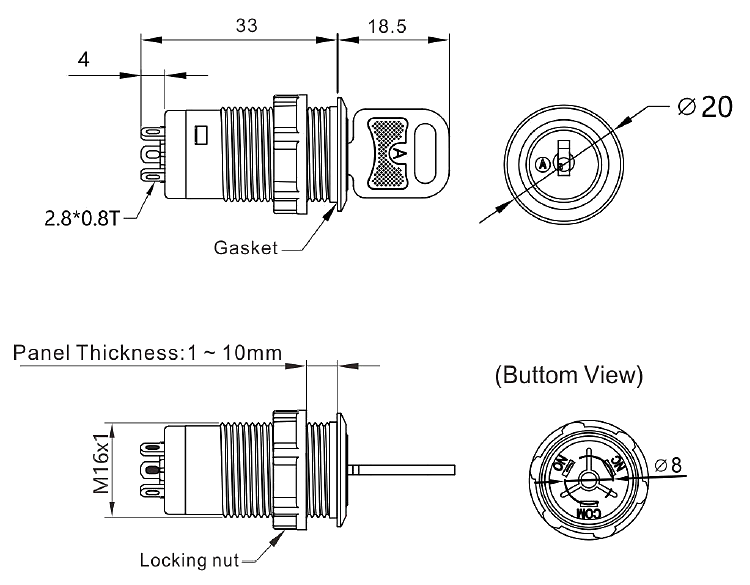

Dimensional drawing
S16 vandal resistant key switches
Download
File name File type Update Date
S16 Key Switches .PDF 01/04/2025 Download(545.07 KB)
