S19vandal resistant mushroom switches Mushroom switches
Φ19mm Vandal proof mushroom switches,Compact design, Combine rugged and style.
Features
● φ19mm
● Action: Momentary; Maintained
● Terminal: Solder/ Plug-in 2.8*0.5
● Silver alloy/ Gold plated silver alloy
● Contact: 1NO+1NC□2NO+2NC
● IP67
● IEC/EN60947-5-1,IEC/EN60073,IEC/EC60529

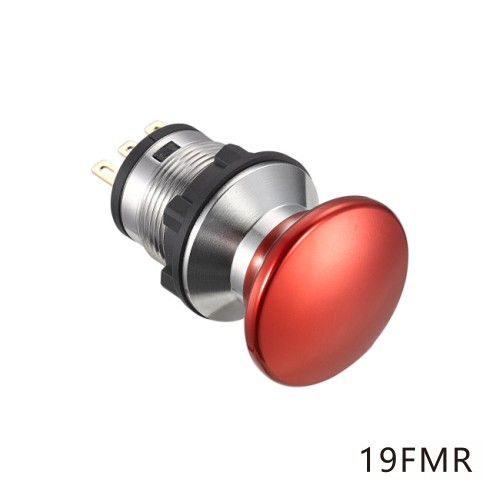

1
Model specifications

Product type

Function

Mushroom switches

Series

S19

Front

Style

Mushroom-head

From

Round

Mounting

Dimension

Φ19mm

Type

Panel mounting

Operating part

Lens colors

Red\green\yellow\blue\white\Amber\black

Illumination

Non-Illuminated

Switch Type

Switching action

Momentary/Maintained

Contacts

1NO+1NC,2NO+2NC

Terminal

Soldering/Tab terminal #110

Other

Protection   degreen

IP67

Complete Device/Components

Complete evice

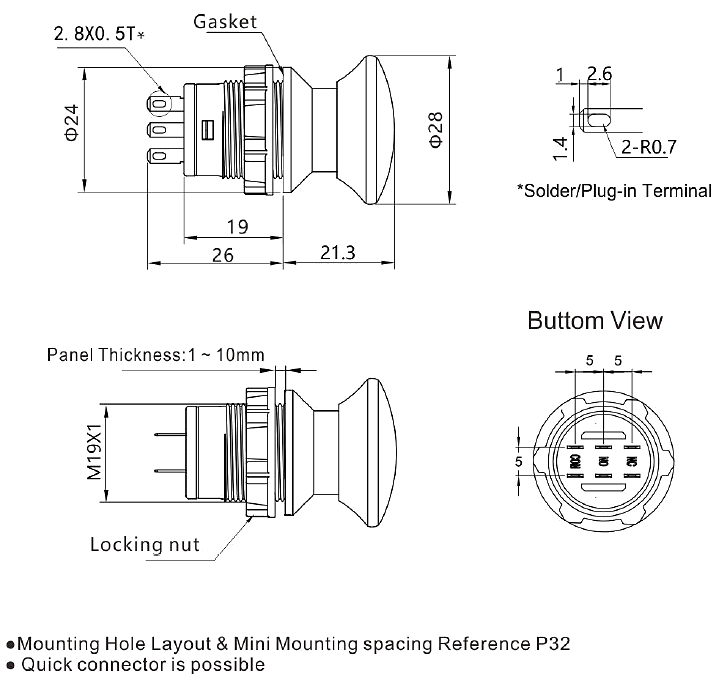

Dimensional drawing
S19vandal resistant mushroom switches
Download
File name File type Update Date
S19 Mushroom switches .PDF 01/04/2025 Download(630.11 KB)
