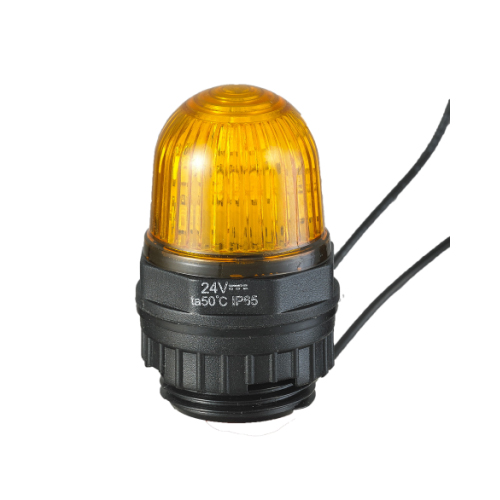

R30 Super mini dome indicator lamp Signal light
R30 Signal light are super mini dome lamp,
Features
● Smooth shade, prevent the deposition of dirt and dust on the surface
● Steady, LED high brightness source
● Seismic design, the equipment with large impact force.
● Easy installation, lock with nut
● IP65
1
Model specifications

Code

R30-D

Mounting Size

φ22mm

Working Voltage

24VACDC

Outline Size

30mm(Mimi Dome)

Function

Steady

Material

Lens-PC, Based-PA, Nut-PA

Operating
environment

Working Temperature:-20℃~+55℃ (No Freezing)
Humidity: 40~85%RH (No Condensation)
Store Temperature:-30℃~+8 0℃ (No Freezing)

Vibration resistance

10~55Hz, Amplitude    0.75mm

Color

Red, Green, Yellow, Blue, White

Connector type

M12quick connector    wire,0.3~0.5mm²

Useful life (reference)

30000 hrs (when    25℃, brightness is 50% below initial value)

Protection class

IP65

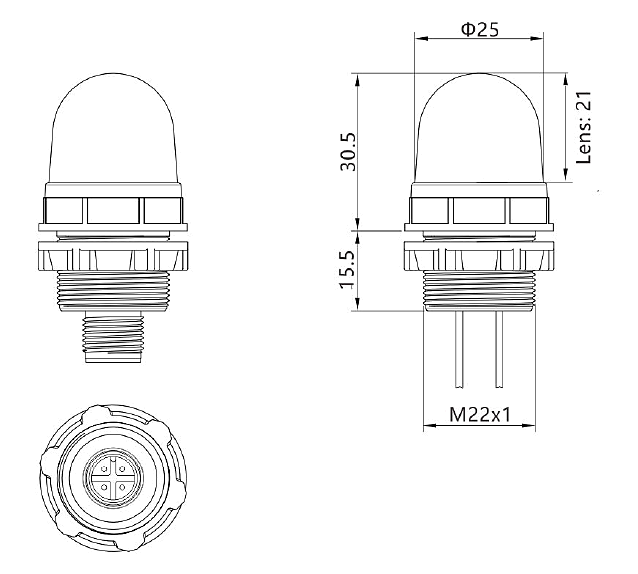

Dimensional drawing
R30 Super mini dome indicator lamp
Download
File name File type Update Date
R30 φ22mm Super Mini Dome lamp .PDF 12/30/2024 Download(664.47 KB)
