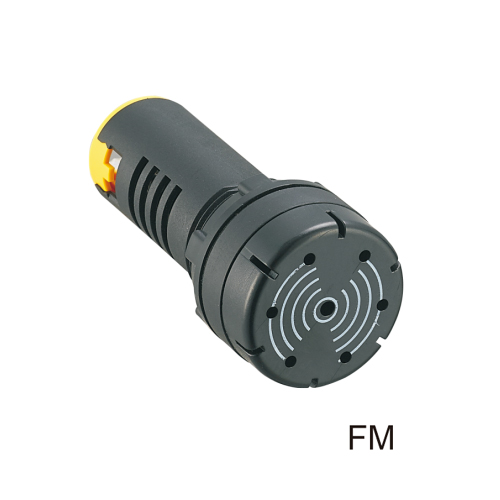

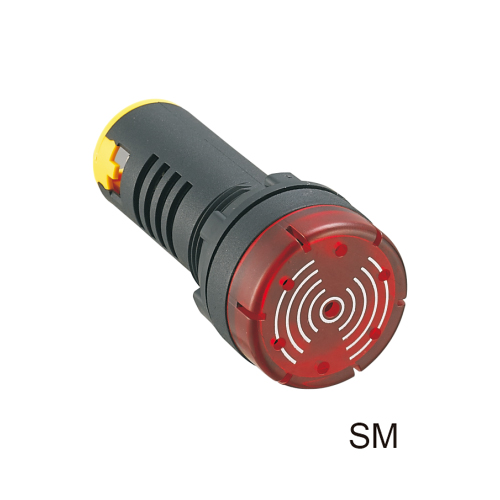

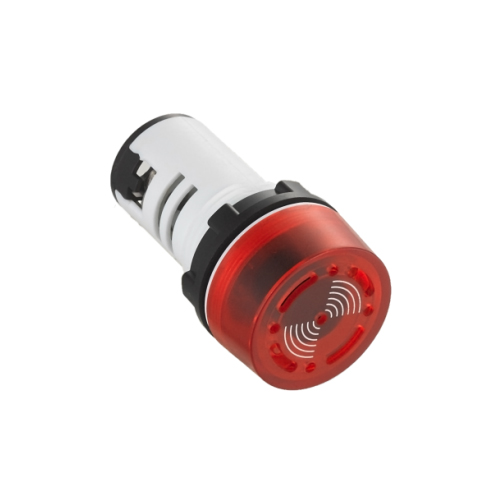

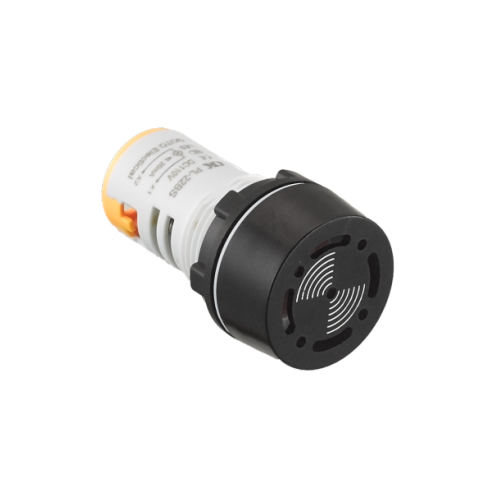

Type PL22 Buzzer and Flashing Buzzer
PL22 series Buzzer and flashing buzzer are applicated include industrial control panels of all types equipment indicator panles, status indicators and display lighting. the buzzer volume is 80dB@10cm
Features
● φ22mm
● Buzzer
● Continuous sound、 intermittent sound
● Flashing light
● AC and DC Voltage
● 80dB@10cm
● IEC/EN60947-5-1,IEC/EN60073,IEC/EN 60529
1
2
3
4
Model specifications

Product type

Function

Buzzer, Illuminated Buzzers

Series

PL22

Front

Style

Raised

From

Round

Mounting

Dimension

Φ22mm

Type

Panel mounting

Operating /LED   part

LENS colors

Black or Red

LENS typeB= High Lens；D= Low Lens

Illumination Colors

Red

Illumination   voltage

6VACDC\12VACDC\24VACDC\48VACDC \110VACDC \220VACDC

Other

Terminal

Soldering terminal

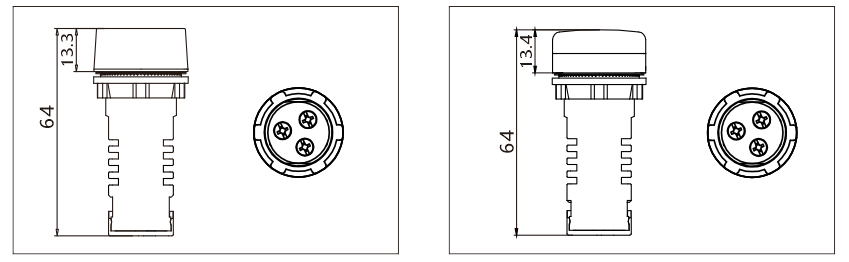

Dimensional drawing
Type PL22
Download
File name File type Update Date
Type PL22 Buzzer and Flashing Buzzer .PDF 01/07/2025 Download(658.53 KB)
