S25 Vandal resistant E-stop switches Emergency Stop Switches
Φ25mm vandal resistant Emergency stop swithes, compact design, Combine rugged and style.
Features
● The size of mush-room:φ32mm andφ40mm
● SUS316L stainless steel are available
● High resistance to vibration and impact
● Two ways of resetting-pulling and turning
● High IP67/69K protection
● Oiltight model are available
● Quickly connector and PCB connector are available
● TÜV CE RoHS

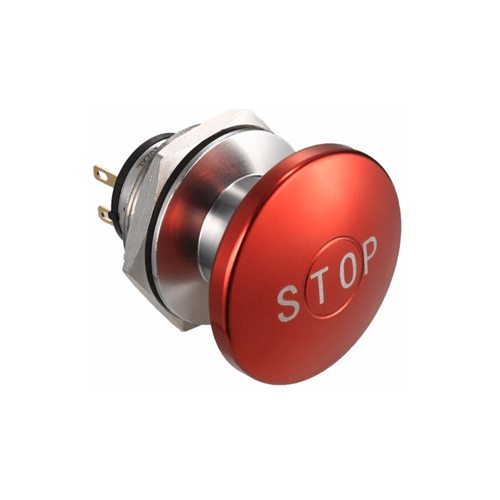

1
Model specifications


Product type

Function

Vandal resistant Emergency stop switches

Series

S25

Front

Style

Mushroom-head

From

Φ32mm\Φ40mm

Mounting

Dimension

Φ25mm

Type

Panel mounting

Operating/indicator    part

Lens colors

Aluminum oxidizes Red

Illumination

Non-Illumination

Switch Type

Switching action

Maintained

Release type

Twist to unlock

Contacts

1NO+1NC,2NC

Terminal

Soldering/Tab terminal #110, PC board, screw terminal, M12 quick   connector

Other

Protection     degreen

IP67

Complete   Device/Components

Complete evice

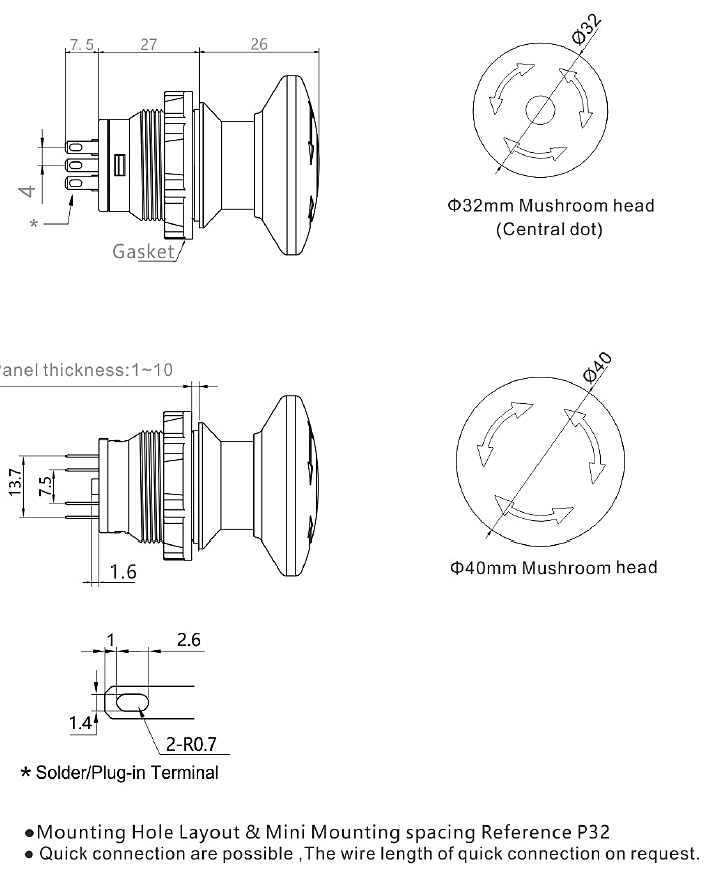

Dimensional drawing
S25 Vandal resistant E-stop switches
Download
File name File type Update Date
S25 Emergency Stop Switches .PDF 01/04/2025 Download(585.51 KB)
