S19 Vandal proof Pushbuttons
Pushbuttons are ideal for mechanical engineering, control engineering, public and private passenger transport, lifting and conveying systems, heavy duty and special vehicles, and the automotive industry.
Advantages
• Compact design,more convenient to use
• Silver/gold-plated silver contacts available for low voltages and currents
• Laser Markings are available for any symbol or text
• Excellent tactile feedback

Feature
• Φ19mm
• Housing made of sus304 stainless steel
• 3 Front forms: flat, flat/exten,Raised
• Solder tab compatible with 110# quick disconnects
• Up to 2PDT contacts
• Front protection up to IP67



Applications
Machinery
Automation
Medical
Control panel

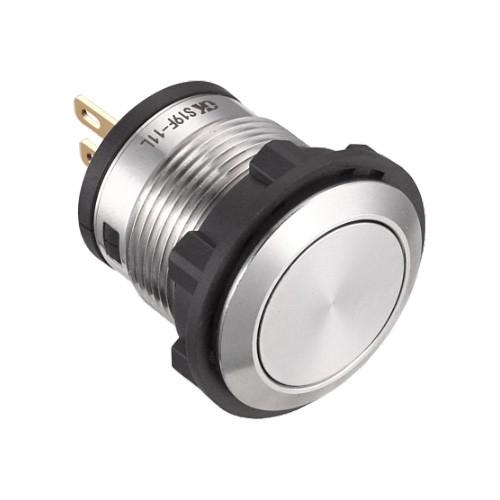

19F

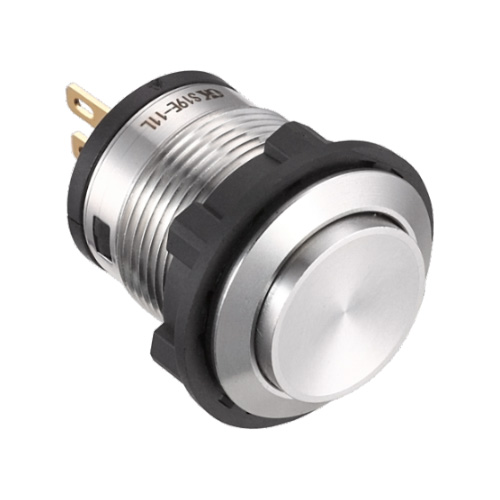

19R

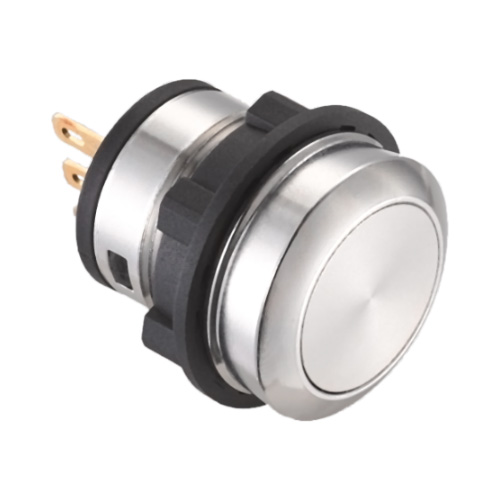

19E
Model specifications


Product type

Function

Non-Illuminated Pushbuttons

Series

S19

Front

Style

Rasied、Flush、Flat\extended

From

Round

Mounting

Dimension

Φ19mm

Type

Panel mounting

Operating part

Lens

SUS304

Illumination

Non-Illuminated

Switch Type

Switching action

Momentary/Maintained

Contacts

1NO+1NC,2NO+2NC,

Terminal

Soldering/plug-in 2.8*0.5

Other

Protection   degreen

IP67

Complete Device/Components

Complete evice


Dimensional drawing
S19 Vandal proof
Download
File name File type Update Date
S19 Varal proof switch & lamp .PDF 08/13/2025 Download(4.69 MB)
