Type PL22 indicators Indicator

PL22 series pilot lights use high-intensity LEDs. PL is avaiable in seven different front bezel, compact versions.

Features

● ∅22mm
● Compact versions
● Different colour chiose
● High brightens s pure colour LED
● High reliability and durability
● AC and Dc voltage
● Anti-interference surge, prevent false light

Model specifications

Product type	Function	Indicators
Product type	Series	PL22
Front	Style	Raised

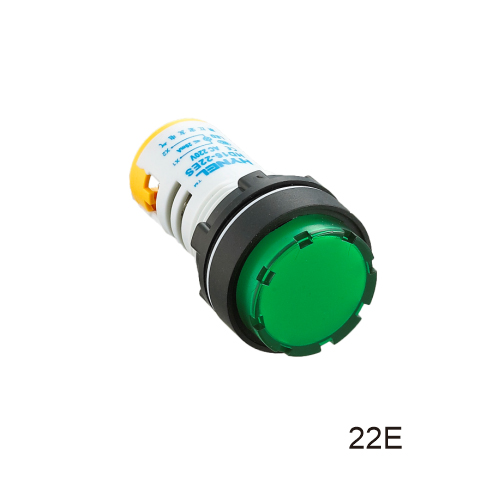

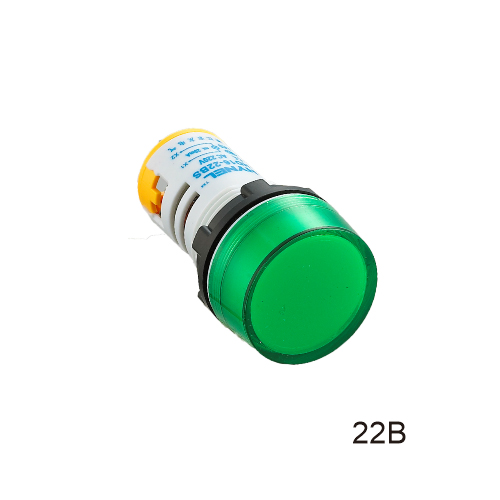

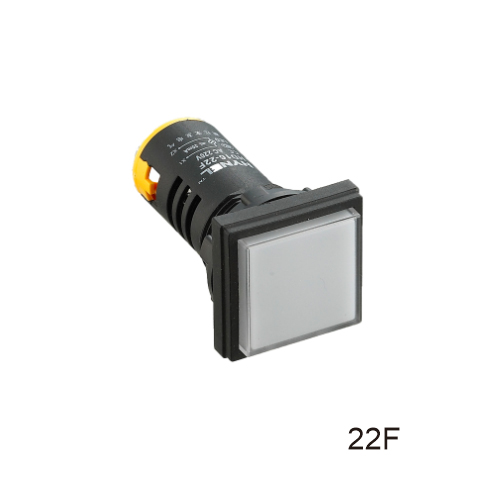

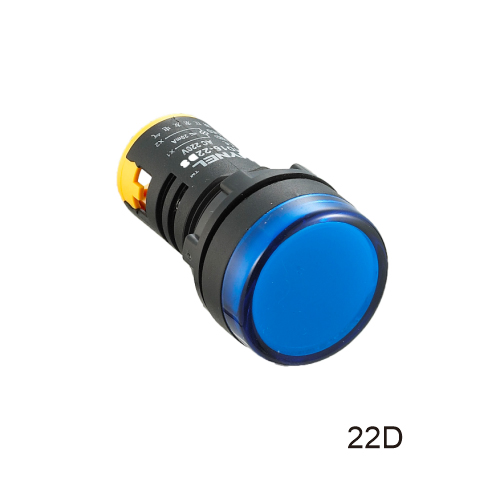

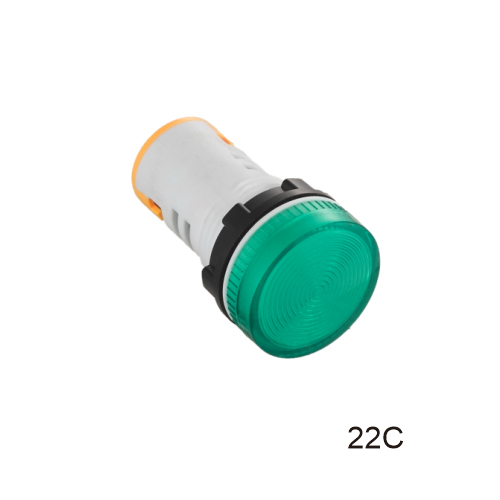

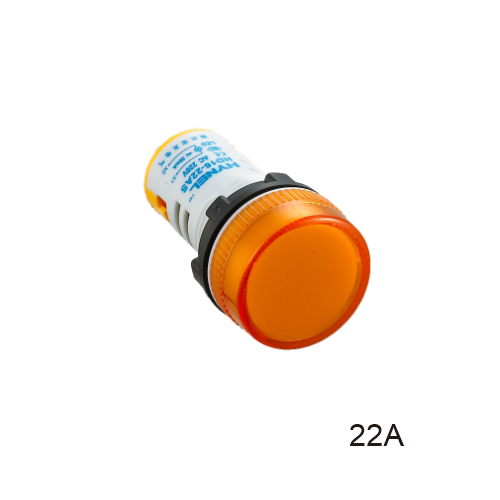

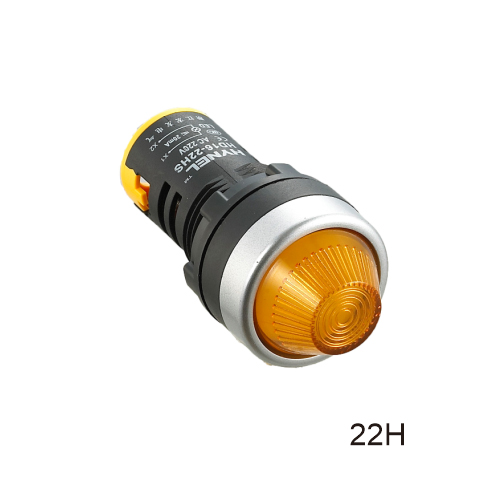

Front	From	A=High Lens1; B=High Lens; C=Low Lens curve; D=Low Lens flat;E= Teeth Lens; F= Squar Lens; H=Cone Lens
Mounting	Dimension	Φ22mm
Mounting	Type	Panel mounting
LENS/LED part	LENS colors	Red\Green\Yellow\Blue\White\Amber
	LENS type	A=High Lens1; B=High Lens; C=Low Lens curve; D=Low Lens flat;E= Teeth Lens; F= Squar Lens; H=Cone Lens
	Illumination Colors	Red\Green\Yellow\Blue\White\Amber
	Illumination voltage	6VACDC\12VACDC\24VACDC\48VACDC 110VACDC\220VACDC \380VAC
Other	Terminal	Soldering terminal

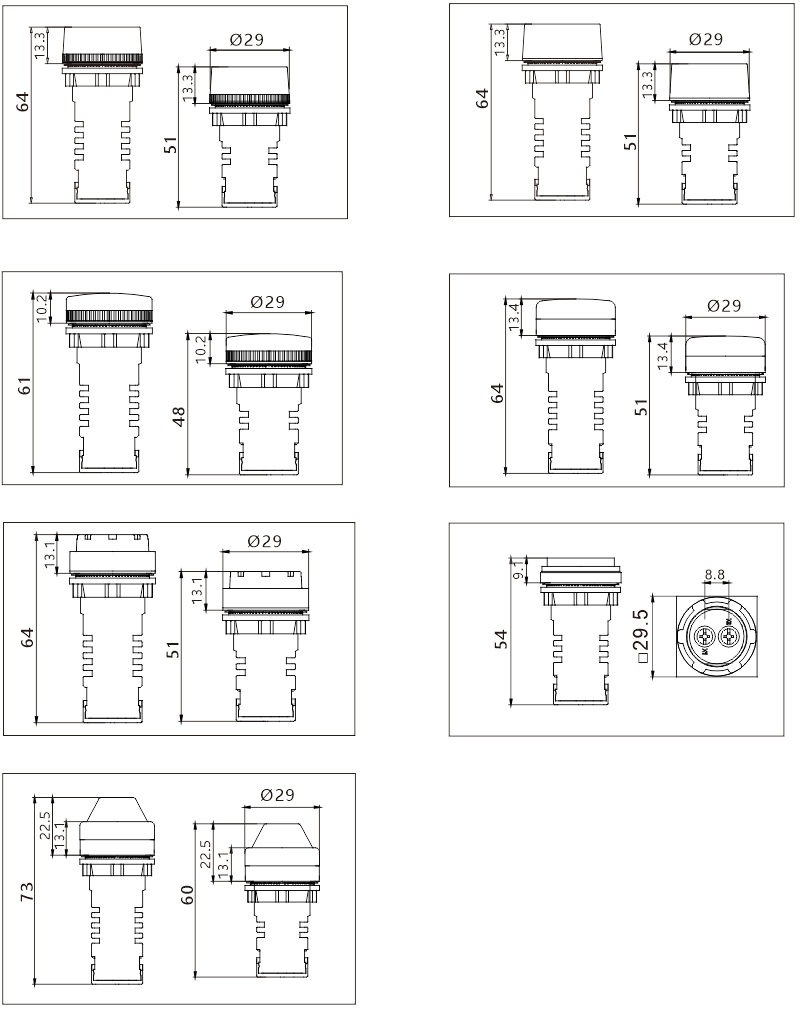

Dimensional drawing

Download

File name	File type	Update Date
Type PL22 Pilot Lights	.PDF	01/07/2025	Download(615.84 KB)
