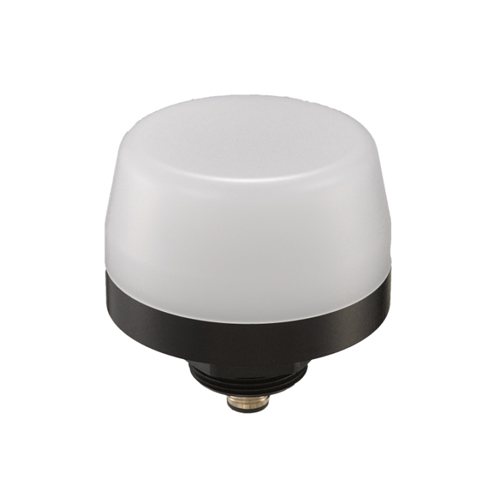

CF7 Multicolor indicator light LED Signal light Beacon
Φ70mm Multicolor Signal light Beacon,
Features
● Rugged, cost-effective, and easy-to-install multicolor indicators
● Get gentle yet noticeable notification with the soft light from the translucent lens.
● Translucent ivory Lens, eliminating false indication from ambient light when off
● All models have flashing input control
● Intense levels of light
● Models rated to IP67 and IP69K for use in harsh environments
1
Model specifications

Mounting Hole Diameter

φ70mm

Input Voltage

12VAC/DC ;24VAC/DC

Functions

Constant\ flashing

Material

Base: Aluminium(anodized), Lens: PC,  Nut-PA66

Output

NPN/PNP

Connection

M12 connector(Additional cable)/1.5M cable

Operating Temperature

-25℃+55℃ No Freezing

Storage Temperature

-40℃+70℃ No Freezing

Storage Temperature

40~85%RH No condensation

Vibration Resistance

10~55Hz, Amplitude 0.75mm

Installation Category

Direct Mounting(M30)

Rod Mounting

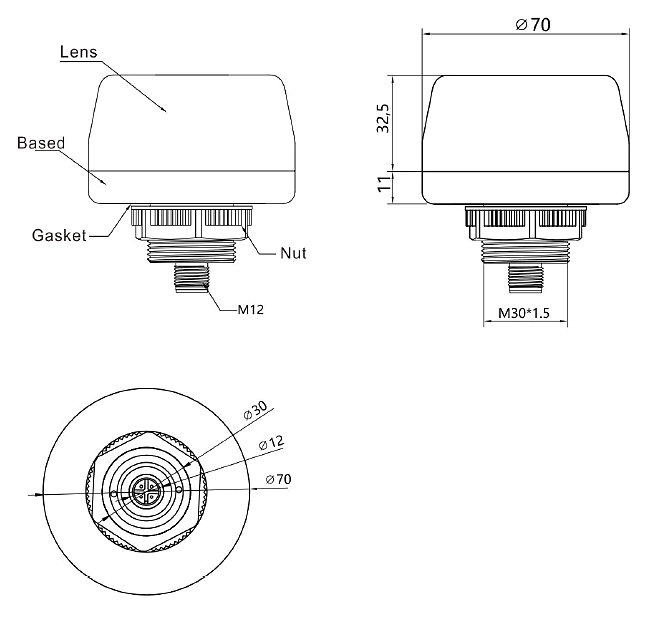

Dimensional drawing
CF7 Multicolor indicator light
Download
File name File type Update Date
CF7 φ70mm LED Signal Beacon .PDF 12/30/2024 Download(544.96 KB)
