PBH-22 I\O double switches l/O Push button Switches
Features
● φ22mm
● Compact design
● ON/OFF function
● I red and O green
● Yellow or White LED
● Spring return
● IEC/EN60947-5-1,UL508,IEC 73,IEC/EN60529

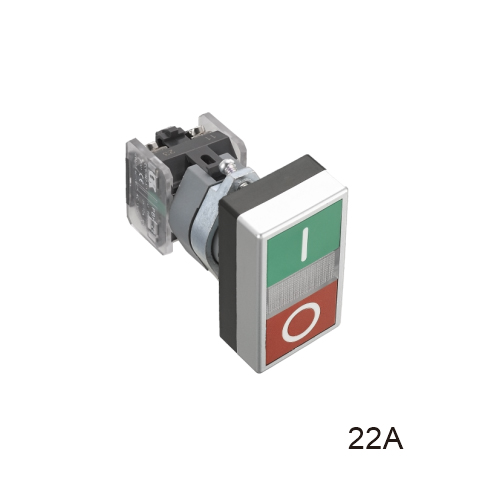

1

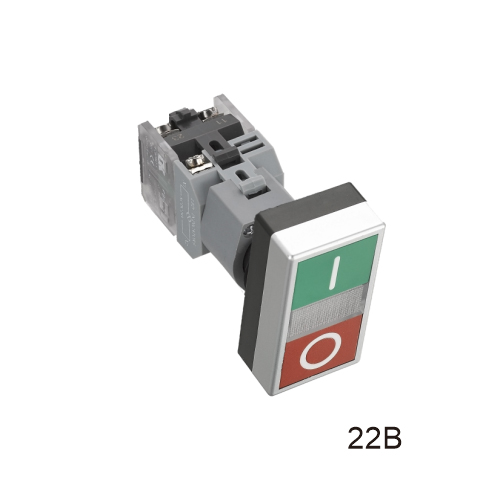

2

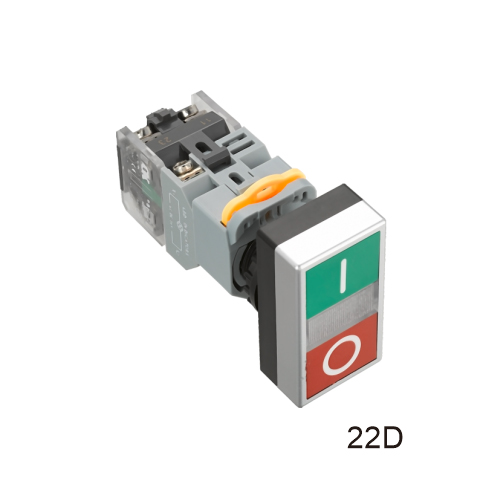

3
Model specifications

Product type

Function

I\O pushbutton switches

Series

PBH-22

Front

Style

Rasied

From

Rectangular

Mounting

Dimension

Φ22mm

Type

Panel mounting

Operating /LED part

Lens colors

Red-green

Illumination

Illuminated\Non-Illuminated

Illumination Colors

Yellow\White

Illumination   voltage

6VACDC\12VACDC\24VACDC\48VACDC

110VACDC\220VACDC

Switch Type

Switching action

Momentary

Contacts

1NO+1NC,2NO+2NC,3NO+3NC

Terminal

screw terminal

Other

Protection degree

IP54

Complete     Device/Components

Complete Device

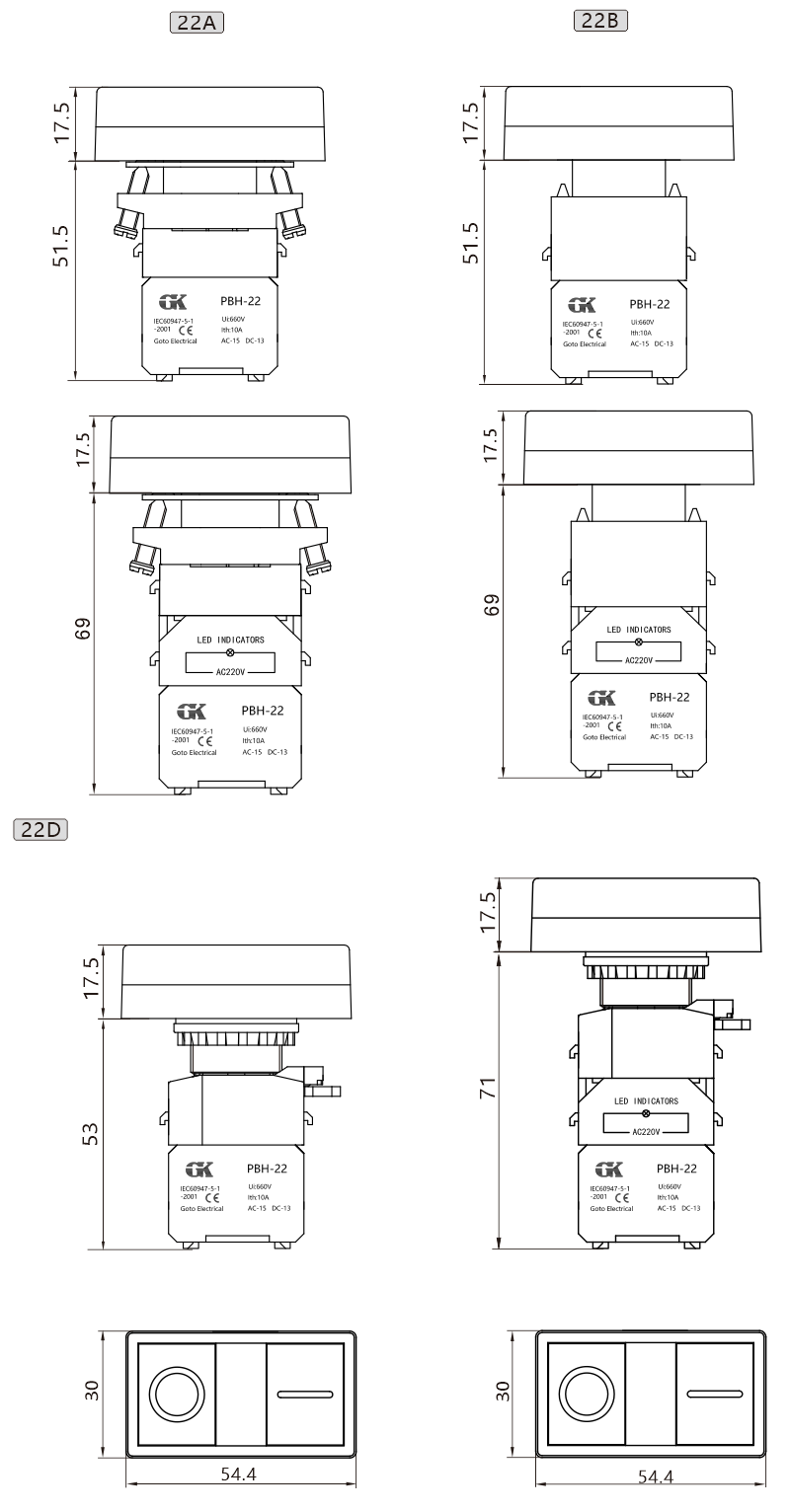

Dimensional drawing
PBH-22 I\O double switches
Download
File name File type Update Date
Type PBH lO Push button Switches .PDF 01/07/2025 Download(510.97 KB)
