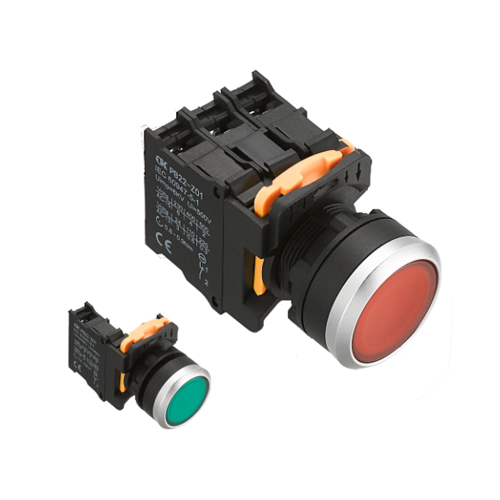

PB-22 pushbuttons Pushbuttons/llluminated Pushbuttons
Features
● φ22mm
● Front bezel (Aluminium): circular
● Momentary & Maintained
● Wide range of lenses and lens coloursLED illumination
● IEC/EN60947-5-1,UL508,IEC/EN 60073,IEC/EN60529
1
Model specifications

Product type

Function

Illuminated Pushbuttons

Series

PB-22

Front

Style

Rasied

From

Round

Mounting

Dimension

Φ22mm

Type

Panel mounting

Operating /LED part

Lens colors

Red\green\yellow\blue\white\Amber\black

Illumination shape

Lens

Illumination Colors

Red\Green\Yellow\Blue\White\Amber

Illumination   voltage

6VACDC\12VACDC\24VACDC\48VACDC

110VACDC\220VACDC

Switch Type

Switching action

Momentary/Maintained

Contacts

1NO+1NC,2NO+2NC,3NO+3NC

Terminal

screw terminal

Other

Protection degree

IP54

Complete   Device/Components

Complete Device

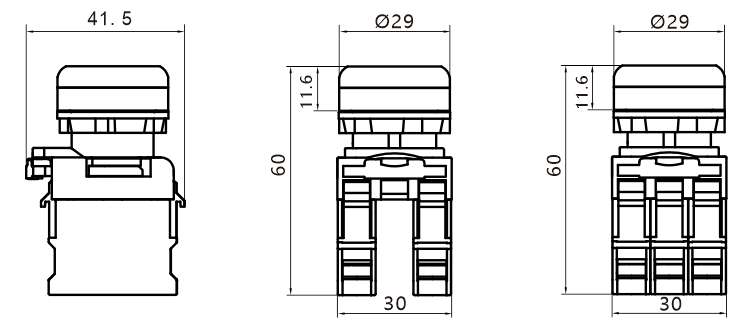

Dimensional drawing
PB-22 pushbuttons
Download
File name File type Update Date
Type PB Pushbuttonsllluminated Pushbuttons .PDF 01/07/2025 Download(654.8 KB)
