S19 vandal resistant indicator indicator
Φ19mm Vandal proof pilot lamp are used worldwide where reliable visual feedback is required.indicators can be used universally, and feature impressive,intuitive visualisation and a high quality of workmanship.
Features
● φ19mm
● Translucent face appears gray when off, to avoided false indication from ambient light.
● Si-color, Bi-color, Tri-color are available
● Models rated to IP68 and IP69K for use in harsh environments
● M12 connector are available
● Available with PNP or NPN input, depending on model

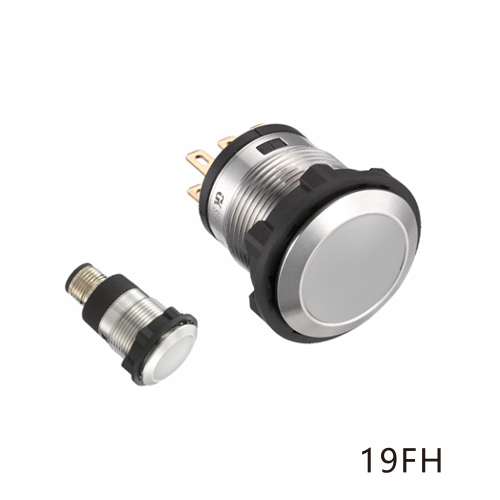

1

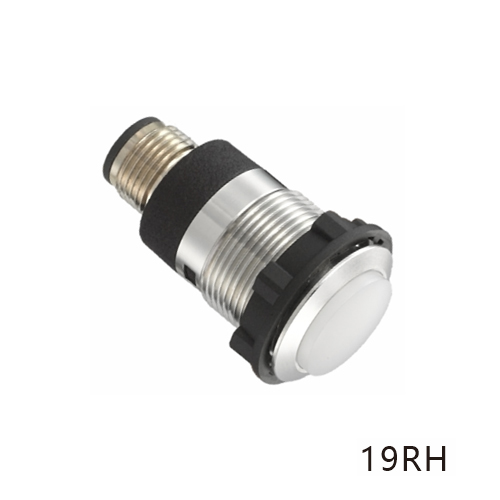

2
Model specifications

Product type

Function

Indicator

Series

S19

Front

Style

Flush,Rasied

From

Round

Mounting

Dimension

Φ19mm

Type

Panel mounting

Operating/LEN   part

Lens colors

opaque

LED colors

Red\green\yellow\blue\white\amber

LED voltage

6VACDC\24VACDC\110VACDC\220VACDC

Other

Terminal

Solder tab compatible with 110# quick disconnects

Protection degreen

IP67

Complete   Device/Components

Complete Device

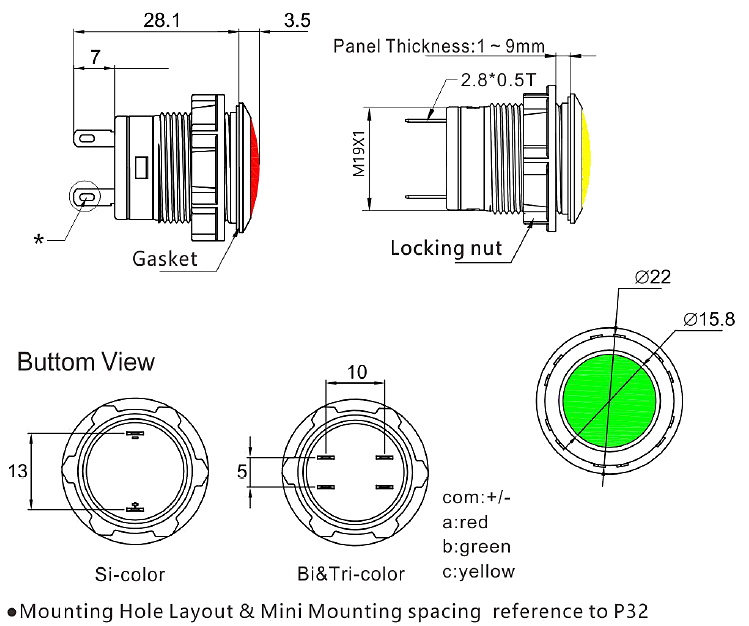

Dimensional drawing
S19 vandal resistant indicator
Download
File name File type Update Date
S19 Pilot lamp .PDF 01/04/2025 Download(630.11 KB)
