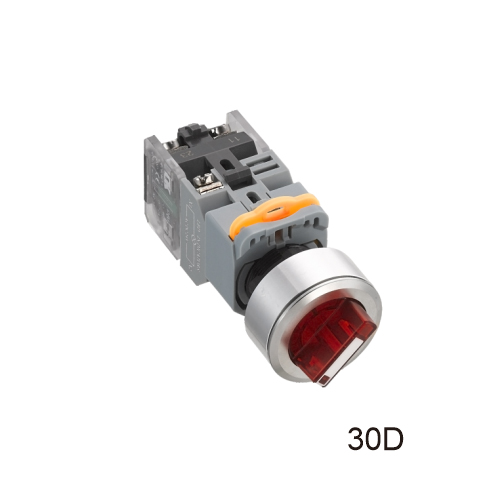

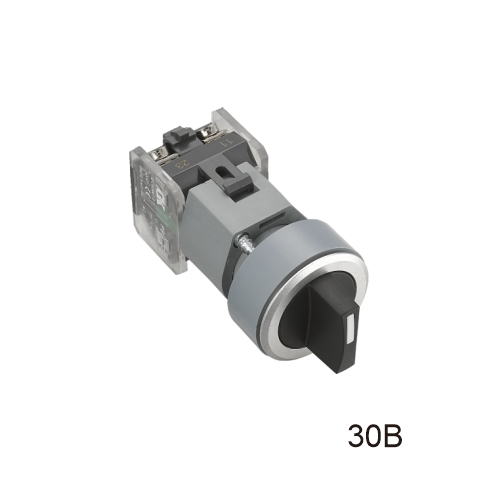

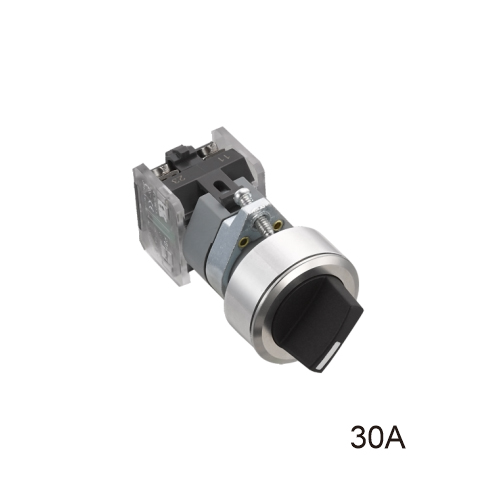

PBH-30 Flush short selector switches Short-handle Selector Switches

Features

● φ22mm
● Front bezel (Aluminium): standard, circular
● Holder : Metal, Plastic, Nut
● Self-hold or spring return
● Knob colour choise
● Two and three positions
● Illuminated type choise
● IEC/EN60947-5-1,UL 508,IEC/EN 60073,IEC/EN 60529

Model specifications

Product type	Function	Selector switches\Illuminated Selector switches
Product type	Series	PBH-30
Front	Style	Flush
Front	From	Round
Mounting	Dimension	Φ30mm
Mounting	Type	Panel mounting
Operating /LED part	Lens colors	Red\green\yellow\blue\white\Amber
	Illumination	NON-illuminated\illuminated
	Illumination Colors	Red\Green\Yellow\Blue\White\Amber
	Illumination voltage	6VACDC\12VACDC\24VACDC\48VACDC 110VACDC\220VACDC
Switch Type	Switching action	Momentary/Maintained
	Switching positions	2 positions\3 positions
	Contacts	1NO+1NC,2NO+2NC,3NO+3NC
	Terminal	Soldering/Tab terminal #110, PCB board, screw terminal, M12 quick connector
Other	Protection degree	IP67
Other	Complete Device/Components	Complete Device

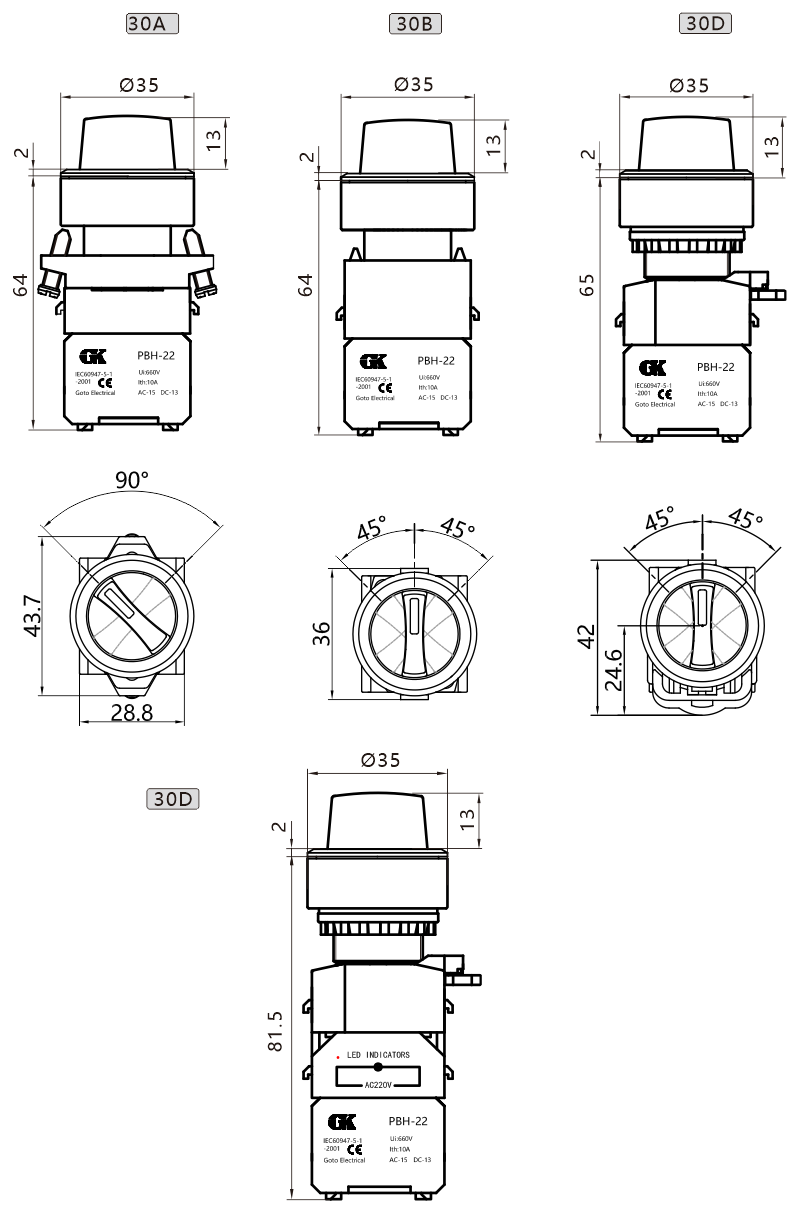

Dimensional drawing

Download

File name	File type	Update Date
Type PBH Short-handle Selector Switches	.PDF	01/07/2025	Download(603.95 KB)
