TLM6S Signal tower light Signal Tower Light
TLM6S series are Φ60mm signal tower light, which are realize that the LED units and Sound unis can be combined freely.
Features
● Re-designed lens and improved module construction delivering bright, even light for visibility from further distances.
● Modular design and Removeable screwless terminal simplifies the wiring process
● Built-in Buzzer, optional 90dB at 1m
● Available in of black housing and transparent Lens
● M12 connector for easy installation
● IP67 water and dust resistance
● NPN/PNP open-collector.

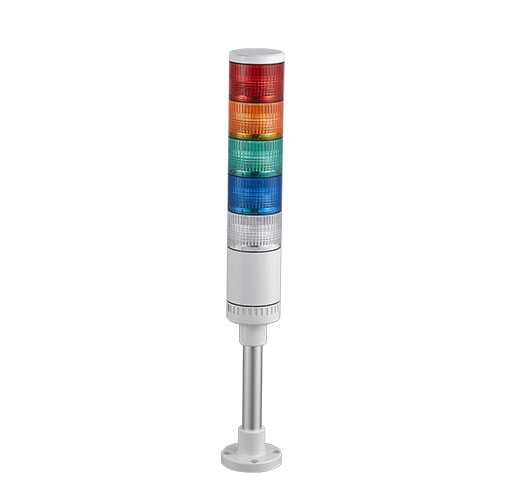

TLM6S-P

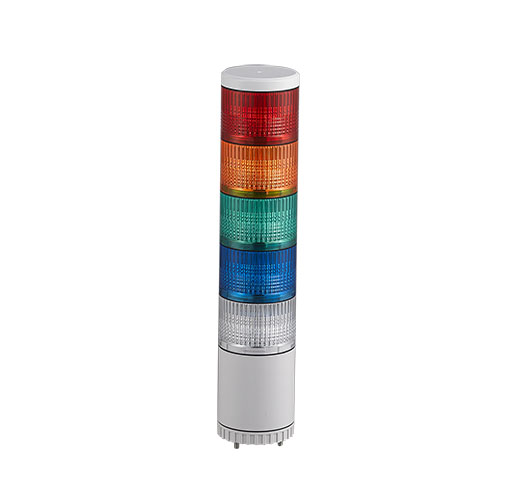

TLM6S-W
Model specifications

Outline Size

φ60mm

Input Voltage

12VAC/DC;24VAC/DC;110VAC;220VAC

Function Available

Steady, Flashing, Buzzer

Material

Lens-PC, Cover/ Body-ABS/PC

LED Unit Tiers

5 tiers

LED Unit Color

Red, Green, Yellow, Blue, White

Work Temperature

-15℃~+40℃ (No Freezing)

Store Temperature

-20℃~+70℃ (No Freezing)

Humidity

40~85%RH (No condensation)

Vibration resistance

10~55Hz,Amplitude 0.75mm

Installation category

Direct Mount:3-point hole mounting

Pole mount:L-bracket; circular bracket; folding bracket

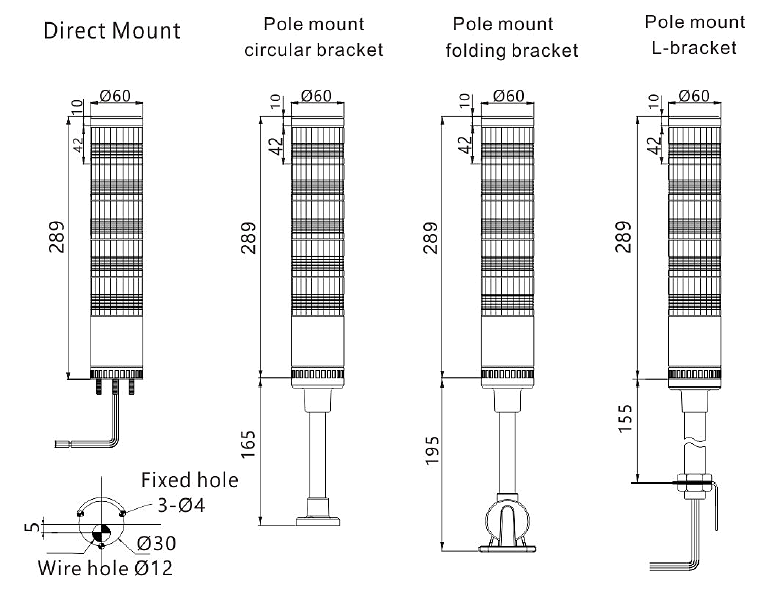

Dimensional drawing
TLM6S Signal tower light
Download
File name File type Update Date
TLM φ60mm Signal Tower Light .PDF 12/30/2024 Download(740.93 KB)
