PBH-22 series long-handle selector switches Long-handle Selector Switches
Features
● φ22mm
● Front bezel (Aluminium): standard, circular
● Holder : Metal, Plastic, Nut
● Self-hold or spring return
● Two and three positions
● IEC/EN 60947-5-1,UL508,IEC/EN60073,IEC/EN60529

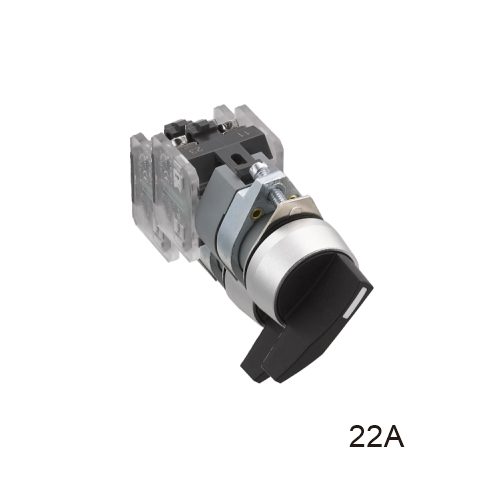

1

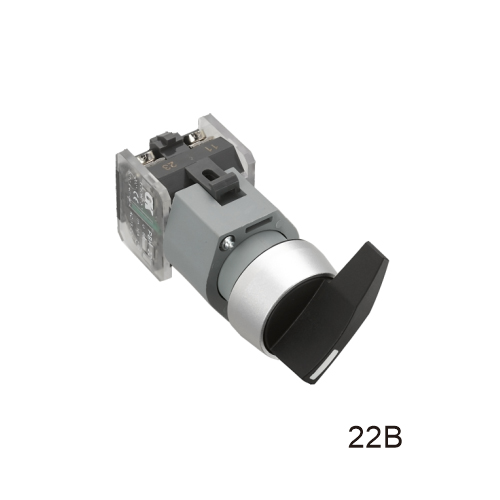

2

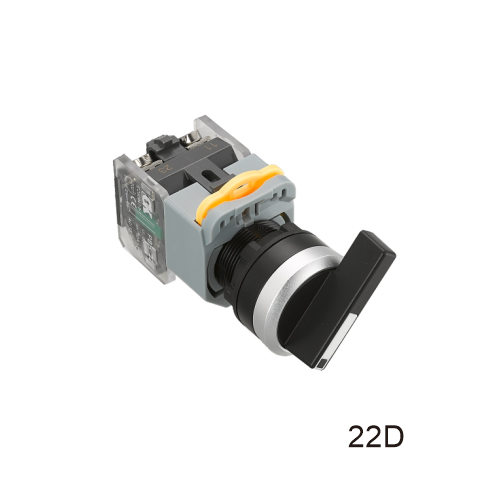

3

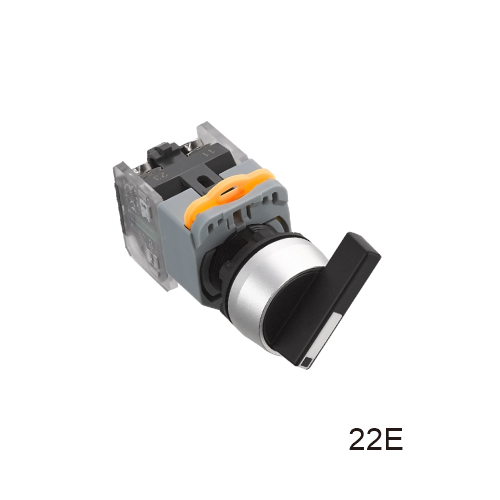

4
Model specifications

Product type

Function

Selector switches long handle

Series

PBH-22

Front

Style

Rasied

From

Round

Mounting

Dimension

Φ22mm

Type

Panel mounting

Operating /LED part

Lens colors

black

Illumination shape

Mushroom-head

Switch Type

Switching action

Momentary/Maintained

Switching positions2 positions\3 positions

Contacts

1NO+1NC,2NO+2NC,3NO+3NC

Terminal

screw terminal

Other

Protection degree

IP54

Complete     Device/Components

Complete Device

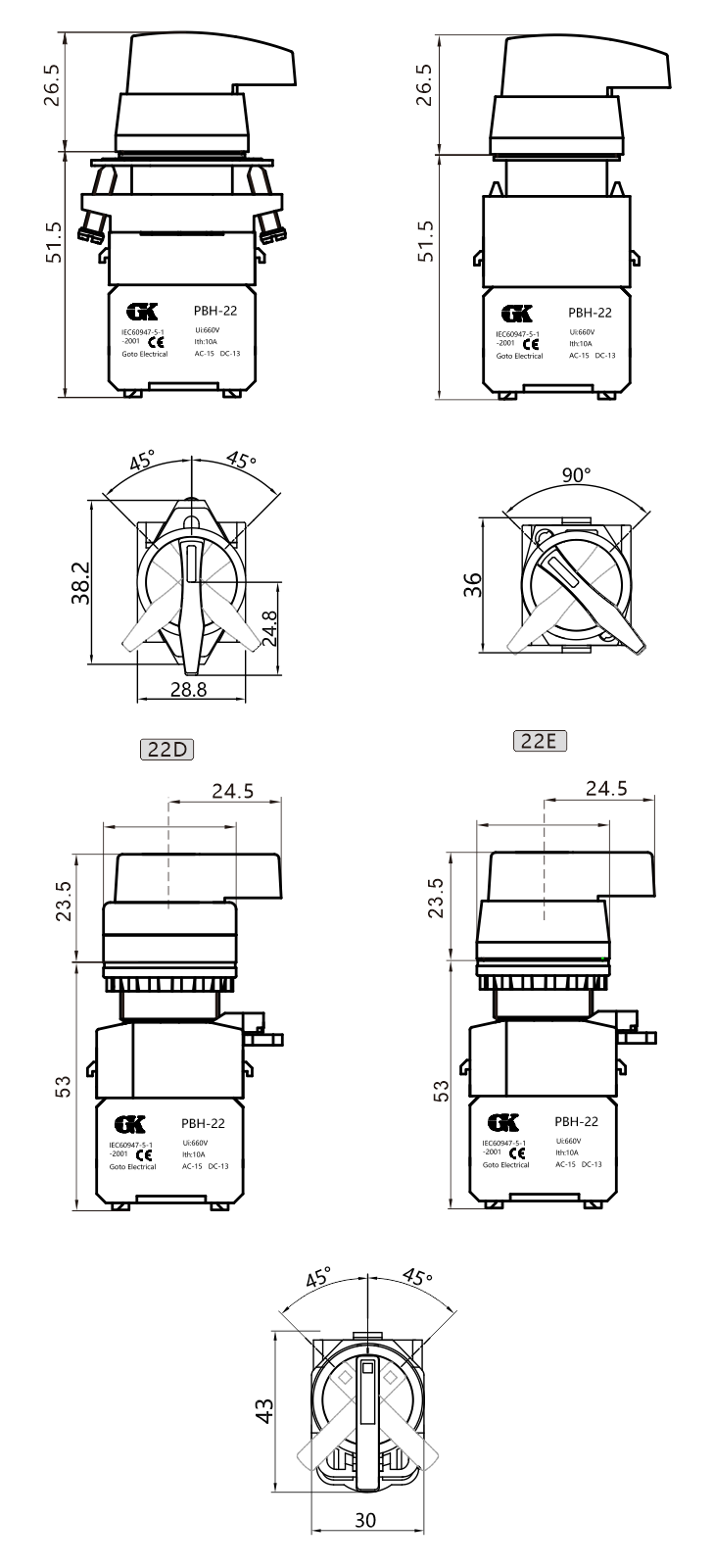

Dimensional drawing
PBH-22 series long-handle selector switches
Download
File name File type Update Date
Type PBH Long-handle Selector Switches .PDF 01/07/2025 Download(557.03 KB)
