PBH-22 series type pushbuttons Pushbuttons
PBH series switches are with a round 22/30mm adapter,the sturdy and modular 22mm PBH series is a versatile mid-range group of push buttons, illuminated push buttons to serve the 30mm flush mount switch market. Utilizing three different holder methods
Features
● φ22mm
● Front bezel (Aluminium) : standard, circular
● Holder: Metal, Plastic, Nut
● Momentary & Maintained
● Wide range of lenses and lens colours
● Bright , single or bi-color LED illumination
● IEC/EN60947-5-1,UL 508,IEC/EN 60073,IEC/EN60529

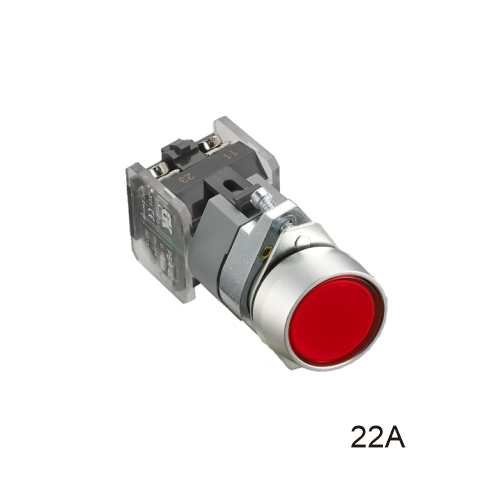

1

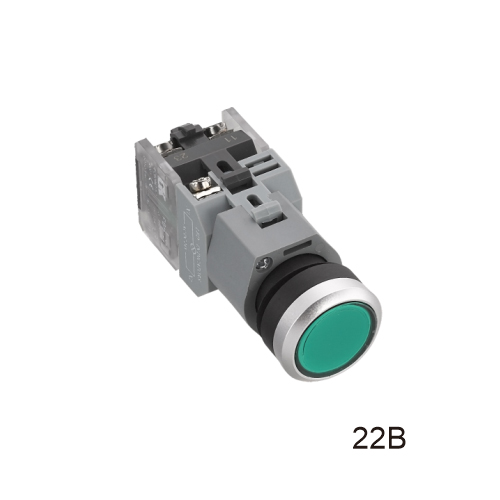

2

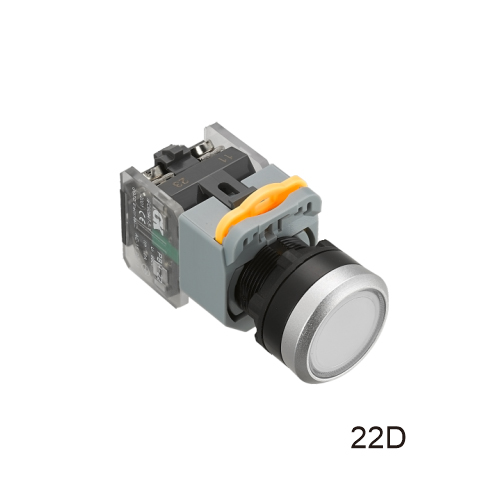

3

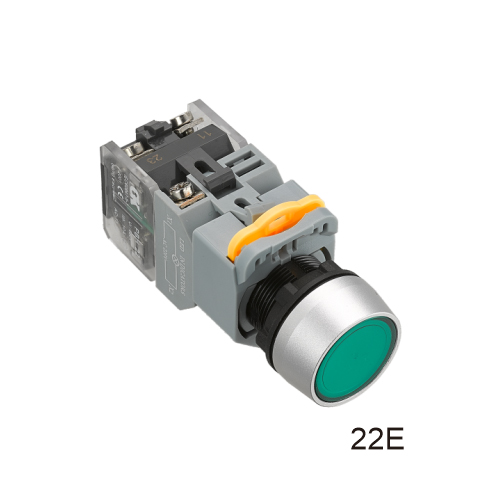

4
Model specifications

Product type

Function

Illuminated Pushbuttons

Series

PBH-22

Front

Style

Rasied

From

Round

Mounting

Dimension

Φ22mm

Type

Panel mounting

Operating /LED part

Lens colors

Red\green\yellow\blue\white\Amber

Illumination shape

Lens

Illumination Colors

Red\Green\Yellow\Blue\White\Amber

Illumination   voltage

6VACDC\12VACDC\24VACDC\48VACDC

110VACDC\220VACDC

Switch Type

Switching action

Momentary/Maintained

Contacts

1NO+1NC,2NO+2NC,3NO+3NC

Terminal

screw terminal

Other

Protection degree

IP67

Complete   Device/Components

Complete Device

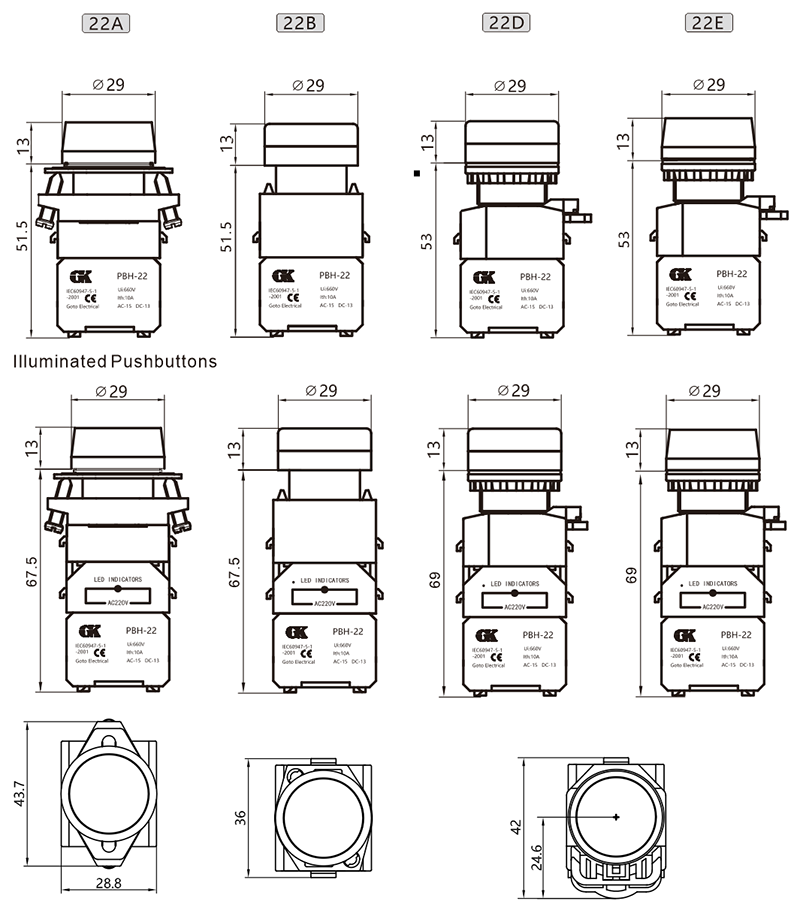

Dimensional drawing
PBH-22 series type pushbuttons
Download
File name File type Update Date
Type PBH Pushbuttonsllluminated Pushbuttons .PDF 01/07/2025 Download(696.04 KB)
