PBH-30 Flush stop switches Stop Switch
Stop switches are different from emergency stop switches because they do not have to be foolproof. Thanks to their snap-action element, they are particularly suitable for use as on/off switches worldwide in mobile control units as well as in apparatu
Features
● φ30mm
● The color of mushroom can be black
● Holder : Metal, Plastic, Nut
● Marking are aivilable
● Push to lock, turn clockwise to reset
● φ40mm Mushroom shape
● IEC/EN 60947-5-1,UL 508,IEC/EN 60073,IEC/EN 60529

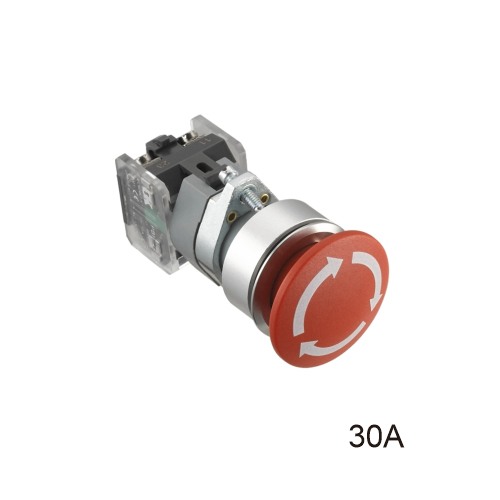

1

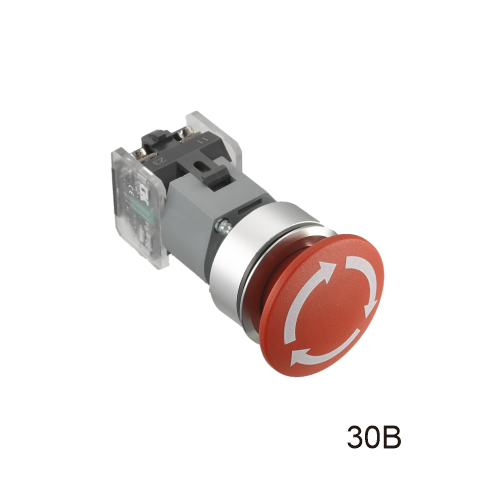

2

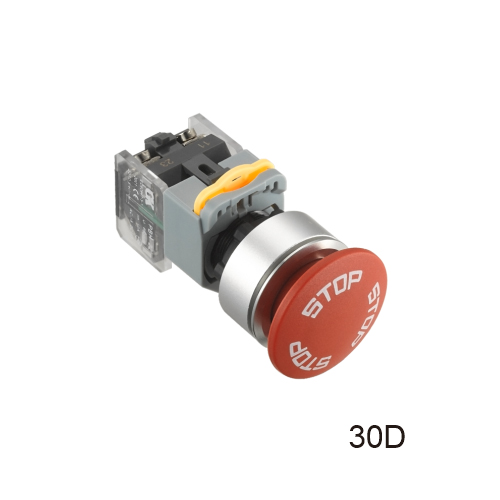

3
Model specifications

Product type

Function

Stop switches

Series

PBH-30

Front

Style

Flush

From

Round

Mounting

Dimension

Φ30mm

Type

Panel mounting

Operating /LED part

Lens colors

Red

Illumination shape

Mushroom-head

Switch Type

Switching action

Maintained

Release typeTwist to unlock clockwise

Contacts

1NO+1NC,2NO+2NC,3NO+3NC

Terminal

screw terminal

Other

Protection degree

IP54

Complete     Device/Components

Complete Device




Dimensional drawing
PBH-30 Flush stop switches
Download
File name File type Update Date
Type PBH Emergency Stop Switch .PDF 01/07/2025 Download(725.11 KB)
