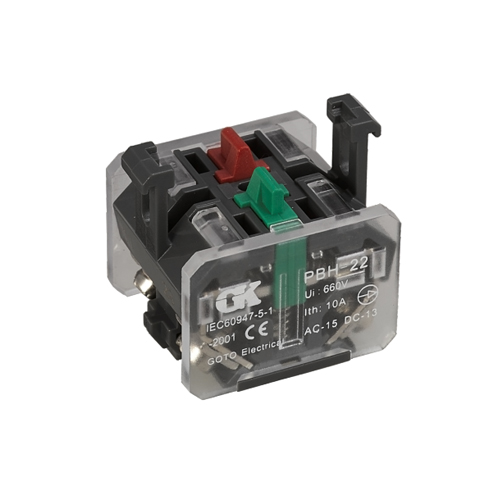

Type PBH Contact Block
Features
● High switching power
● Double switch
● Industrial applications
● Up to 500VAC
● 10A switching capacity
● Modular mounting(up to 3 elements)
● Screw terminals
● High reliability
● IEC/EN60947-5-1,IEC/EN60947-5-5
1
Model specifications

Contact Reatings

Contact CapacityRated insulation Voltage Ui660V
Thermal Current Ith10A
Operating Voltage24V48V60V110V220V380V
Operating CurrentDC-136A3A-1A0.5A-
AC-15---10A6A3A

Minimum applicable load(reference value):3V AC/DC·1 mA
Contact Material: Silver&Gold-Silver

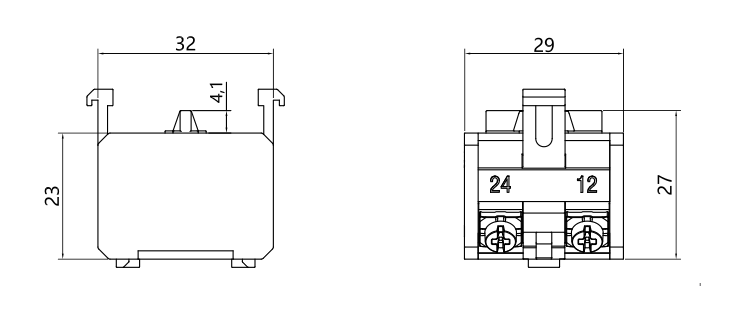

Dimensional drawing
Type PBH
Download
File name File type Update Date
Type PBH Contact Block .PDF 01/07/2025 Download(1.23 MB)
