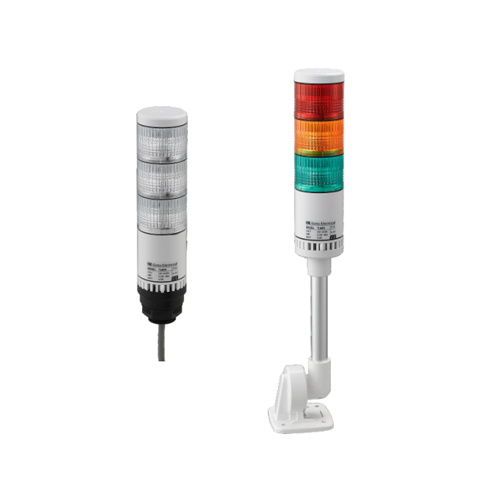

TLM5S Signal tower light Signal Tower light
TLM5S series are Φ50mm signal tower light, which are realize that the LED units and Sound unis can be combined freely.
Features
● Re-designed lens and improved module construction delivering bright, even light for visibility from further distances.
● Modular design and Removeable screwless terminal simplifies the wiring process
● Built-in Buzzer ,optional 85dB at 1m
● Available in of black housing and transparent Lens
● M12 connector for easy installation
● IP67 water and dust resistance
● NPN/PNP open-collector
1
Model specifications

Outline Size

φ50mm

Input Voltage

12VAC/DC;24VAC/DC;110V    AC;220V AC

Function Available

Bright, Flashing, Buzzer

Material

Lens-PC, Body-ABS; M30-Aluminum,

LED Unit Tiers

5 tiers

LED Unit Color

Red, Green, Yellow, Blue, White

Work Temperature

-15℃~+40℃ (No Freezing)

Store Temperature

-20℃~+70℃(No Freezing)

Humidity

40~85%RH (No condensation)

Vibration resistance

10~55Hz, Amplitude 0.75mm

Installation category

Direct Mount:M30 nut or 3-point hole mounting

Pole mount:L-bracket; circular bracket; folding bracket

Protection class

IP67

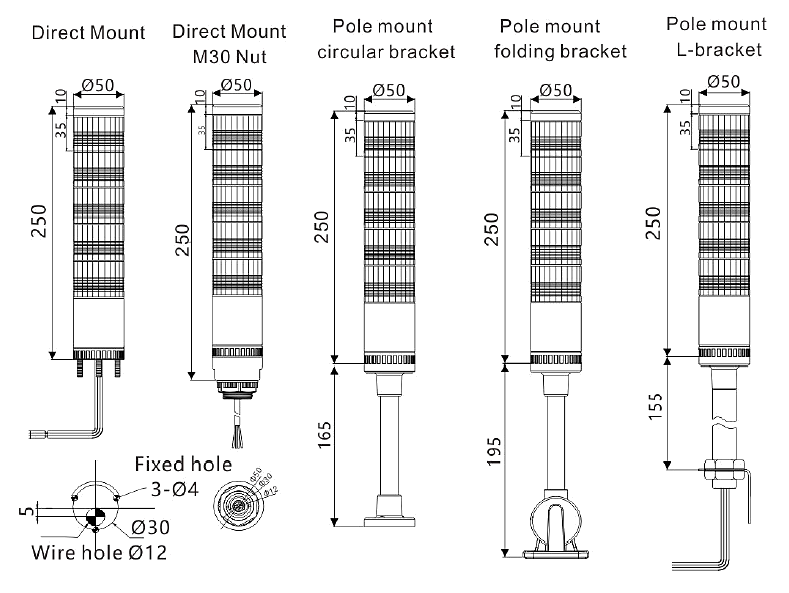

Dimensional drawing
TLM5S Signal tower light
Download
File name File type Update Date
TLMS φ50 Signal Tower light .PDF 12/30/2024 Download(796.41 KB)
