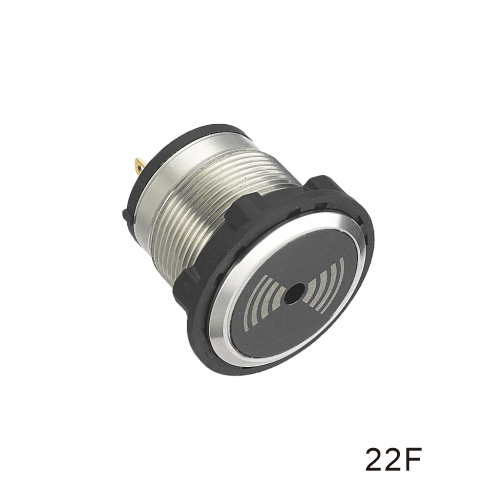

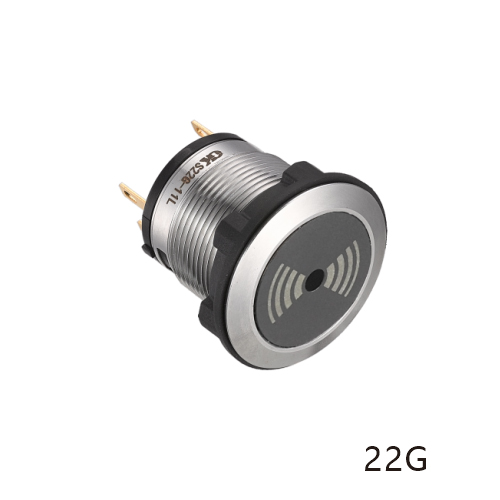

S22 Vandal resistant Buzzer Buzzer, Illuminated Buzzer
S22 Series Buzzer, an electric signaling device that makes a buzzing sound,The combination of buzzer and indicator lamp functions, waterproof specification can be used in places where water is splashed.
Features
● φ22mm
● Housing made of SUS 304 stainless steel
● High resistance to vibration and impact
● Continuous sound and intermittent sound are available
● Illuminated Buzzer are available
● Optional 85dB/1M
1
3
技术参数

Product type

Function

Buzzer, Illuminated Buzzers

Series

S22

Front

Style

Flush,Raised,Flush\wide-brimmed

From

Round

Mounting

Dimension

Φ16mm

Type

Panel Mounting

Operating /LED   part

LENS colors

Black

Illumination colors

Red

Illumination Voltage

6VACDC\12VACDC\24VACDC

Other

Terminal

Soldering terminal

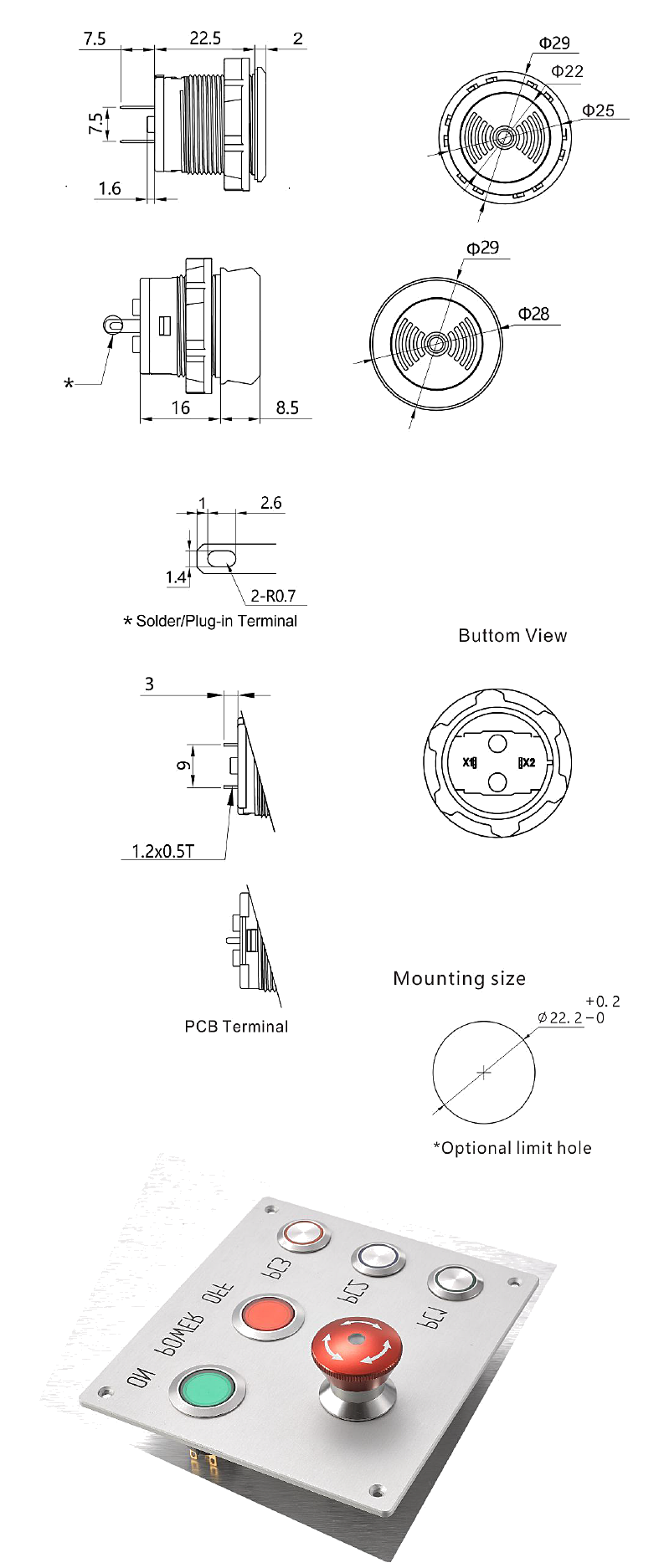

产品尺寸
S22 Vandal resistant Buzzer
资料文件
文件名称 类型 发布时间
S22 Buzzer,Buzzer with lamp .PDF 01/04/2025 下载(523.32 KB)
